Step 3: Connect Devices in Dante Controller Software
1. Download and install Dante Controller Software from http://www.audinate.com
2. Use Dante Controller to create connections with other Dante devices
Note: Refer to the Dante Controller user guide for more information on channel routing
(available at http://www.audinate.com/resources/technical-documentation)

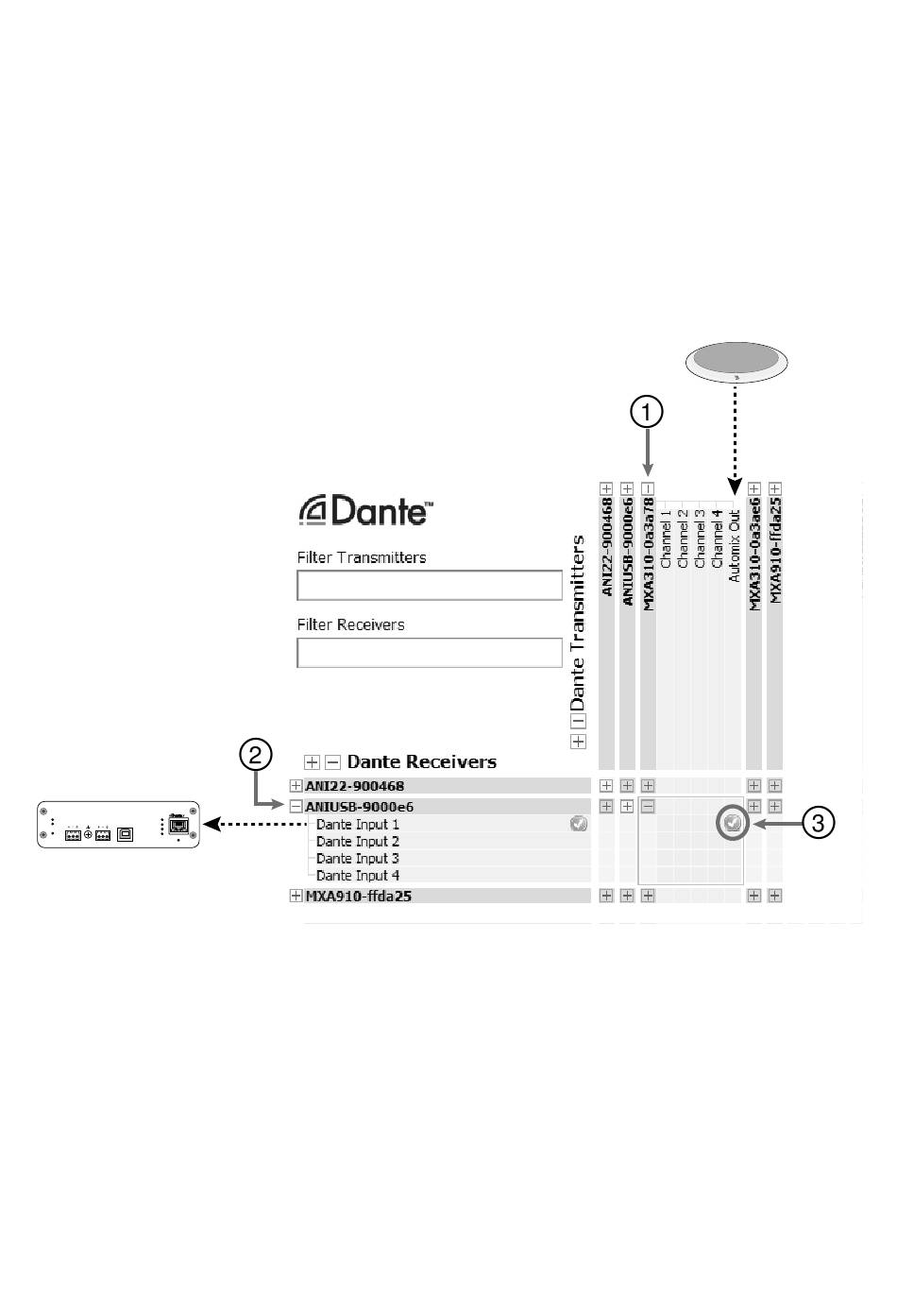

Example: Connecting the ANIUSB-MATRIX and Shure MXA310
sig/clip line in line out usb
PoE
in power
out
network
network audio
usb encryption
reset
ANIUSB-MATRIX
1. Find the MXA310 in the list of Dante transmitters, and select the plus sign (+) to show all
channels.
2. Find the ANIUSB-MATRIX in the list of Dante receivers, and select the plus sign (+) to
show all channels.
Check the box where the MXA310 AUTOMIX OUT and the ANIUSB-MATRIX DANTE
3.
INPUT 1 intersect
5
MXA310
