DEMO MANUAL DC2732A
APPENDIX E: SYNCHRONOUS MEASUREMENTS WITH CELL MONITORS
AND LTC2949

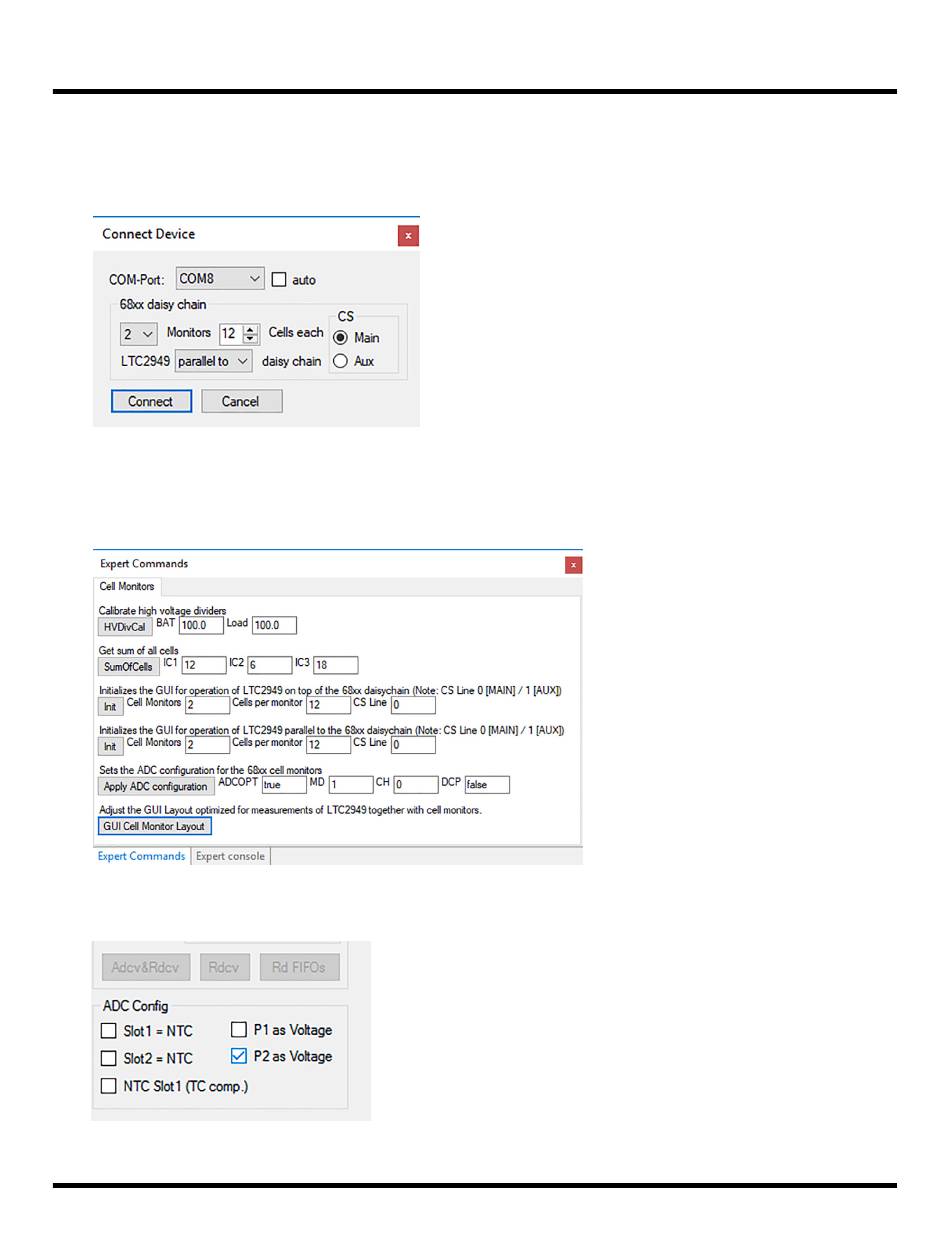

3. Click Connect.
a.
b. Note: Keep in mind to disable the termination resistor on DC2732A (JP1) in case LTC2949 is connected in parallel
to an isoSPI bus.
4. Adjust GUI Layout optimized for Cell Monitor integration (click on GUI Cell Monitor Layout within Expert
Commands window).
a.
5. Configure fast voltage and current measurements of LTC2949.
a. Enable P2 as Voltage.
b.
58
