DEMO MANUAL DC2732A
HARDWARE SETUP EXAMPLES
OPTION 4: ISOLATED ISOSPI DC2792 SETUP

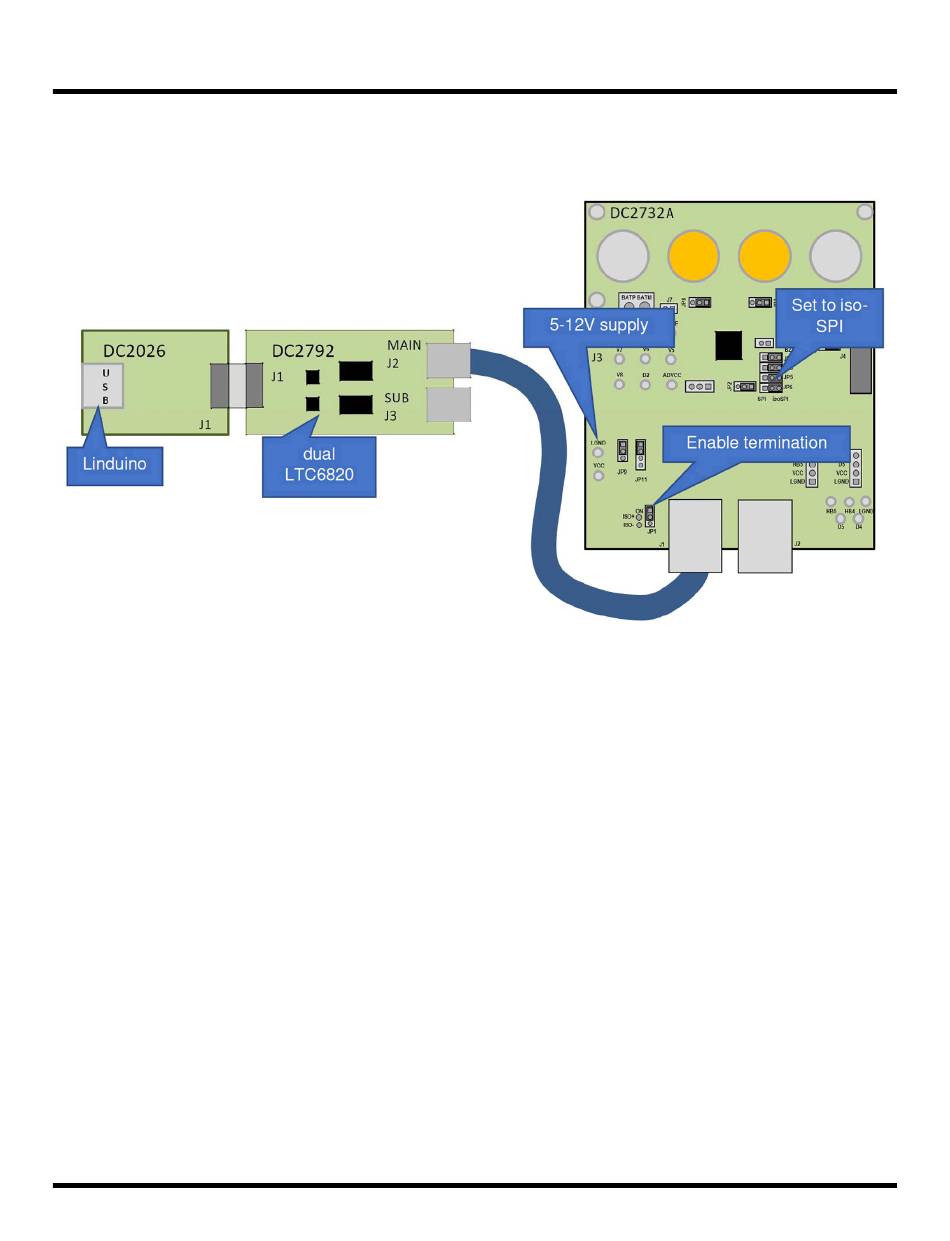

Figure 7. Isolated isoSPI Communication via Dual LTC6820 Demo Board (DC2792), Isolated Supply via Turrets V
, LGND;
CC
Note: DC2792 Can Also Be Plugged on Top of DC2026 Without Using the 14-Pin Flat Ribbon Cable
Rev. 0
13
