LTC2949 WINDOWS GUI USAGE
6. Zoom horizontally by rotating mouse wheel over
the X-Axis.
7. Zoom vertically and horizontally by rotating mouse
wheel over the plot area. This will zoom the first vis-
ible channel only.
See also Figure 26 thru Figure 28 on how to pan, zoom
and show labels.

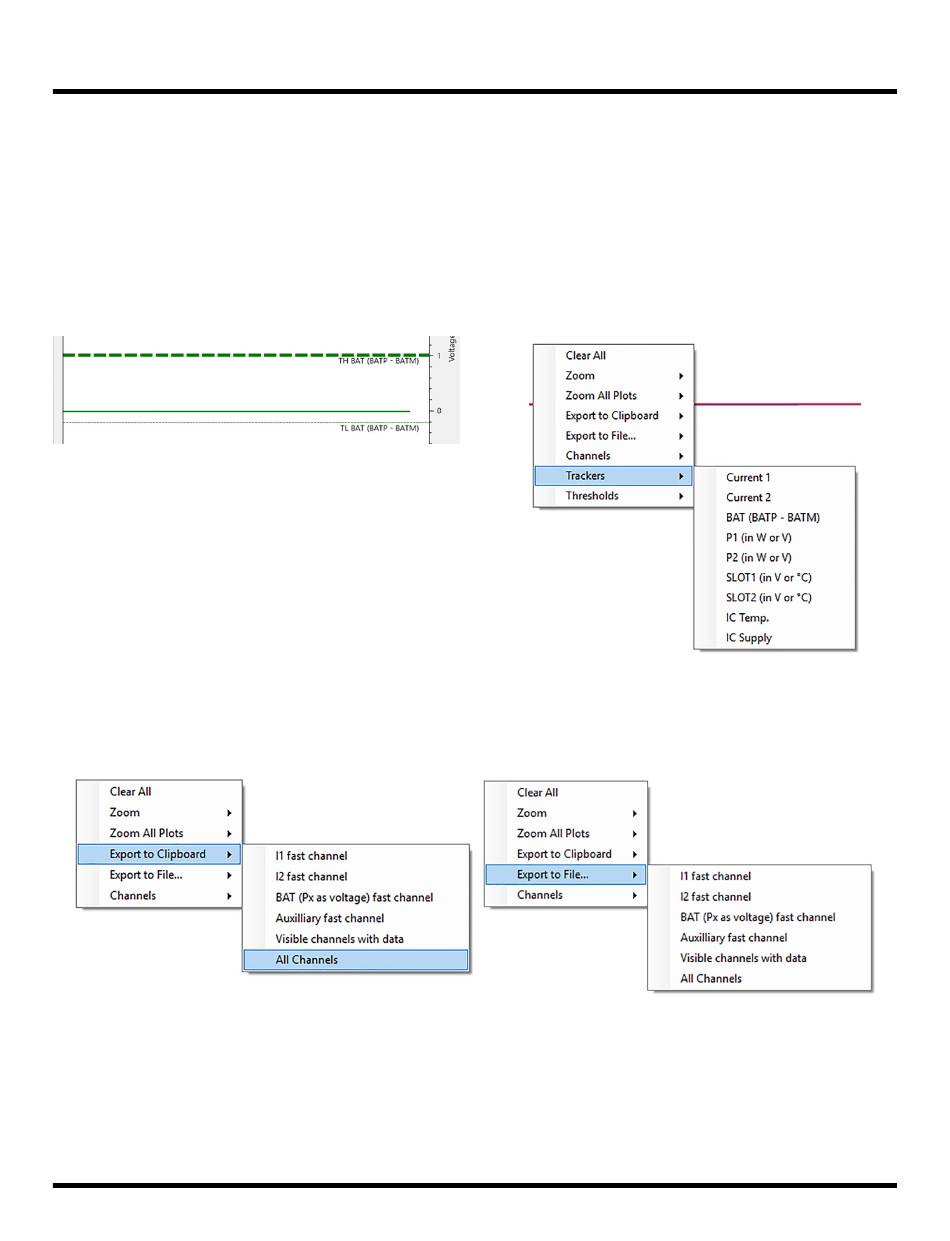

Figure 29. Voltage Plot, Dragging of TH/TL BAT Indicated by Bold
Threshold Line
DEMO MANUAL DC2732A

CHANGE THRESHOLDS ON-THE-FLY

Once the thresholds are visible, they can be dragged by
the mouse and set to a new desired value. Dragging is
indicated by a bold threshold line in the plot, see Figure 29.
The new value is written to the device immediately. The
threshold's visibility may be changed in the context sub-
menu Thresholds.
Figure 31. Plot Window Export Data
Figure 30. Plot Window Show Min/Max Trackers
