DEMO MANUAL DC2732A
HARDWARE SETUP EXAMPLES
CONNECTING A HIGH VOLTAGE BATTERY

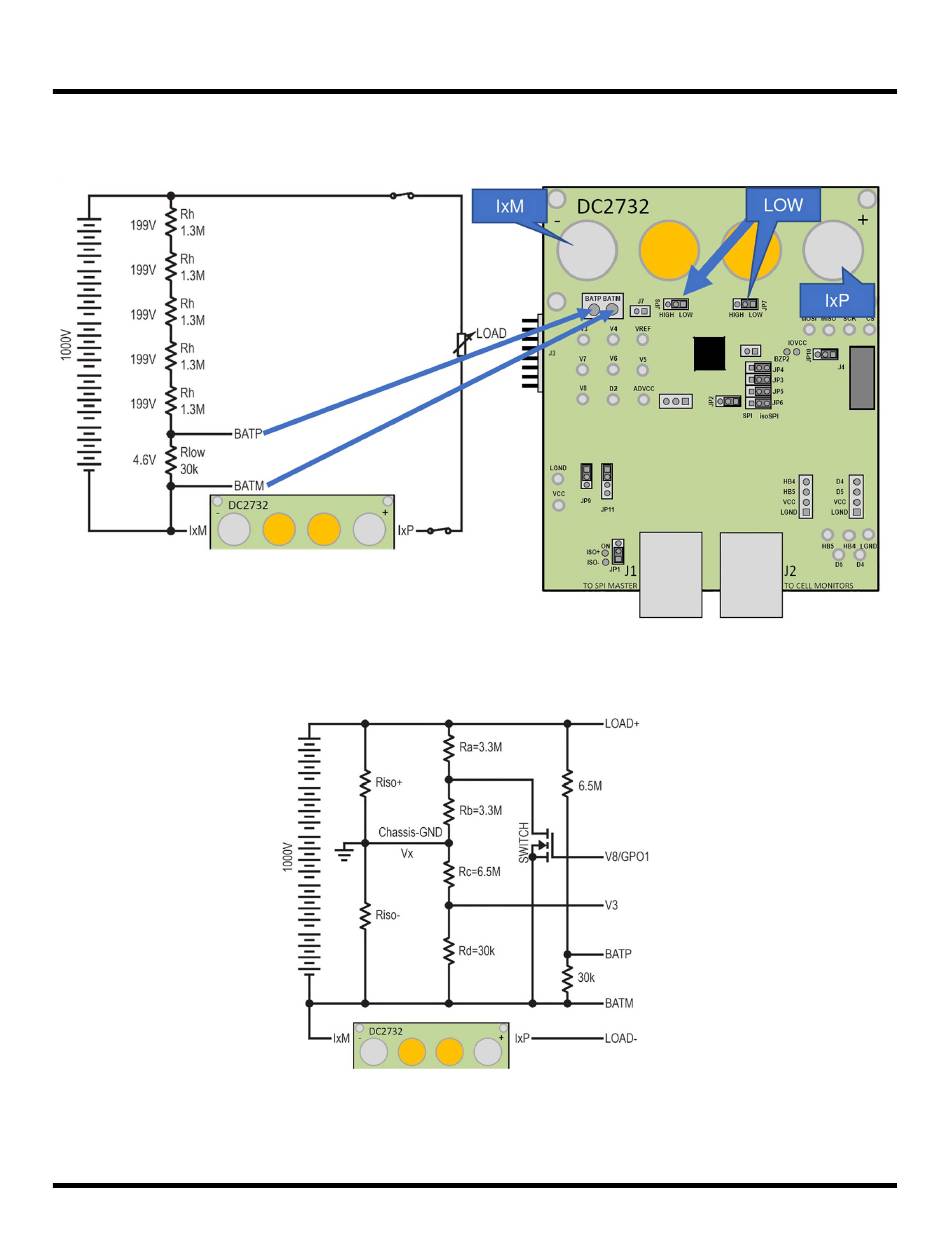

Figure 9. Connecting a High Voltage Battery with Resistive Divider to DC2732 for Low Side Current Sense Operation
Figure 10. Connecting a High Voltage Battery with Resistive Divider to DC2732 for Low Side Current Sense Operation with Chassis-
GND Isolation Measurement; See Appendix C: Isolation Measurement With LTC2949 for Operation and Calculation Details
Rev. 0
15
