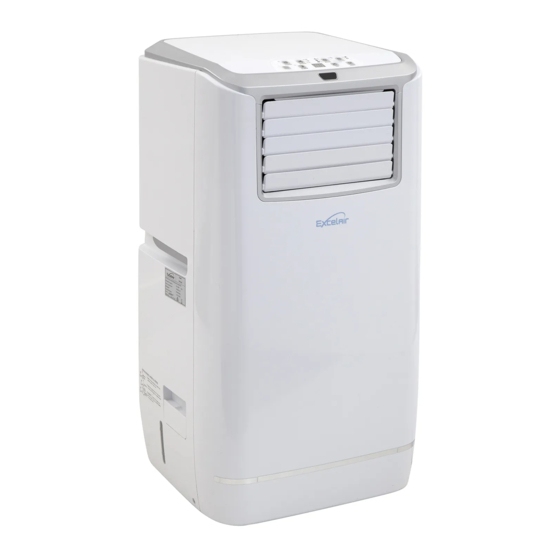

- Page 1 Portable Air Conditioner & Dehumidifier Instruction Manual for EPA14A and EPA16A ☆ Read and retain these instructions for future reference...
-
Page 2: Specification
SPECIFICATION Model no. EPA14A EPA16A Power supply 220-240V~, 50Hz 220-240V~, 50Hz Cooling capacity 3.6kW 4.0kW Power/Ampere 1350W/5.9A 1580W/7.0A consumption Compressor rotary Refrigerant R-410A Fan speed Timer 1～24 hours Working temperature 18 ~ 32 Exhaust pipe Ø 150 x 1500 mm Net Weight 33.5 kg 34 kg... -
Page 3: Before Use
BEFORE USE FOR INDOOR USE ONLY. DO NOT USE IN CABINET, CLOSET, BOATS, CARAVANS OR SIMILAR LOCATIONS. LEAVE THE UNIT TO STAND FOR 12 HOURS BEFORE CONNECTING TO THE MAINS SUPPLY AFTER TRANSPORT OR WHEN IT HAS BEEN TILTED (E.G. DURING CLEANING). ONLY USE IN THE UPRIGHT POSITION ON A FLAT LEVEL SURFACE AND AT LEAST 50cm FROM ANY OBJECTS DO NOT USE THE UNIT IN A POTENTIALLY EXPLOSIVE ENVIRONMENT CONTAINING... - Page 4 BEFORE USE DO NOT USE EXTENSION CORDS. IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY AN ELECTRICIAN OR SIMILARLY QUALIFIED PERSON. THE MAINS SUPPLY MUST CONFORM TO THE SPECIFICATION SHOWN ON THE RATING PLATE AT THE BACK OF THE UNIT. THE APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH NATIONAL WIRING REGULATIONS.
- Page 5 PARTS Front Back FIG.5 FIG.6 Control Panel Air filter (air inlet) Remote control receiver Cord compartment Air vent Exhaust air outlet Carrying handle 10. Drainage knob / drainage point Water gate (for energy saving) 11. Air filter (air inlet) See-through window for water 12.
-
Page 6: Installation
INSTALLATION The unit is a portable air conditioner that may be moved from room to room. 1. Using the extendable slide Extendable slide Window kit FIG.8 • Offer window spacer to the window gap and adjust the length as you need. •... - Page 7 • Use only the hose provided and clip exhaust hose and unit adaptor to the back of the air conditioner FIG.11 • Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut down.
- Page 8 Installation of the carbon filter FIG.15 Remove the filter frame from the unit. Separate the filter fixer from the filter frame. Remove the active carbon filter from its plastic bag. Insert the active carbon filter into the filter frame. Fix the filter by reassembling the fixer onto the filter frame.
-
Page 9: Operation
OPERATION Control panel FIG.17 TIMER button 1. Timer indicator SPEED (ventilation) button 2. High fan speed indicator MODE button 3. Medium fan speed indicator ON/OFF (POWER) button 4. Low fan speed indicator IONIZER / TiO2 button (only for the 5. AUTO mode indicator model with ionizer/TiO2 function) 6. - Page 10 Adjust the air vent Before using the unit, please do open the horizontal louver! FIG.18 Adjust the louvers to your desired direction FIG.19 Turning ON/OFF Press ON/OFF button, the unit will start in AUTO (automatic) mode. Automatic mode In automatic mode, the unit can cool or ventilate depending on ambient temperature and setpoint adjustment.
- Page 11 cooling ventilatio °C Time Setting mode/function Press MODE button to select required working mode: cooling, fan or dehumidify (dry) Sign of your selected mode comes on. Setting temperature Press 'Temperature up' or 'Temperature down' button to regulate the temperature you desired. The display window will show the temperature you set as you press 'Temperature up' or 'Temperature down' button.
- Page 12 In sleep mode, the ventilation will keep at low speed. Re-press the SLEEP button, the setting temperature and ventilation speed will return to the pre-selected one. The unit will shut down automatically after the SLEEP function running for 12 hours. Please note, the sleep function is not available while the machine is working in ventilation, dehumidification or auto mode.
- Page 13 FIG.21 1. Open the 3. Place the water 2. Fill the water (max. water gate gate into space 2.5L) please pay attention on the water level of the see-through window beneath the water gate. NOTE This efficiency feature by adding water is proposed to do after one hour operation and the water should NOT be over 2.5L, otherwise, the “water full”...
- Page 14 Turn off the air conditioner and avoid moving it when full. 2. Position a container (a water tray for example) underneath the drain hole. 3. Remove the drain knob & rubber plug from the drain hole and allow the water to drain out. FIG.22 When the container is almost full, replace the rubber plug in the drain hole and empty the...
-
Page 15: Maintenance
MAINTENANCE Always unplug the air conditioner from the mains before cleaning. To maximize the efficiency of the air conditioner, clean the unit regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. -
Page 16: Fault Check List
FAULT CHECK LIST The air conditioner does not run Ÿ Is the air conditioner plugged in? Ÿ Is there a power failure? Ÿ Is the ‘full water’ indicator flashing? Ÿ Is the room temperature below the set temperature? The machine seems to do little Ÿ... - Page 17 For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8am - 5pm EST IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE USE. Excel is a trademark of Sitro Group Australia www.excelsiorproducts.com.au...
