INSTALL HARDWARE
22
3.

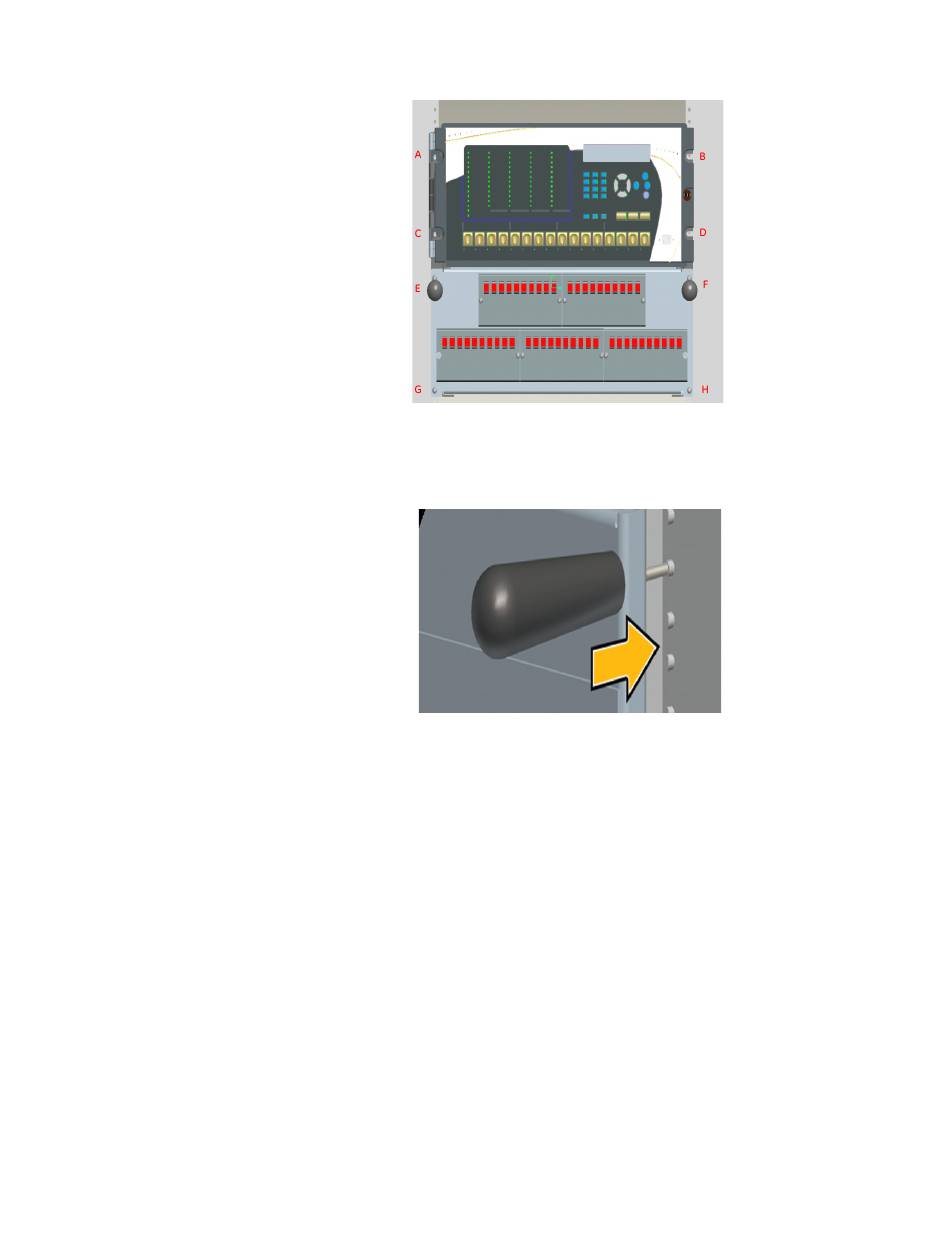

As shown in Figure 22, insert the two pins of the installation tools into the marked
holes on the 19-inch rack. Leave the installation tools inserted.
Figure 22: Insert the installation tool pins in the rack
4.
Check that the other mounting holes of the DGPR align with the holes in the rack.
5.
Install four screws in holes A, B, C, and D.
6.
Remove the installation tools, and install two screws in holes E and F.
7.
Apply two nuts in locations G and H.
8.
Install the two screws for the Lexan cover on the test switch faceplate, as shown in
Figure 23.
Figure 21: DGPR mounting holes
MULTILIN DGPR – INSTRUCTION MANUAL
CHAPTER 3: INSTALLATION
