Summary of Contents for VIGO VG02002

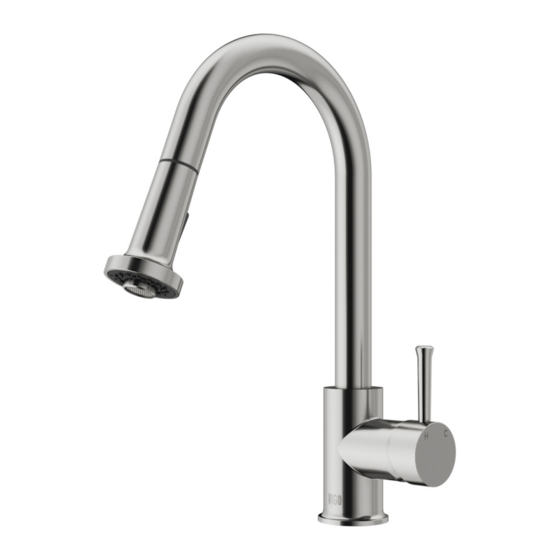

- Page 1 FAUCET SPECIFICATIONS Pull-Down Spray Kitchen Faucet Model VG02002 MODEL VG02002 FEATURES PACKING LIST DIMENSIONS MODEL # HOLE FAUCET SPRAYER DIAMETER HEIGHT REACH VG02002 1 3/8" 15 1/8" 8 1/2" 8 1/2" 1 3/8" NOTE: All faucets are compliant to CEC 2016 regulations.
-
Page 2: Side View
EXPANDABLE UP TO 30" FUNCTION BUTTON 8 1/2" SIDE VIEW SPRAY HOSE FRONT VIEW TOP VIEW VG02002 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 3/8"... - Page 3 Doing so will remove the ability for the product to meet certain low flow standards. Please talk to your local or statewide plumbing enforcement agency prior to modifying. Vigo is not responsible for any alterations and the affects that may come with altering the product post sale and highly advises that the client only install the product that meets the needs of their local plumbing code.
-
Page 4: Package Content
VIEW THE CONNECTIONS AT THE MALE AND FEMALE FLEXIBLE HOSE CONNECTIONS. IF LEAKS ARE DETECTED, REFER BACK If you have any questions please contact the Vigo Technical Support TO THE INSTRUCTIONS AND ADJUST ACCORDINGLY. Department before proceeding with installation. -
Page 5: Troubleshooting
5.A - Remove and clean aerator. 5.B - Contact Vigo Technical Support for replacement. PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support PART PART # FINISH SUPPLY DATE INDICATOR (INTERNAL USE ONLY) - Page 6 VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
