TP-Link TL-SF1008LP Installation Manual

Installation Guide
Unmanaged Desktop PoE/PoE+ Switch
Switches Explanation
Note: The numbers in brackets indicate the ports where the feature takes effect. For example, when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.
Extend
(for TL-SF1008LP/TL-SF1008P/TL-SF1009P)
Off: Ports run at 10/100 Mbps and support PoE power supply up to 100 m away.
On: Ports run at 10 Mbps and support PoE power supply up to 250 m away.
Priority
(for TL-SF1008LP/TL-SF1008P/TL-SF1009P)
Off: All the ports transmit data with the same priority.
On: The specific ports transmit data with a higher priority than other ports.
Note: For simplicity, we will take TL-SF1008P for example throughout the Guide.

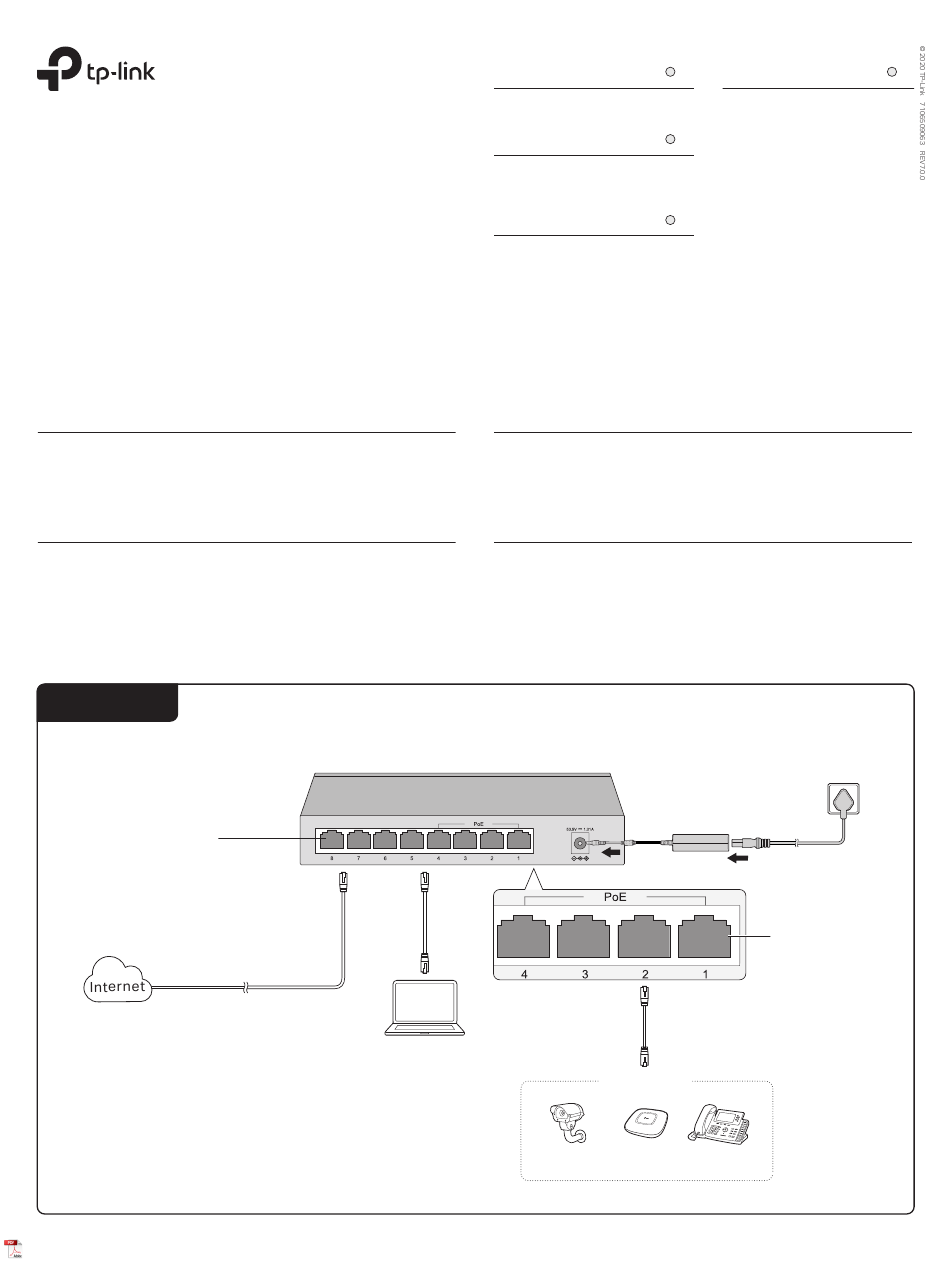

Connection
Ethernet Ports (1-8)
Note:
PoE ports can also connect to non-PoE devices, but only transmit data.
LED Explanation
Power
On: Power on
Off: Power off
PoE Status
On: PoE power provided
Flashing: Current-overload/ Short-circuit
Off: No PoE power provided
Link/Act
On: Link present but no activity
Flashing: Transmitting/receiving data
Off: No link
Recovery
(only for TL-SF1008P)
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD).
When the switch finds that the PD works abnormally, the switch will reboot it.
Isolation
(only for TL-SF1009P)
Off: Ports can transmit data with each other.
On: Downlink ports cannot transmit data with each other. They can transmit data only with
the uplink port.
PC
IP Camera
PoE MAX
Power
TL-SF1008LP
On: 34 W ≤ Total power supply < 41 W
Flashing: Total power supply = 41 W
Off: Total power supply < 34 W
PoE Status
TL-SF1008P
On: 59 W ≤ Total power supply < 66 W
Flashing: Total power supply = 66 W
Off: Total power supply < 59 W
Link/Act
TL-SF1009P
On: 58 W ≤ Total power supply < 65 W
Flashing: Total power supply = 65 W
Off: Total power supply < 58 W
DC Power Adapter
AC Power Cord
PoE Ports (1-4)
PoE Devices
AP IP Phone
PoE MAX
