NRS Healthcare F18864 User Instructions

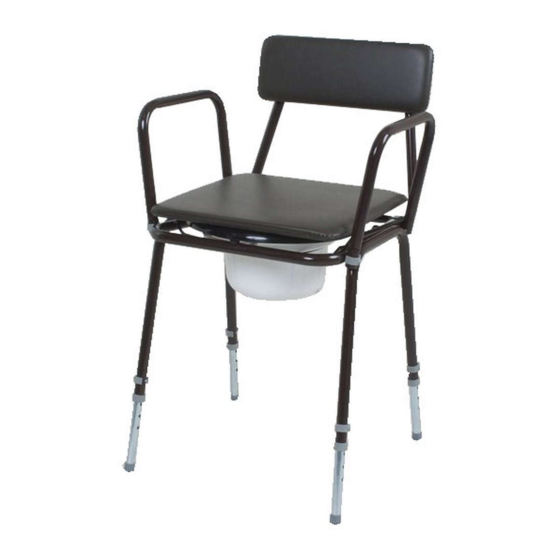

F18864 Commode with Fixed Arms
General Safety Warning
Please make sure that you read and follow
these instructions carefully. Keep these
instructions in a safe place for future reference.
1. INTENDED USE
The Dovedale commode range has been designed to assist those who have diffi culty in accessing or using
a standard toilet. All Dovedale commodes have a hinged plastic toilet seat, commode pan with lid and vinyl
lift off vanity cover.
F18864
Adjustable Height
Fixed Arms
2. SAFETY
Warning: Do not exceed the maximum user
weight of 180kg (20st).
YOU MUST inspect the commode frame and fi xings
at regular intervals for wear and damage. If damage
is found, stop using the commode and contact your
supplier immediately for advice.
DO NOT use the vinyl vanity cover as a seat, it
should only be used as a cover.
DO NOT lean backward, this can cause the commode
to tip over.
MAKE SURE all legs are all at the same height.
3. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
USER INSTRUCTIONS
DOVEDALE HEIGHT ADJUSTABLE
COMMODE RANGE
F19455
Adjustable Height
Detachable Arms
F19455 Commode with Removable Arms
Maximum User Weight
4. IN USE
Note: Check that the commode pan is fully secure
before use.
Remove the vanity cover to use commode.
Remove, clean and dry the commode pan after use
in accordnace with section 4.4.
Replace the vanity cover onto the toilet seat to
conceal the commode pan.
4.1 Adjusting the Height
Note: You should remove the vanity cover and
commode pan before adjusting the height.
To adjust the commode height, remove the E-clips,
then slide each leg to the required height.
Align the adjustment holes and replace the E-clips.
Note: Make sure that all legs have been adjusted to
the same height before use.
4.2 Detatch the Arms for Transfer (F19455)
Use both hands to press in the spring buttons on
each end of the arm.
1
28st
180kg
