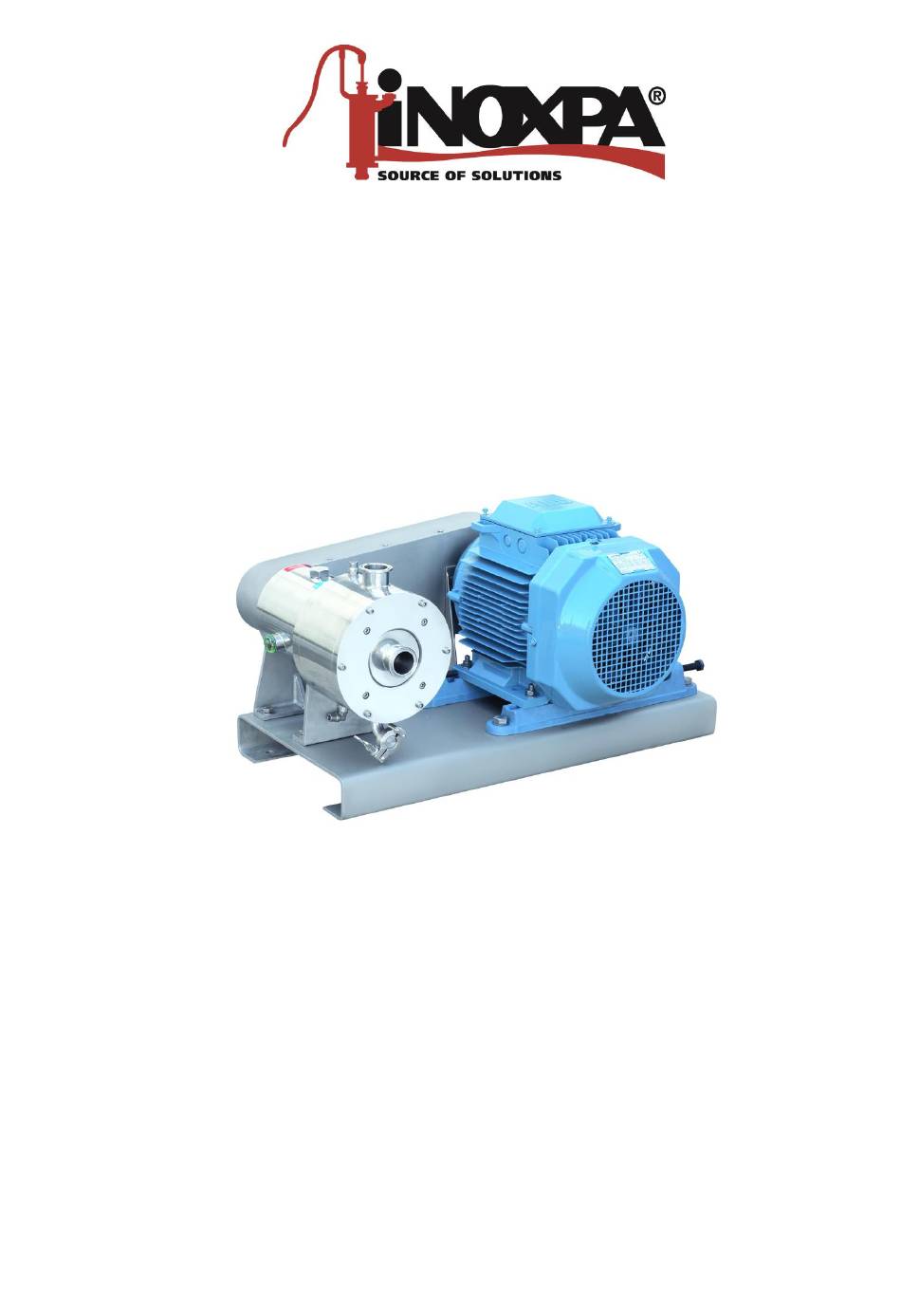

- Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS MULTITOOTH MIXER 875X-892X SERIES INOXPA, S.A. c/Telers, 54 Aptdo. 174 E-17820 Banyoles Girona (Spain) Tel.: (34) 972 - 57 52 00 Fax.: (34) 972 - 57 55 02 Email: inoxpa@inoxpa.com www.inoxpa.com Original Manual MIME800X_EN (A) 2022/07...
- Page 2 EC Declaration of Conformity The manufacturer: INOXPA, S.A. c/ Telers, 57 17820 Banyoles (Girona), Spain herewith declares that the machine: ME-875X / ME-895X Multi-tooth mixer with the serial number: ________________ conforms to the relevant provisions of the following directives: Machinery Directive 2006/42/EC (RD 1644/2008)
-
Page 3: Safety
Danger! Suspended loads equipment. Commitment to safety at the workplace. Protective goggles requirement. 1.4. GENERAL SAFETY INSTRUCTIONS Read this instructions manual carefully before installing and starting the mixer. Contact INOXPA in case of doubt. 1.4.1 During installation Technical Specifications of Chapter 8 should always be observed. - Page 4 The use of other parts will exempt the manufacturer from any liability. The service terms can only be changed with prior written authorisation from INOXPA. Please do not hesitate to contact us in case of doubts or if more complete explanations are required on specific data (adjustments, assembly, disassembly, etc.).
-
Page 5: Table Of Contents
2. Contents Safety 1.1. INSTRUCTIONS Manual ....................3 1.2. Start-up instructions ...................... 3 1.3. Safety .......................... 3 1.3.1 Warning symbols ......................3 1.4. GENERAL SAFETY INSTRUCTIONS .................. 3 Contents General information 3.1 Description ........................7 OPERATING Principle ....................7 Application ......................... 7 Hygiene ........................ -
Page 6: Contents
CROSS-SECTION WITH ME-892X MIXER BASEPLATE ............ 22 ME-892X MIXER CROSS-SECTION ................23 ME-892X MIXER PARTS LIST ..................24 2.Contents (A) 2022/07... -
Page 7: General Information
• Speed can be adjusted using a frequency converter; the rotor/stator gap can be adjusted using the gauges (supplied by Inoxpa), and the viscosity can be adjusted with the formula or temperature. 3.3 APPLICATION Inline mixers are suitable for particle reduction processes, dissolution, dispersion, and emulsion. Given their hygienic design, these mixers are suitable for industries as demanding as cosmetics, food-processing, and pharmaceutical industries. -
Page 8: Installation
4. Installation 4.1 RECEIPT OF THE MIXER INOXPA cannot be held responsible for the damage to the equipment during transport or unpacking. Visually check that the packaging is not damaged. The mixer will be accompanied by the following documents: •... -
Page 9: Location
4.3 LOCATION • Place the mixer as close as possible to the suction tank, and if possible below the fproduct level. • Place the mixer so as to allow sufficient space around it to access the mixer and the motor. (See Chapter 8 Technical Specifications for dimensions and weight). -
Page 10: Start-Up
5.1 START-UP Read Chapter 8 Technical Specification thoroughly. INOXPA cannot be held responsible for the incorrect use of the equipment. NEVER touch the mixer or the pipes when hot product is being pumped. Do not start up the mixer if the belt protections are not in place. -
Page 11: Operating Problems
The following table provides solutions to problems that might arise during mixer operation. The mixer is assumed to have been properly installed and correctly selected for the application. Please contact INOXPA if technical assistance is required. Operating Problems Probable causes Motor overload 8, 12. -
Page 12: Maintenance
7. Maintenance 7.1 GENERAL INFORMATION Like any other machine, this mixer requires maintenance. The instructions contained in this manual cover the identification and replacement of spare parts. The instructions have been prepared for maintenance personnel and for those responsible for the supply of spare parts. -
Page 13: Tightening Torque
To remove any remains of cleaning products, ALWAYS perform a final rinse with clean water on completion of the cleaning process. 7.2.2 Automatic SIP (sterilization-in-place) The process of sterilization with steam is applied to all the equipment including the pump. Do NOT start the pump during the process of sterilization with steam. - Page 14 Remove the Allen screws (51B in 875X or 51A in 892X) fastening the housing cover (02) to the housing (01). Remove the housing cover assembly (03), spacer washer (35), stator (22), and O-ring (80B), and to this end, place two of the Allen screws (51B in 875X or 51A in 892X) in the threaded openings of the housing cover (03).
- Page 15 CAUTION! When placing the new seal, take care to assemble the parts and seals using soapy water to ensure that these slide over each other, including the stationary part and the rotary part. Insert the rotor (21) over the shaft (05) lining up the fittings of the rotor and shaft. Place the seal (80C) on the nut (45) and screw the nut onto the shaft (05) while preventing the pulleys from turning.
-
Page 16: Technical Specifications
8. Technical Specifications 8.1 TECHNICAL SPECIFICATIONS ME-875X ME-892X Maximum output ............../h * /h * Maximum differential pressure ..........1 bar (14.5 PSI) 1 bar (14.5 PSI) Maximum suction pressure ............. 3 bar (43.5 PSI) 3 bar (43.5 PSI) Operating temperature ............-10ºC to +100ºC (EPDM) -10ºC to +100ºC (EPDM) 57ºF to 212ºF (EPDM) -
Page 17: Dimensions
8.3 DIMENSIONS 8.3.1 ME-875X MIXER DIMENSIONS TYPE ME-875X 1” 1” ¾” 467.5 8.3.2 ME-892X MIXER DIMENSIONS TYPE ME-892X 1 ½” 1 ½” ¾” Dimensions with CLAMP connections I = coolant inlet (8x6 pipe) O = coolant outlet (8x6 pipe) (A) 2022/07 8.Technical Specifications... -
Page 18: Cross-Section With Me-875X Mixer Baseplate
8.4 CROSS-SECTION WITH ME-875X MIXER BASEPLATE 8.Technical Specifications (A) 2022/07... -
Page 19: Me-875X Mixer Cross-Section
8.5 ME-875X MIXER CROSS-SECTION (A) 2022/07 8.Technical Specifications... -
Page 20: Me-875X Mixer Parts List
8.6 ME-875X MIXER PARTS LIST Position Description Quantity Material Housing AISI 316L Body cap AISI 316L Shaft AISI 316L Bearing support AISI 304 Housing leg AISI 304 Non-vibratory foot Mechanical seal Graph/silicon/EPDM Seal cover AISI 316L Seal cooling flange AISI 316 Bearing casing AISI 304 Front bearing cover... - Page 21 Position Description Quantity Material Retainer Retainer Clamp AISI -316 Clamp gasket EPDM Clamp blind bushing AISI 316 Elbow connector AISI 316 Connector AISI 316 Motor Driven pulley GG-18 104A Driven pulley GG-18 Belts (A) 2022/07 8.Technical Specifications...
- Page 22 8.7 CROSS-SECTION WITH ME-892X MIXER BASEPLATE 8.Technical Specifications (A) 2022/07...
- Page 23 8.8 ME-892X MIXER CROSS-SECTION (A) 2022/07 8.Technical Specifications...
- Page 24 8.9 ME-892X MIXER PARTS LIST Position Description Quantity Material Housing AISI 316L Body cap AISI 316L Shaft AISI 316L Bearing support AISI 304 Motor-side leg AISI 304 Housing-side leg AISI 304 Non-vibratory foot Mechanical seal Graph/silicon/EPDM Seal cover AISI 316L Seal cooling flange AISI 316 Bearing casing...
- Page 25 Position Description Quantity Material Elbow connector AISI 316 Connector AISI 316 Motor Driven pulley GG-18 104A Driven pulley GG-18 Belts (A) 2022/07 8.Technical Specifications...
- Page 26 In addition to our branch offices, INOXPA operates with an independent distributor network which encompasses a total of more than 50 countries throughout the world. For more information consult our web page: www.inoxpa.com This information is a guideline only. We reserve the right to modify any material or characteristic without prior notice.
