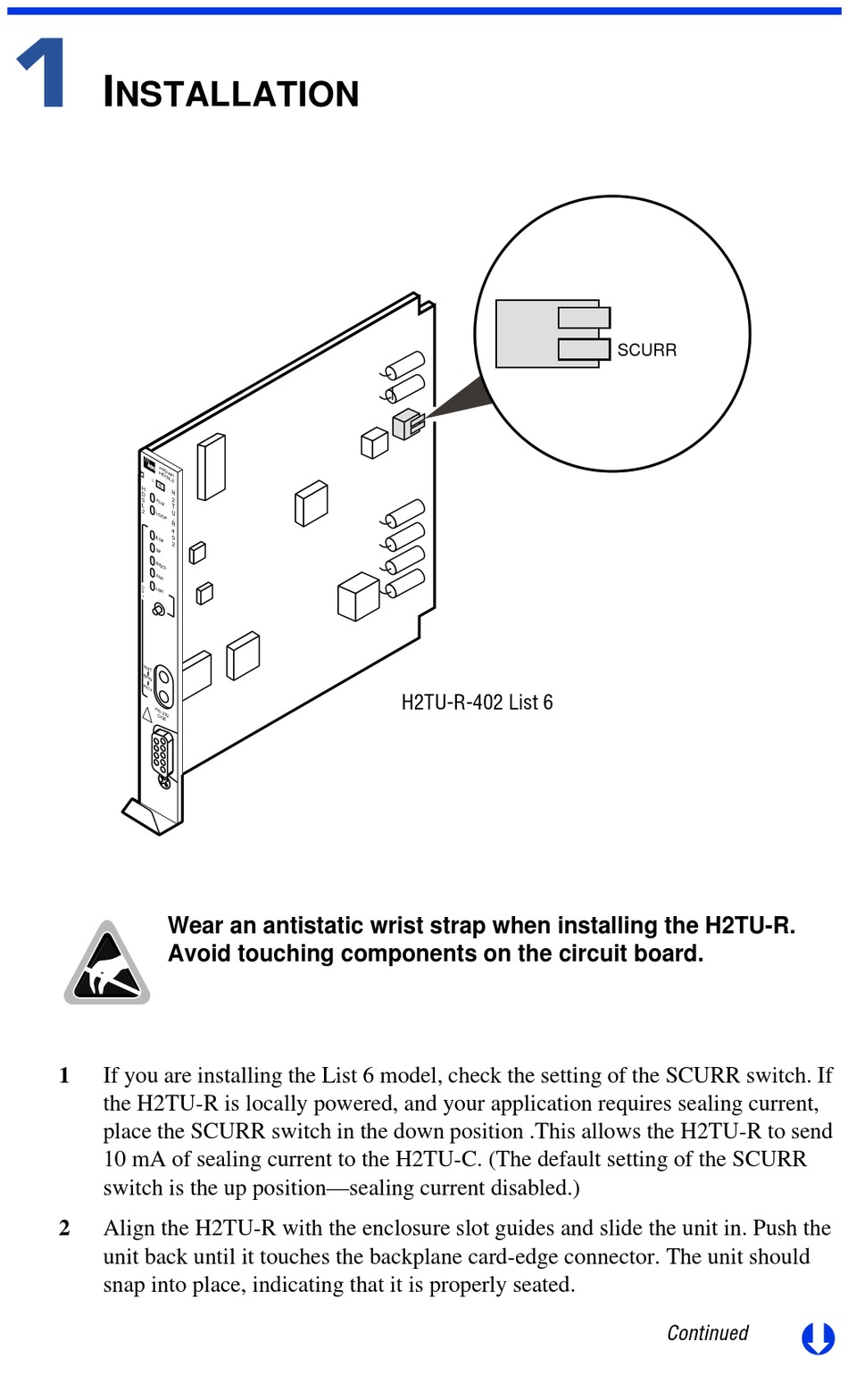

ADC HiGain H2TU-R-402 List 6 Quick Installation page 2

I
NSTALLATION
H i
G a
H D
i n
S L
2
L
6
H
H
D
S 2
A L
M
L T
2
U
L O
O P .
R
4
0
E S
F
2
S F
B 8
Z S
A M
I
D
L B
K
S
1
X M
T
B R
G
R C
V
R S
- 2 3
2
D C
E
Wear an antistatic wrist strap when installing the H2TU-R.
Avoid touching components on the circuit board.
1 If you are installing the List 6 model, check the setting of the SCURR switch. If
the H2TU-R is locally powered, and your application requires sealing current,
place the SCURR switch in the down position .This allows the H2TU-R to send
10 mA of sealing current to the H2TU-C. (The default setting of the SCURR
switch is the up position—sealing current disabled.)
2 Align the H2TU-R with the enclosure slot guides and slide the unit in. Push the
unit back until it touches the backplane card-edge connector. The unit should
snap into place, indicating that it is properly seated.
H2TU-R-402 List 6
SCURR
Continued
Þ
