- Page 1 HiGain HiGain UICK NSTALLATION HiGain HDSL2 LOOP B8ZS H2TU-R-402 1B (L OCAL OR OWER 1C (L OWER EMOTE RS-232...

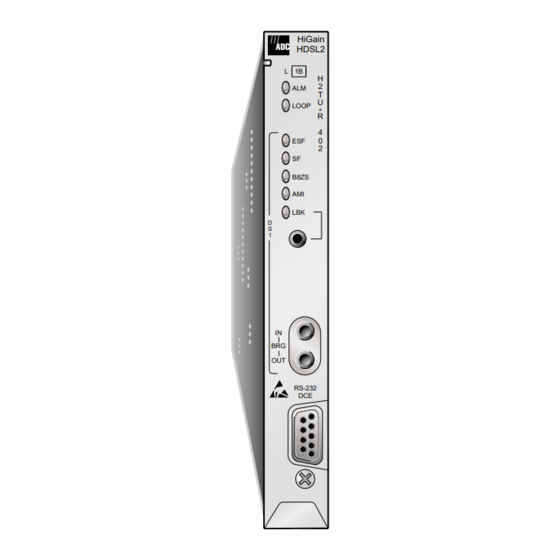

- Page 2 H2TU-R-402 L The HiGain H2TU-R-402 List 1B and List 1C remote units are the customer premises side of a repeaterless T1 transmission system. The system provides 1.544 Mbps transmission of a T1 payload on one unconditioned pair over the full Carrier Service Area (CSA) range.
- Page 3 NSTALLATION - 2 3 H2TU-R-402 List 1B Wear an antistatic wrist strap when installing the H2TU-R. Avoid touching components on the circuit board. If you are installing the List 1B model, check the setting of SCURR jumper P1. If the H2TU-R is to be locally powered, and your application requires sealing current, install the SCURR jumper in the SCURR position.
- Page 5 P erformance E vent Log C onfig I nventory Rep o rt R logon H elp Monitor +------------------------------------------+ ADC DSL Systems, Inc. HiGain HDSL2 Voice: 800.638.0031 714.832.9924 +------------------------------------------+ ID: xxxx--xxxx--xxxx—-xxxx 10/15/2001 12:30:01 H2TU-R System: OK___...
- Page 6 Glossary, a list of navigational keys, and ADC contact information. Initial provisioning of the HiGain HDSL2 system is performed at the H2TU-C line unit. For more information, refer to the technical practice for the H2TU-C. It can be downloaded from the ADC web site at www.ADC.com. OOPBACK ESTING Initiate loopback testing from the maintenance terminal menus or by using inband codes.
- Page 7 © 2001 ADC DSL Systems, Inc. All rights reserved. Information contained in this document is company private to ADC DSL Systems, Inc., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of ADC.
