ADC H2TU-R-402 List 5F Quick Installation

Remote unit
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
HiGain
HiGain
Q
I
UICK
NSTALLATION

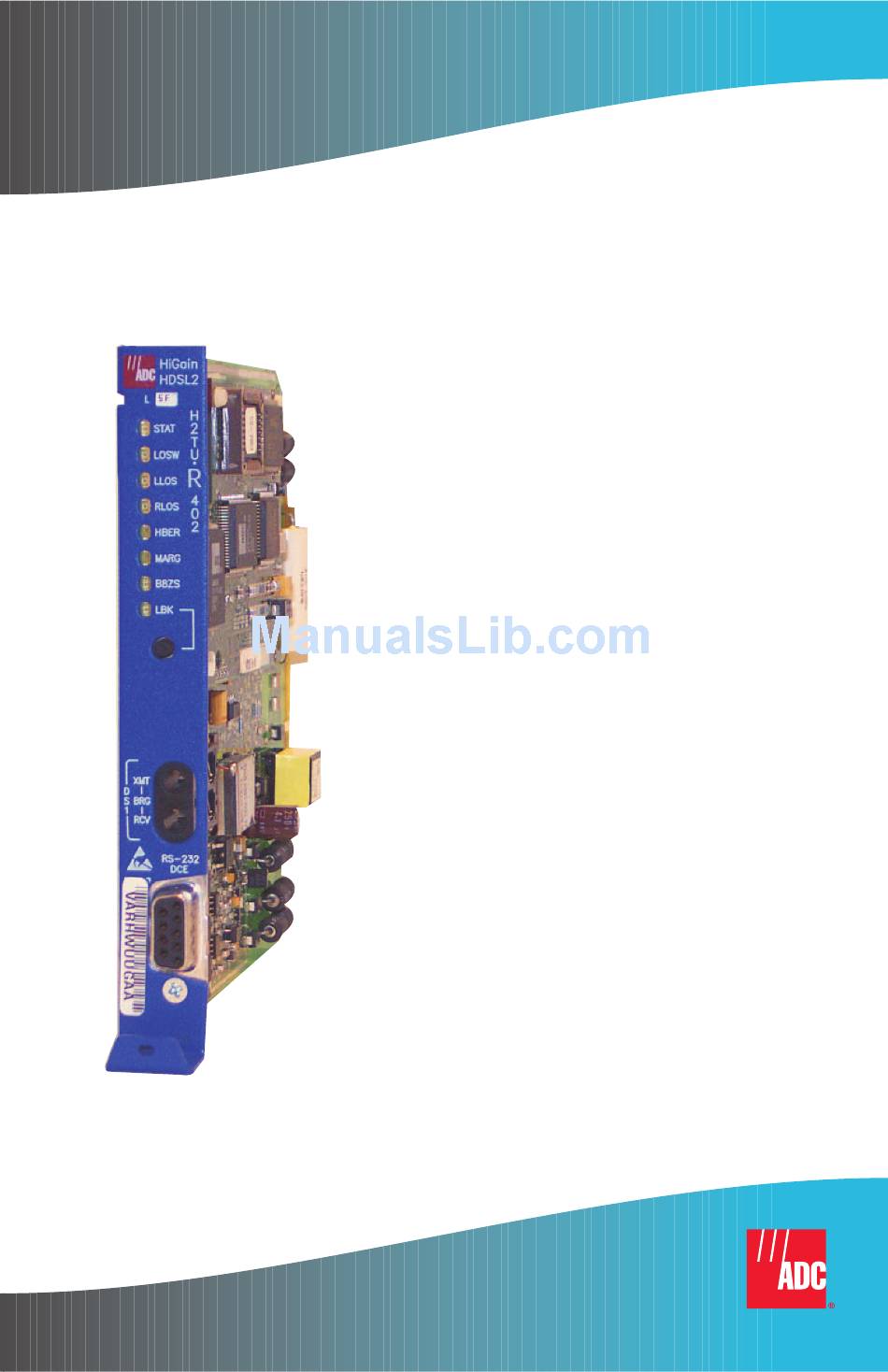

H2TU-R-402 L
5F
IST
R
U
EMOTE
NIT

Advertisement

loading

Related Manuals for ADC H2TU-R-402 List 5F

Summary of Contents for ADC H2TU-R-402 List 5F

  • Page 1 HiGain HiGain UICK NSTALLATION H2TU-R-402 L EMOTE...

  • Page 2: Specifications

    H2TU-R-402 L The H2TU-R-402 List 5F (H2TU-R) functions as the remote end of a repeaterless T1 ® transmission system when connected to a HiGain HDSL2 line unit (H2TU-C). Setting new standards for interoperability and efficiency, HiGain HDSL2 modules transmit 1.544 Mbps T1 payload on one unconditioned copper pair over the full Carrier Service Area (CSA) range.

  • Page 3: Installation

    NSTALLATION Remote enclosure H2TU-R-402 Wear an antistatic wrist strap when installing the H2TU-R. Avoid touching components on the circuit board. Align the H2TU-R with the enclosure slot guides and slide the unit in until it touches the backplane card-edge connector. Place your thumbs on the H2TU-R front panel and push the unit into the card-edge connector.
  • Page 5 H2TU-C. Once logged on, you can view system settings and inventory, initiate loopbacks, monitor performance, and configure the circuit. Monitor Performance Event Log Config Inventory Report Rlogon Help +------------------------------------------+ ADC DSL Systems, Inc. HiGain HDSL2 Voice: 800.638.0031 714.832.9924 +------------------------------------------+ ID: xxxx--xxxx--xxxx--xxxx 04/11/2002 06:38:12 H2TU-C System: OK...
  • Page 6 For more information about the HiGain HDSL2 maintenance screens, refer to the user manual of the H2TU-C line unit. Copies of user manuals can be downloaded from the ADC website at www.adc.com. To order a hard copy, please contact your sales representative.
  • Page 7 Service for details. Modifications Any changes or modifications made to this device that are not expressly approved by ADC DSL Systems, Inc. voids the user's warranty. All wiring external to the products should follow the provisions of the current edition of the National Electrical Code.
