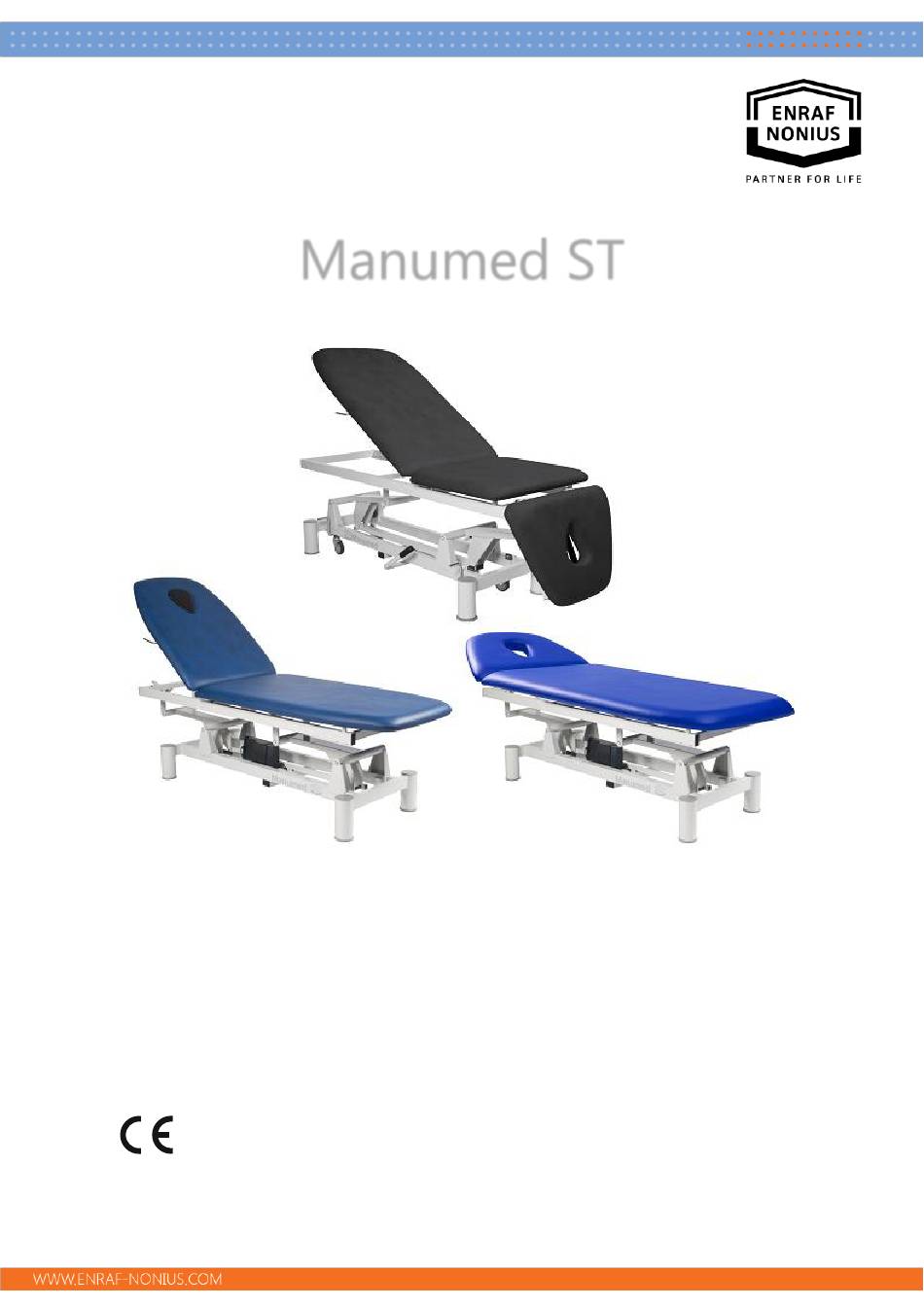

- Page 1 Manumed ST EN109-1560750-44 4, 2022 PRIL Instructions for use...
-
Page 2: Table Of Contents
Table of contents Introduction ..............................3 Symbols ................................3 Package contents ............................4 Installation ................................. 5 Intended use and intended user ....................... 5 Precautionary instructions ........................... 6 Operation ................................7 Safety instructions ............................9 Cleaning, maintenance and troubleshooting ..................10 10 Specifications .............................. -
Page 3: Introduction
During development and production of this Manumed ST a great deal of care was put into the reliability, safety, ease of use and durability. It is important to read the following instructions carefully before using your Manumed ST treatment couch properly and safely. -
Page 4: Package Contents
Manumed ST Standard accessories 1x 1560750 Instructions for Use 1x 0167329 Information sheet disinfection of upholstery Ordering data For the ordering data of the Manumed ST, standard accessories and optional accessories we refer to www.enraf-nonius.com. Page 4 of 14 EN109-1560750-44... -
Page 5: Installation
Intended user The Manumed ST treatment couches are intended to be used, and shall only be used, by or under the supervision of professional users in physiotherapy, rehabilitation and adjacent areas. Page 5 of 14... -
Page 6: Precautionary Instructions
Never adjust a section when it supports the full weight of the patient! Each section of this Manumed ST is supported by gas springs. As well as easing operation, they offer full support of the sections. However, these gas springs are not strong enough to lift a section while it supports the full weight of the patient. -
Page 7: Operation
Never adjust a section when it supports the full weight of the patient! Each section of this Manumed ST is supported by gas springs. As well as easing operation, they offer full support of the sections. However, these gas springs are not strong enough to lift a section while it supports the full weight of the patient. - Page 8 Hydraulic height adjustment The required height can be reached by pressing and releasing the pedal repeatedly. The couch can be lowered by lifting the pedal with the foot. Electric height adjustment By pressing the foot switch continuously, the required height can be reached. Height adjustment with the all-around operation (optional) By pressing or pulling the all-around operation - which...
-
Page 9: Safety Instructions
8 Safety instructions Height adjustment (general) Ensure that neither the patient nor the operator can get any part of the body or clothes near or in between the moving parts of the mechanism when the couch is being raised or lowered. Be particularly careful for those situations indicated beside (the couch is set in flexion position combined with the lowest possible... -
Page 10: Cleaning, Maintenance And Troubleshooting
Adjustment of the sections When adjusting the sections, squeezing-danger can arise at contact points of the section. Keep enough distance between you or your clients and these points. 9 Cleaning, maintenance and troubleshooting Cleaning Use a clean couch cover / towel / terry cloth / paper cover for every individual. This is required to guarantee a hygienic use. - Page 11 Maintenance If you encounter any problem with the Manumed ST, stop using the couch and contact your supplier. Check the operation of every section adjustment regularly (at least once every month). For correct • operation keep the bars of the mechanism clean and free of grease.
-
Page 12: Specifications
10 Specifications Technical data Height adjustment ca. 48 - 101 cm Length ca. 207 cm Width ca. 67 cm 150 kg for the electrical model Lifting capacity 150 kg for the hydraulic model Motor speed 6 mm/sec Mains voltage 230V~ 50/60 Hz Current consumption 1.0 A Type B: tabletop... -
Page 13: Contact
11 Contact For assistance, please visit our website www.enraf-nonius.com The latest version (in electronic or printed format) of this Instructions for Use can be obtained free of charge from our website www.enraf-nonius.com or by contacting distributor or by calling the telephone number: +31-(0)10-2030600. - Page 14 Copyright: Enraf-Nonius B.V. Vareseweg 127 | 3047 AT | Rotterdam | The Netherlands Tel: +31 (0)10-20 30 600 | info@enraf-nonius.nl EN109-1560750-44...
