  • Page 1 Eltrac 471 Operating Instructions...
  • Page 2 Copyright: Enraf-Nonius B.V. Vareseweg 127 3047 AT Rotterdam The Netherlands Tel: +31 (0)10 – 20 30 600 Fax: +31 (0)10 – 20 30 699 info@enraf-nonius.nl www.enraf-nonius.com Partnumber: 1671751_40 September 4, 2014...
  • Page 3 Eltrac Operating Instructions...
  • Page 5 Copyright: Enraf-Nonius B.V. Vareseweg 127 3047 AT Rotterdam The Netherlands Tel: +31 (0)10 – 20 30 600 Fax: +31 (0)10 – 20 30 699 info@enraf-nonius.nl www.enraf-nonius.com Part number: 1671751_40 September 4, 2014...

  • Page 6: Table Of Contents

    TABLE OF CONTENTS FOREWORD ............................6 Intended User/Operator ........................6 Product Liability ..........................6 PRODUCT DESCRIPTION ........................6 PRECAUTIONARY INSTRUCTIONS ....................7 INTENDED USE ............................ 8 Indications ............................8 Contra-indications ..........................8 PACKAGE CONTENTS ........................9 INSTALLATION ............................. 9 Connection to mains supply ......................9 Disconnection from mains supply ....................
  • Page 7 9.2.2 Patient stop switch ........................... 17 9.2.3 Threshold cervical traction ........................17 Technical Maintenance ........................17 End of life ............................18 SPECIFICATIONS ........................... 19 10.1 Technical data ..........................19 10.2 Safety and Performance standards ..................... 19 10.3 EMC details ............................. 19 ORDERING INFORMATION ......................

  • Page 8: Foreword

    I.e.“professional users”. WARNING (USA only): The Eltrac 471 is a prescription device that should only be used under the supervision or by the order of a physician or other licensed healthcare provider.

  • Page 9: Precautionary Instructions

    Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous exposure. • Use the Eltrac 471 only in conjunction with the appropriate accessories from Enraf-Nonius BV. • This unit should be operated, transported and stored at temperatures between 10 and 40° C (50°...

  • Page 10: Intended Use

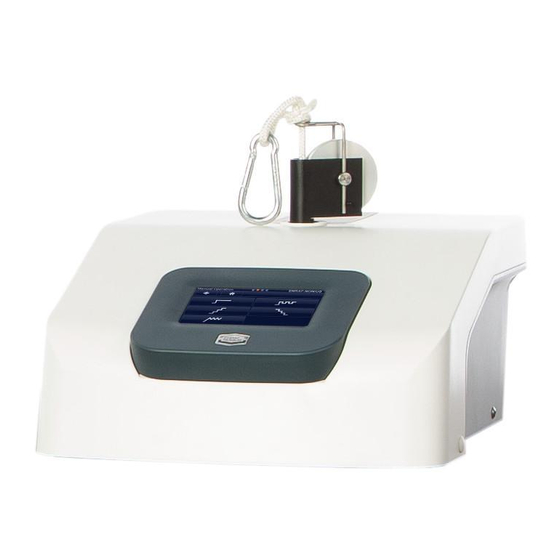

    The motor in the device delivers via the cord and the to be connected accessories, the necessary traction to the patient. The Enraf-Nonius accessories which are suitable for use with the Eltrac 471, are used for the performance of lumbar and cervical traction.

  • Page 11: Package Contents

    5 Package Contents Device 1671901 Eltrac 471 Standard accessories Eltrac 471: 1471800 Patient stop switch 1471801 Fixing knobs, set of 4 1471806 Nylon cord 170 cm with carabiner hook 1671751 Operating Instructions Eltrac 471 3444290 Power cord 6 Installation Connection to mains supply Insert the mains cable into socket [5] and connect it to a wall socket.

  • Page 12: Mounting On The Traction Frame

    Mounting on the traction frame The Eltrac 471 may be mounted on different Enraf-Nonius (traction) benches by way of a traction frame. Moreover, the device may be mounted on the mobile traction frame for cervical traction. For mounting instructions, please refer to the documentation supplied with the traction frames.

  • Page 13: Operating Instructions

    8 Operating Instructions Operator controls Cord Pulley Display with touch screen Power switch 0 Device disconnected from mains supply 1 Device connected to mains supply Mains input and mains fuses Type number plate Provides information of the device like type and serial number, as well as data on mains voltage and maximum current consumption.

  • Page 14: Basic Operation

    Basic Operation Switch on the device as described in paragraph 6 8.2.1 Navigation The following buttons can be displayed on the navigation bar. Button Significance Back, return to previous screen. Continue, continue to next screen. Home, return to Home screen. Page number / number of pages in multi-page menu screens or treatment step number / number of treatment steps in sequential protocols.

  • Page 15: Home

    8.2.2 Home The Home menu provides access to the following functions: • Protocols • Favourites • Manual operation • System settings (The button for system settings is located at the top right-hand side of the navigation bar) 8.2.3 Protocols Selecting protocols After selecting the Protocols menu in the main menu, a list will appear with preprogrammed protocols.

  • Page 16: Manual Operation

    8.2.5 Manual Operation Form of therapy After selecting Manual Operation in the main menu, the possible forms of therapy appear. Depending on the selected form of therapy, you will be prompted to enter the required parameters. Setting of parameters Use the arrow keys on the screen to adjust the parameter.
  • Page 17 Adjusting parameters You can adjust the parameters by pressing the relevant button on the right-hand side of the screen and using the arrow keys in the next screen. Confirm using the tick on the navigation bar. In order to browse through all parameters for a therapy form, select the relevant symbol on the left-hand side.

  • Page 18: System Setings

    Naming your favorite Using the keyboard, type in the name of your favorite setting. Press to store your favorite setting under the name entered by you. Once stored, favourites may be retrieved from the Favourites menu. Programming A treatment can be programmed in two ways. 1.

  • Page 19: Maintenance And Troubleshooting

    9 Maintenance and Troubleshooting Cleaning and Disinfection 9.1.1 Cleaning of appartus To clean the unit, turn it off and unplug the power supply. Clean the unit with a damp cloth. Do not use abrasive cleaners. A small amount of mild household detergent may be used, if needed. 9.1.2 Cleaning display panel The display panel has an anti-reflection coating and should be cleaned carefully.

  • Page 20: End Of Life

    This unit operates with high voltages. No attempt should be made to disassemble the unit. Maintenance and repair should be carried out by authorized personnel only. Enraf-Nonius will not be held responsible for the results of maintenance or repairs by unauthorized persons.

  • Page 21: Specifications

    Portable and mobile RF communication systems (e.g. mobile phones) may interfere with medical electrical devices. The Eltrac 471 should only be operated with the original mains cable specified in the list of contents delivered. Operating the device with any other mains cable can lead to increased emissions or reduced interference...
  • Page 22 NOTE UT is the AC mains voltage prior to application of the test level. Guidance and manufacturer’s declaration – Electromagnetic immunity The Eltrac 471 is intended for use in the electromagnetic environment specified below. The customer or the user of the Eltrac 471 should assure that it is used in such an environment.
  • Page 23 Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey should be less than the compliance level in each frequency range...

  • Page 24: Ordering Information

    Thoracic belt for Manumed Traction 3445512 Mobile traction frame for cervical traction 1471805 Wall bar bracket, for mounting of Eltrac 471 to wall bars 3445038 Traction frame for Manumed Traction H/L (width 430 mm) 3445020 Traction frame Manumed fixed height (width 480 mm)
