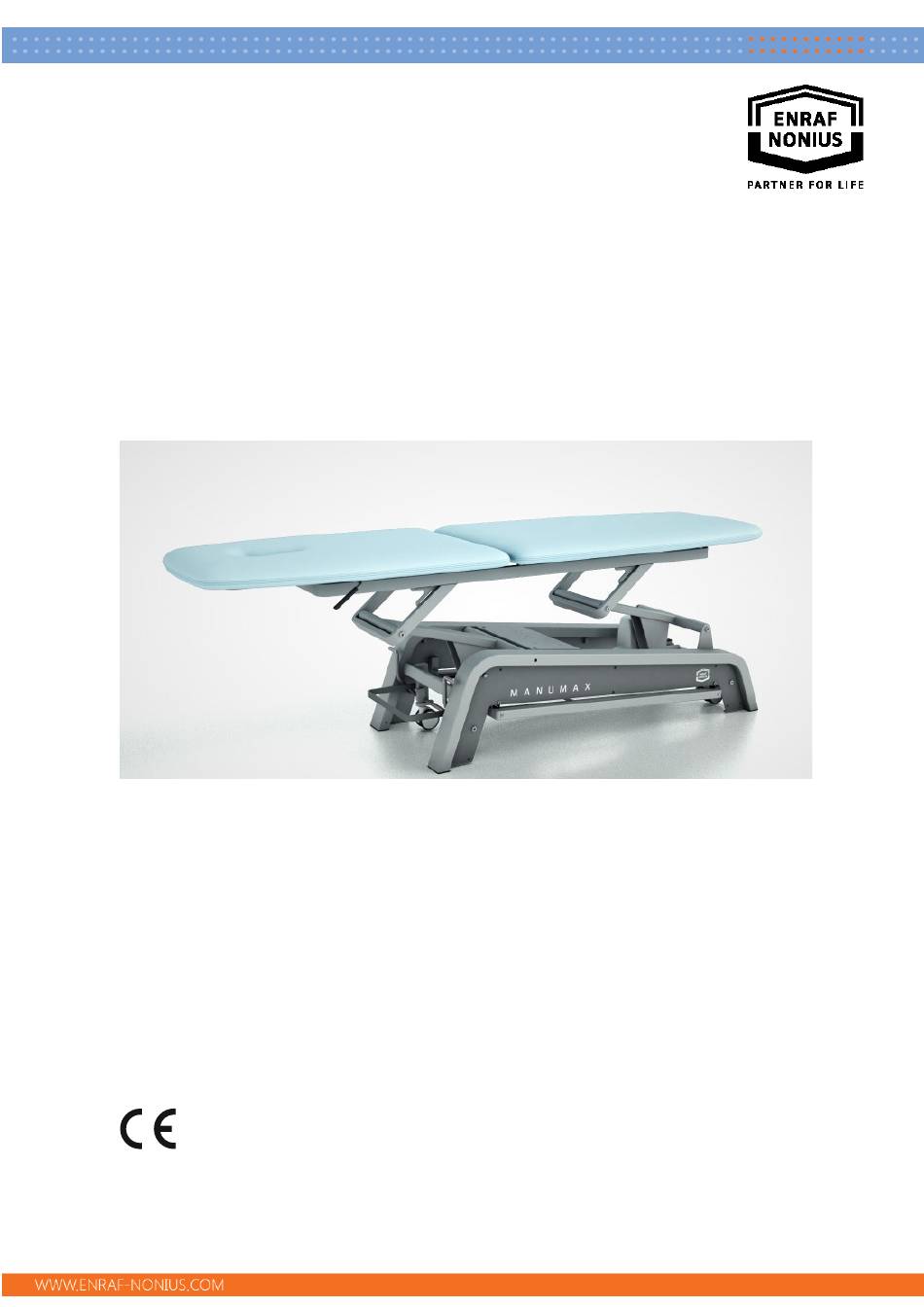

- Page 1 MANUMAX EN109-1570750-41 IFU July 17, 2019 Instructions For Use Page 1 of 20 EN109-1570750-41 IFU...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............................3 Symbols ................................4 Package Contents ............................5 Installation ................................. 6 Intended use and intended user ....................... 8 Precautions ................................ 9 Operation ................................ 12 Maintenance ..............................15 Specifications ..............................17 10 Contact ................................18 11 Product liability ............................. 18 Page 2 of 20 EN109-1570750-41 IFU... -
Page 3: Introduction
We hope that this is a valuable tool in the exercise of your profession, and that it will improve the health and quality of life of many people. This Instructions For Use relates to the ManuMax Examination 2.2, the ManuMax Multi 3.3 and the ManuMax Multi 3.5. -
Page 4: Symbols
2 Symbols Follow the instructions in the manual. It is important that you carefully read and apply the preventive safety and operating instructions. Warning or caution!: Indicates a hazardous situation which, if not avoided, may result in a. Death or serious injury of the patient (or) b. -
Page 5: Package Contents
3 Package Contents The following is included with your treatment couch: 1x 1570750 ManuMax User Manual (PDF on CD) 1x 1570751 ManuMax Information Booklet The use of accessories and cables other than those specified or supplied by the manufacturer of this equipment is not permitted. -
Page 6: Installation
Avoid exposure to direct sunlight, UV radiation, excessive dust, moisture, vibrations and impacts. ManuMax treatment couches are not suitable for use in so-called ‘wet rooms’ (hydrotherapy rooms). Never move the couch with a person or a weight on the couch. Only move the couch on a level surface. - Page 7 Unplug the power cord from the wall socket before using the adjustable foot. An adjustable foot is located on the inside of one of the legs. Turn the adjustable foot until it rests on the surface and the couch is positioned in a stable manner. Secure the adjustable foot by turning the locking nut clockwise towards the frame.
-
Page 8: Intended Use And Intended User
Intended User The ManuMax treatment couches are intended to be used, and shall only be used, by or under the supervision of professional users in physiotherapy, rehabilitation and adjacent areas. -
Page 9: Precautions
Never move the couch with a person or a weight on the couch. Only move the couch on a level surface. The couch is not suitable for riding over thresholds. The ManuMax treatment couches are intended to be used, and shall only be used, by or under the supervision of professional users in physiotherapy, rehabilitation and adjacent areas. - Page 10 In the event the control equipment does not work properly, unplug the power cord from the wall socket. Check for damage and trapped cables. Make sure there is no patient on the couch and plug the power cord back into the wall socket. Carefully check whether the control equipment works properly.
- Page 11 The head section and arm rests are not suitable to sit on, but only to support the head and arms. When adjusting table top sections, avoid getting body parts between hinged parts. Make sure that you and persons near or on the couch keep a sufficient distance from these hinged parts.
-
Page 12: Operation
7 Operation Digital lock A digital lock is standard on the couch. We recommend you always enable this lock when the couch is unattended. Enabling it will ensure the couch's motors cannot be operated, and the couch cannot be used. This will prevent the couch from being adjusted unintentionally. - Page 13 Never adjust a table top section when the patient is supporting on it with his/her full weight. The table top sections of some ManuMax couches are supported by gas springs. These ensure an easy adjustment and stable positioning of the table top sections. However, the gas springs are not strong enough to adjust a section while supporting the full weight of the patient.
- Page 14 Never adjust a table top section when the patient is supporting on it with his/her full weight. The table top sections of some ManuMax couches are supported by gas springs. These ensure an easy adjustment and stable positioning of the table top sections. However, the gas springs are not strong enough to adjust a section while supporting the full weight of the patient.
-
Page 15: Maintenance
8 Maintenance !!! IMPORTANT !!! It is very important for the life of the upholstery that it is properly cleaned. Skin oils, perspiration, make-up products, hairspray, etc. and overly aggressive detergents and disinfectants can have a very detrimental effect on the lifespan of the upholstery. Cleaning The couch must be cleaned before the first use and before disinfecting the couch. - Page 16 ManuMax will remain suitable for its intended use. End of Service Life The ManuMax contains materials that can be reused and/or are harmful to the environment. Make sure you are familiar with local rules and regulations regarding the disposal of equipment and accessories.
-
Page 17: Specifications
9 Specifications Electrical Info Mains voltage 100 - 240 Volt Frequency 50/60 Hz Power consumption 250 VA max Safety and performance standards Safety class II according to IEC 60601-1 Moisture resistance IPX1 Safe working load 250 kg Medical classification Class I in accordance with MDD (93/42/EEC) Performance Lifting capacity 250 kg... -
Page 18: Contact
10 Contact For assistance and support, please visit our website www.enraf-nonius.com The most recent version of these Instructions for Use (in electronic or printed form) can be obtained free of charge via our website www.enraf-nonius.com, by contacting your supplier or by calling +31 (0)10 2030600. - Page 19 Page 19 of 20 EN109-1570750-41 IFU...
- Page 20 Copyright: Enraf-Nonius B.V. Vareseweg 127 | 3047 AT | Rotterdam | The Netherlands Tel: +31 (0)10 20 30 600 | info@enraf-nonius.nl EN109-1570750-41 IFU...
