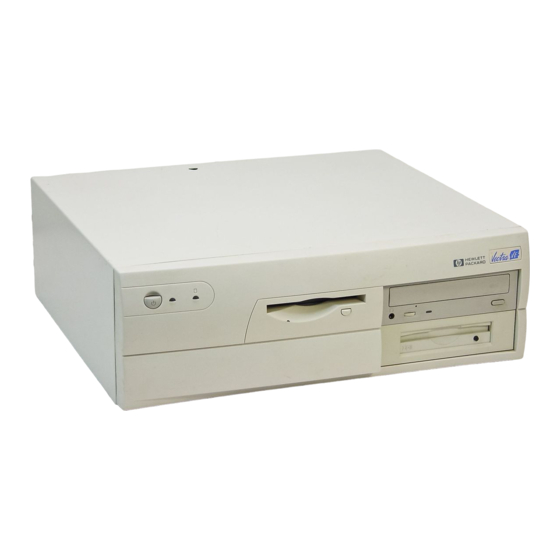

HP Vectra VEi 8 PC

Models and Accessories

Product
Hard
Number
Drive
Models with Intel Pentium II Processor,
100 MHz System Bus Speed, and 512 KB Level 2 Cache Memory
D8151A/T 4.3 GB
Integrated
IDE
Matrox
MGA-G200 AGP
(8 MB SGRAM
D8152N/T
fitted, not
upgradeable)
D8153A/T 8.4 GB
IDE
D8155A
4.3 GB
IDE
Models with Intel Pentium III Processor,
100 MHz System Bus Speed, and 512 KB Level 2 Cache Memory
D8171A/T 4.3 GB
Integrated
IDE
Matrox
MGA-G200 AGP
(8 MB SGRAM
D8172N/T
fitted, not
upgradeable)
D8173A/T 8.4 GB
IDE
D8174A
D8175T
Medium-Profile
Desktop Vectras
Video
Std.
Controller
RAM
Vectra VEi 8 PC
HP Vectra VEi 8 PC 400 (CPL: 04/99 )
32 MB
SDRAM
100 MHz
64 MB
SDRAM
100 MHz
32 MB
SDRAM
100 MHz
Vectra VEi 8 PC
HP Vectra VEi 8 PC 450 (CPL: 04/99 )
32 MB
SDRAM
100 MHz
64 MB
SDRAM
100 MHz
Multi-media
LAN
no
no
3COM
3C905B-
TX
32
Max IDE
no
CD-ROM
no
no
no
3COM
3C905B-
TX
32
Max IDE
no
CD-ROM
HP Vectra VEi 8 PC 16-1
16
1
OS
W95
NT
4.0
WS
W95
16
W95
+
Word
W95
NT
4.0
WS
W95
W98
NT
4.0
WS

Advertisement

Table of Contents
loading

Related Manuals for HP Vectra VEi8

Summary of Contents for HP Vectra VEi8

  • Page 1: Models And Accessories

    Number Drive Controller Models with Intel Pentium II Processor, 100 MHz System Bus Speed, and 512 KB Level 2 Cache Memory HP Vectra VEi 8 PC 400 (CPL: 04/99 ) D8151A/T 4.3 GB Integrated Matrox MGA-G200 AGP (8 MB SGRAM...

  • Page 2: Supported Accessories

    256-MB, 32-bit SDRAM, 100 MHz ECC main memory module Documentation User’s Guide Manual Kit 16-2 HP Vectra VEi 8 PC Video Std. Multi-media Controller HP Vectra VEi 8 PC 500 (CPL: 04/99 ) Integrated 64 MB Matrox SDRAM CD-ROM MGA-G200 AGP 100 MHz...
  • Page 3 Input Devices HP Standard Keyboard HP Standard Mouse HP Scrolling Mouse Video Displays All current HP Displays (see the HP Vectra Accessory Service Handbook) Mass Storage 4.3-GB IDE hard disk 6.4-GB IDE hard disk 8.4-GB IDE hard disk HP 100 MB Atapi II Iomega ZIP drive...

  • Page 4: System Board, Bios, And Memory

    Two DIMM sockets which support up to a maximum of 512 MB. Install 32 MB, 64 MB, 128 MB or 256 MB 100 MHz SDRAM modules. 16-4 HP Vectra VEi 8 PC Processor: Pentium II or Pentium III SECC2 package with integrated heatsink and level-2 cache memory.

  • Page 5: System Board Jumpers

    To install the jumper, simply place it over the jumper block. It can only go on one way. Clear CMOS jumper Default position Clear CMOS HP Vectra VEi 8 PC 16-5...

  • Page 6: Part Numbers

    HP Vectra VEi 8 PC Part Numbers Medium-Profile 16-6 HP Vectra VEi 8 PC Desktop Vectras...
  • Page 7 5064-9141 — 5183-8063 — D2035-60391 — — D7528-69001 — D7530-69001 — D4385-69001 5182-1857 — 5182-3552 — C3751-60201 — C4739-601xx — 1420-0356 — 5183-2769 — 5064-6787 — 5064-7434 — See PC’s system board parts list HP Vectra VEi 8 PC 16-7...
  • Page 8 HP Vectra VEi 8 PC System Board Parts List for HP Vectra VEi 8 PC Description System board: Vectra VEi 8 system board with Matrox MGA-G200 video controller Processors: Intel Pentium II 400/100 512KB L2 cache Intel Pentium III 450/100 512KB L2 cache...

  • Page 9: Removing And Replacing The Cover And Front Panel

    Removing and Replacing the Cover and Front Panel Removing the Cover Before removing the cover, switch off the monitor and PC, disconnect all power cords and any telecommunication cables. If necessary, unlock the cover at the rear of the PC. 1 Undo the three thumb screws at the back of the PC and remove the cover by sliding it towards you by about 2 cm (0.8 inches) and then lifting it off.
  • Page 10 Removing and Replacing the Cover and Front Panel Replacing the Cover Before replacing the cover, ensure that all internal cables are properly connected and safely routed. 1 If necessary, replace the front panel. To do this, insert the three plastic tabs into the holes in the front of the PC chassis and snap the panel in place.

  • Page 11: Replacing A Memory Module

    Replacing a Memory Module Replacing a Memory Module Location of Main Memory (modules can be installed in either slot) VEi 7 models VEi 8 models 1 Remove the PC’s cover (described in this chapter). 2 Open the two tabs and remove the old memory module. 3 Insert the new memory module (aligning it) and close the two tabs.

  • Page 12: Replacing An Accessory Board

    Replacing an Accessory Board Replacing an Accessory Board 1 Remove the computer’s cover (described in this chapter). 2 Remove the screw that holds the old board in place. 3 Hold the old board firmly and carefully pull it out. 4 Aligning the new board carefully, slide it into position, then press it firmly into the slot and tighten the retaining screw.

  • Page 13: Which Drive Connectors To Use

    Which Drive Connectors to Use Internal drives, such as hard disk drives, DVD drives, and CD-ROM drives, must be connected to data and/or power cables. When replacing these drives, ensure you use the correct data and power connectors. Master (boot) Hard Disk Drive Master (boot) Hard Disk Drive...

  • Page 14: Replacing The Hard Disk Drive

    Replacing the Hard Disk Drive Replacing the Hard Disk Drive For information on recovering the contents of your hard disk drive, refer to the Troubleshooting and Upgrade Guide, available on HP’s web site at www.hp.com/go/vectrasupport 1 Remove the computer’s cover (described in this chapter).

  • Page 15: Replacing The Cd-Rom Drive (Or Dvd Drive)

    Replacing the CD-ROM Drive (or DVD Drive) WARNING To avoid electrical shock and harm to your eyes by laser, do not open the laser module. The laser module should be serviced by service personnel only. Do not attempt to make any adjustment to the laser unit. Refer to the label on the CD-ROM for power requirements and wavelength.
  • Page 16 Replacing the CD-ROM Drive (or DVD Drive) 4 Slide the new drive into the bay and replace the screws. 5 Attach all connectors. 6 Replace the PC’s front panel and cover (described in this chapter).

  • Page 17: Replacing The Floppy Drive

    Replacing the Floppy Drive Replacing the Floppy Drive 1 Remove the PC’s cover (described in this chapter). 2 Remove the hard drive’s connectors. 3 Remove the floppy drive’s connectors. 4 Remove the three retaining screws from the drive tray, then slide the tray back (by about 3 cm) until it can be lifted out.
  • Page 18 Replacing the Floppy Drive 5 Undo the three screws on the sides of the drive tray and remove the old floppy drive. 6 Slide the new floppy drive into the drive tray (with the correct orientation) and tighten the screws. 7 Replace the drive tray and tighten the three retaining screws.
  • Page 19 Replacing the Celeron Processor (VEi7 models) NOTE HP does not support processor upgrades. This information is provided to help you replace a defective unit with a processor provided by HP support services. 1 Remove the computer’s cover (described in this chapter).
  • Page 20 7 Replace the cover (described in this chapter). NOTE If you replace your processor or system board, you may need to update your BIOS. The latest BIOS for your PC and instructions on updating the BIOS are available from: Design 2 www.hp.com/go/vectrasupport www.hp.com/go/vectrasupport...
  • Page 21 Replacing the Pentium Processor (VEi8 models) NOTE HP does not support processor upgrades. This information is provided to help you replace a defective unit with a processor provided by HP support services. 1 Remove the PC’s cover (described in this chapter).
  • Page 22 NOTE If you change your processor or system board, you may need to update your BIOS. The latest BIOS for your PC and instructions on updating the BIOS are available from: Processor frequency jumper (provided with certain processors only) www.hp.com/go/vectrasupport...

  • Page 23: Replacing The System Board

    Replacing the System Board NOTE HP does not support system board upgrades. This information is provided to help you replace a defective unit with a system board provided by HP support services. 1 Remove the computer’s cover (described in this chapter).
  • Page 24 7 Replace the cover (described in this chapter). NOTE If you change your processor or system board, you may need to update your BIOS. The latest BIOS for your PC and instructions on updating the BIOS are available from: www.hp.com/go/vectrasupport...

  • Page 25: Replacing The Power Supply

    NOTE HP does not support power supply upgrades. This information is provided to help you replace a defective unit with a power supply provided by HP support services. 1 Remove the computer’s cover (described in this chapter).
  • Page 26 Replacing the Power Supply 6 Replace the three screws to secure the power supply. 7 Reconnect all internal power supply connectors. 8 Replace the cover (described in this chapter).
