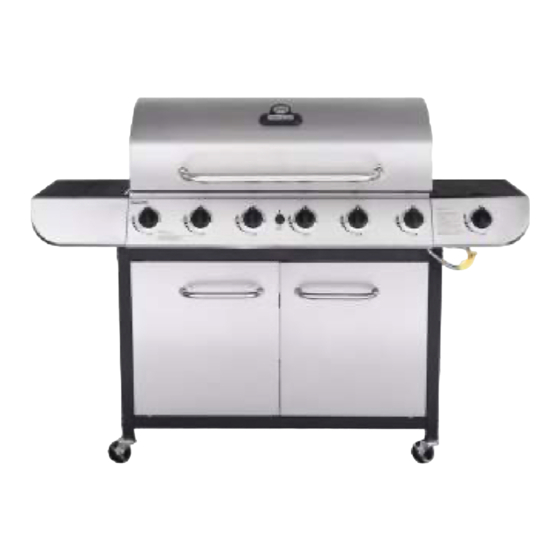

Traditional 6-Burner Gas Grill with Side Burner SG6001
FOR YOUR SAFETY!
Use outdoors only! Do not use it in a building,garage or any other enclosed area.
Read the instructions before assembling and using the appliance.
DO NOT use the grill unless it is completely assembled and all the parts are securely fastened.
This grill will become very hot, do not move it during operation.Keep children and pets away.
CONTACT US FIRST!
This grill has been made to high quality standards. If you have any questions nor
addressed in this manual, or if you need parts, please call our customer service department,
or send an email to service
Learn more at:
OWNER'S MANUAL
.
@
royalgourmetusa.com.
Customer Service
1-800-618-6798
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROYAL GOURMET SG6001
Summary of Contents for ROYAL GOURMET SG6001
- Page 1 Customer Service 1-800-618-6798 Traditional 6-Burner Gas Grill with Side Burner SG6001 OWNER’S MANUAL FOR YOUR SAFETY! Use outdoors only! Do not use it in a building,garage or any other enclosed area. Read the instructions before assembling and using the appliance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS For Your Safety………………………………………………2 Parts & Hardware List………………………………………4 Assembly Instructions………………………………………6 General Information and Instructions……………………12 Operating Instructions…………………………………… 17 Cleaning Instructions …………………………………… 18 Troubleshooting Guide…………………………………… 20 Frequently asked Questions………………………………21 Customer Service ……………………… ………………... -
Page 3: For Your Safety
WARNING FOR YOUR SAFETY 1. DO NOT store or use gasoline or any other flammable vapours or liquids within 8m(25’) of the grill. 2.When cooking with oil/grease, do not allow the oil/grease to exceed 177℃ 350℉ Do not store extra cooking oil in the vicinity of the grill. - Page 4 WARNING: 1.This grill is for outdoor use only, and should not be used in building, garage or any other enclose area. 2.The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to properly assemble or safely operate the grill. 3.
-
Page 5: Parts & Hardware List
Parts and Hardware List Left back leg 1pc Right back leg 1pc Caster 4pcs Right front leg 1pc Left front leg 1pc Side shelf 2pcs Bottom shelf LP tank barrie bar Cart back beam Cart front beam Cart brace 2pcs Right door 1pc Left door 1pc Door axle... - Page 6 PREPARATION Before beginning assembly, make sure all parts are present. Compare parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. • Estimated assembly time: 50minutes •...
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1 Step 2 Assemble the casters (1) to legs, twist clockwise. Assemble the legs (2, 3, 4, 5) to the bottom shelf (6) with 8 bolts (A) as shown. Step 3 Step 4 Assemble the LP tank barrie bar (8) to side shelf Assemble the side shelves (7) to legs with 8 bolts (F). - Page 8 ASSEMBLY INSTRUCTIONS Step 5 Step 6 Assemble the cart back beam (9) to legs with 4 bolts (F). Assemble the cart front beam (10) , cart braces (11) Fasten the magnet (E) to bottom shelf with 2 bolts (C). to front legs with 4 bolts (A) . Please note, the cart braces are fastened between the legs and beam.
- Page 9 ASSEMBLY INSTRUCTIONS Step 9 Step 10 Slide the door axles (14) to doors (13, 14), Assemble the door handles (15) to doors with 4 bolts (G). assemble them to the cart front beam and bases. Step 11 Step 12 Attach the side burner (17) to the right side and Align and place the main body (16) to the cart on the braces.
- Page 10 ASSEMBLY INSTRUCTIONS Step 13 Step 14 Fasten the side burner to the main body through legs Fasten the side table to the main body through legs with 2 bolts (A). with 2 bolts (A). Fasten the side table decoration to control panel with Fasten the side burner decoration to control panel with 2 bolts (F).
- Page 11 ASSEMBLY INSTRUCTIONS Step 17 Step 18 Insert the ignition line to the electrode hole as shown. Assemble the burner (18) by sliding on the top center of the side burner body. Fasten burner to body with 2 bolts (C). Affix the terminal to the valve. Place the side burner grate back to the side burner body.
- Page 12 ASSEMBLY INSTRUCTIONS Step 21 Step 22 Place the cooking grates (25, 26) into the main body. Place the warming rack (27) to the main body. Step 23 Step 24 Put the AA battery (B) into the ignitor.
-
Page 13: General Information And Instructions
General Information and Instructions Your new Griddle and Grill has been designed and manufactured to high quality standards. It will provide you with many years of enjoyment with a minimal amount of maintenance. Please keep in mind the following FOR YOUR SAFETY. OPERATION 1. - Page 14 CYLINDER SPECIFICATIONS: When purchasing or exchanging a tank for your gas grill, it must be constructed and marked in accordance with the specifications for LP gas cylinders of the National Standard of , CAN/CSA - B339 Cylinders, Spheres and Tubes for Transportation of Dangerous Goods, be equipped with a listed over-filling prevention device (OPD), and be equipped with a cylinder connection device compatible with the connection for outdoor cooking appliances.
- Page 15 LP CYLINDER LEAK TEST A leak test should be done each time a propane tank is refilled or exchanged. Do not smoke or use any type of flammable material in the area during this leak test. Do not use an open flame to check for leaks. 1.
- Page 16 The regular must enter the cylinder valve in a straight line. Centre the regular nipple into the cylinder valve. GCC 1 Type 1 Connector Always keep this gas cylinder in the upright position all times. WARNING 1. Do not connect this grill to any unregulated sources of propane. 2.
- Page 17 FOR YOUR SAFETY 1. The minimum distances around the barbecue that must be kept free of combustible materials, including the walls of buildings or building features are: distance from sides – 90 cm (36") and distance from back – 90 cm (36"). 2.
-
Page 18: Operating Instructions
OPERATING INSTRUCTIONS Always visually inspect your grill before lighting. Replace any hoses that are frayed or cracked. Look for anything could block spaces for ventilation and remove it or move the barbecue. After lighting, check the flame pattern to ensure you have even heat distribution for each burner. If burners won’t light, or if the flame pattern is uneven, see the Troubleshooting section. -
Page 19: Cleaning Instructions
CLEANING INSTRUCTIONS WARNING 1. Do not clean any part of your barbecue grill in a self-cleaning oven. 2. Do not use oven cleaners, abrasive kitchen cleaners, cleaners that contain citrus products, or mineral spirits. 3. Do not use any type of steel or brass bristled brush. 4. - Page 20 CLEANING THE BURNERS 1. Ensure the gas is turned off at the propane tank. 2. Remove the cooking grates, flame tamer, and grease tray. 3. Remove the cotter pins located underneath the back end of each burner. 4. Lift each burner up and out. 5.
-
Page 21: Troubleshooting Guide
Troubleshooting Guide BURNER WILL NOT LIGHT 1.) Gas supply is turned off. Turn on gas at propane tank. 2.) Out of propane. Fill or replace the propane tank. 3.) Regulator is not properly seated into the tank valve. Remove and reattach. Hand tighten only. 4.) Crimped fuel supply hose that needs to be straightened. -
Page 22: Frequently Asked Questions
One year. Customer Service Thanks for purchasing this Royal Gourmet gas grill. We are here to help you maximize your enjoyment and appreciation of your new grill. Please don't hesitate to contact us should you have any questions regarding assembly, performance, warranty, or accessories. We will be happy to order any replacement parts needed.
