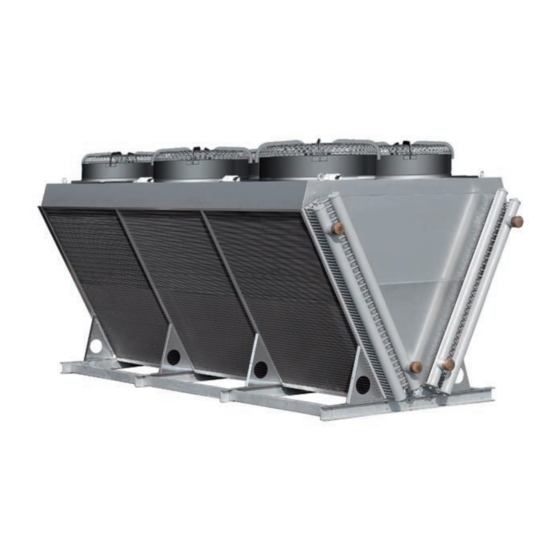

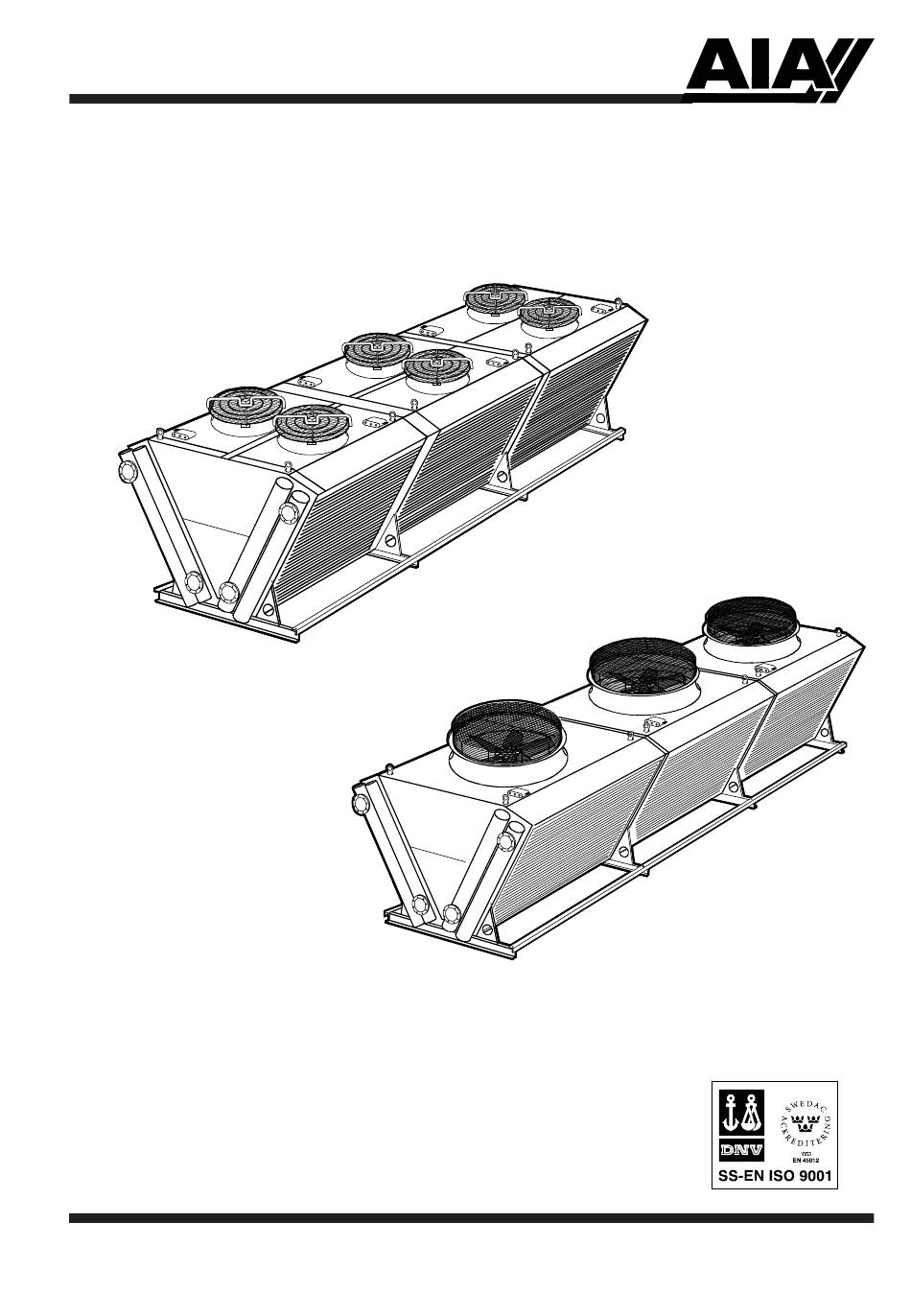

- Page 1 Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 61355/1 DXP100 DCP100 DXP120 Directions for use Asarums Industri AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...
- Page 2 Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 Declaration by the Manufacturer, Annex II B As defined by the EC Machinery Directive (MD) 98/37/EC, the Low Voltage Directive (LVD) 2006/95/EC and the EMC Directive 2004/108/EC. Type of machinery Heat Exchangers supplied with direct cranking fans...
- Page 3 Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 INDEX General description System of designations Receiving and fitting Installation Preventive maintenance Lifting instruction Asarums Industri AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE –...
-
Page 4: General Description
Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 General description General This dry cooler is designed for outdoor location and is intended for refrigerants that are not aggressive in contact with copper. The cooler conforms to environment class 3. -
Page 5: Installation
DXP100/120 (DCP100) Additional options Number of passes A = 865 rpm 3/400 V (DXP100) B = 670 rpm 3/400 V (DXP100) C = 450 rpm 3/400 V (DXP100) D = 355 rpm 3/400 V (DXP100) A = 960 rpm 3/400 V (DXP120) - Page 6 Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 Receiving and fitting The product is subjected to thorough inspection of quality and function before leaving the factory. If faults or damage due to transportation are detected on the product, the point of sale is to be contacted without delay.
-
Page 7: Tubing Installation
Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 Installation Installations may only be made by authorised persons and in conformance with national standards. The cooler may not be connected to other voltage or frequency than its rated data. The wiring diagram is attached to the fan grille together with these instructions. -
Page 8: Preventive Maintenance
Air Cooled Condenser Type DCP100 Preventive maintenance Warning. Make certain that the power supply is disconnected Changing the fan unit (DXP100, D DCP100) 1. Switch OFF the safety switch and lock it. 2. Disconnect the electric cable from the fan units terminal box (1). - Page 9 Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 Preventive maintenance Warning. Make certain that the power supply is disconnected Changing the fan / motor (DXP120) 1. Switch OFF the safety switch and lock it. 2. Unscrew the fastening screws of the protective cover (1) and remove it.
- Page 10 Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 Preventive maintenance Warning. Make certain that the power supply is disconnected Cleaning the cooling battery 1. Remove the service cover (1). 2. Cooling batteries that are lightly soiled can be cleaned by brushing and blowing with compressed air.
-
Page 11: Lifting Instruction
Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 Lifting instruction 3180 mm 3100 mm (stl.1-3) 4700 mm (stl.4-6) 1900 mm 3180 mm 3180 mm (stl.7-9 ) 4770 mm (stl.10-12 ) 1900 mm 4770 mm 6360 mm (stl.13-15) 1900 mm... - Page 12 Dry Cooler Type DXP100/120 Air Cooled Condenser Type DCP100 Asarums Industri AB Tel: +46 454 334 00 2009-02-10 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...
