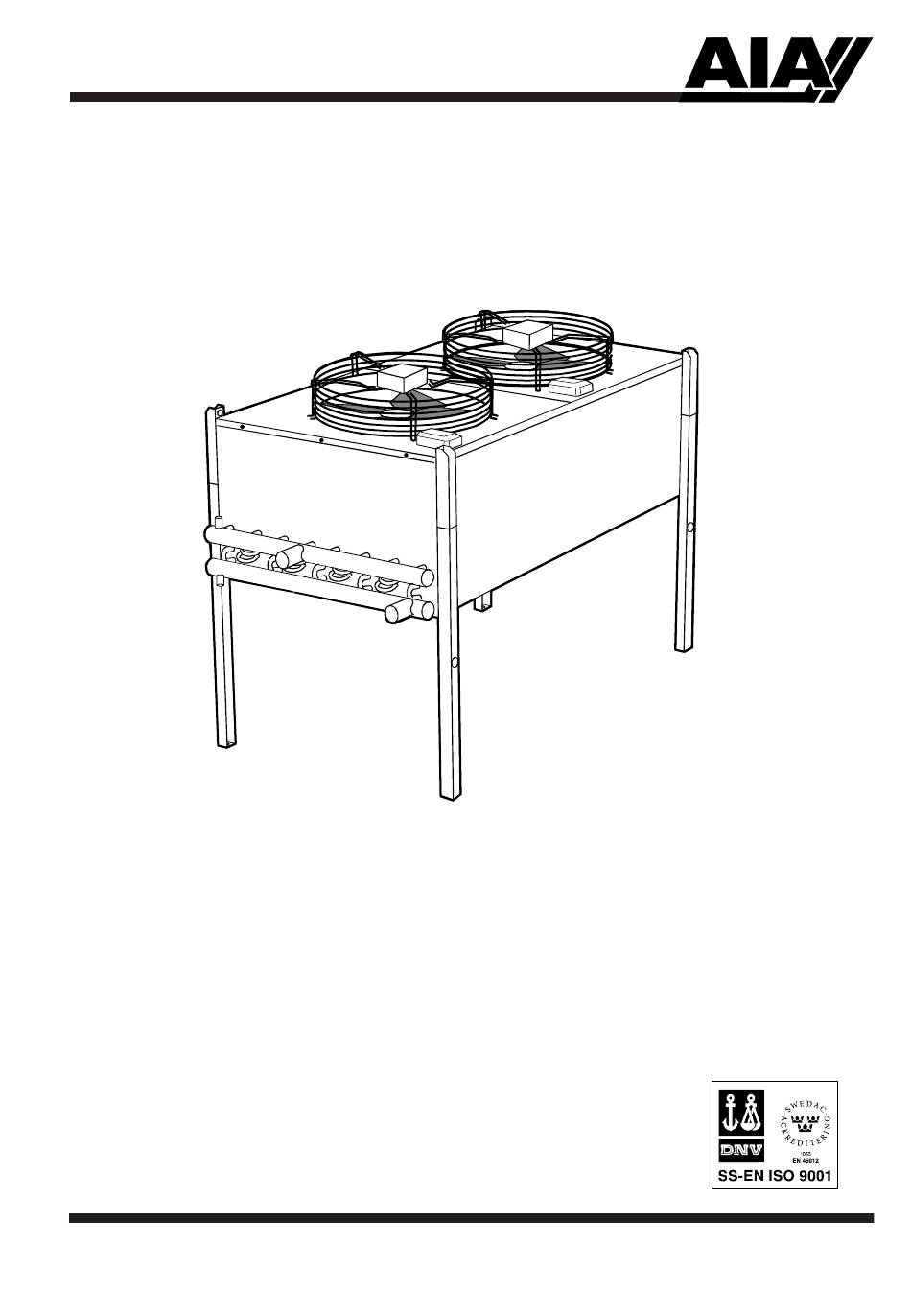

- Page 1 CPS/XPS - Condensor / Dry cooler 61221 Directions for use Asarums Industri AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...
- Page 2 CPS/XPS - Condensor / Dry cooler Asarums Industri AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...
- Page 3 CPS/XPS - Condensor / Dry cooler Declaration by the Manufacturer, Annex II B As defined by the EC Machinery Directive (MD) 98/37/EC, the Low Voltage Directive (LVD) 2006/95/EC and the EMC Directive 2004/108/EC. Type of machinery Heat Exchangers supplied with direct cranking fans...
- Page 4 CPS/XPS - Condensor / Dry cooler INDEX Page General description System of designations Receiving and fitting Installation 8-11 Motor winding diagram Preventive maintenance 13-14 Asarums Industri AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE –...
-
Page 5: General Description
CPS/XPS - Condensor / Dry cooler General description General This product is designed for outdoor location and is intended for refrigerants that are not aggressive in contact with copper. The product is provided with axial fans and the casing is made of aluminium sheeting as standard. - Page 6 CPS/XPS - Condensor / Dry cooler System of designations C E 45 – 1 1 3 C – C F – 4 D 3 400 50 – 2 – Serie Tube size code Fan size in cm Lines of fans...
- Page 7 CPS/XPS - Condensor / Dry cooler Receiving and fitting The product is subjected to thorough inspection of quality and function before leaving the factory. If faults or damage due to transportation are detected on the product, the transporter and point of sale is to be contacted without delay.
-
Page 8: Installation
CPS/XPS - Condensor / Dry cooler Installation The following instructions should be read together with the technical leaflet. Location Place the product so that air can pass freely over the entire coil surface and if possible so that the wind direction does not affect the evacuation air because re-circulation could otherwise occur. - Page 9 CPS/XPS - Condensor / Dry cooler Installation 0,8 x B 0,7 x B 0,8 x B 0,6 x Y 0,7 x Y 0,7 x Y 0,8 x B >A / 4 >A / 4 >B / 2 >B / 2 >A / 4...
- Page 10 CPS/XPS - Condensor / Dry cooler Installation Tube installation for Condensor The product is to be filled with the amount and type of refrigerant stated by the installa- tion engineer. The connecting tubes are located on one end of the unit.
- Page 11 CPS/XPS - Condensor / Dry cooler Installation Installations may only be made by authorised persons and in accordance with national standards. The cooler may not be connected to other voltage or frequency than its rated data. Connecting the fan To be connected to the safety switch as...
- Page 12 CPS/XPS - Condensor / Dry cooler Motor winding diagram 3/400V 4 POLES 3/400V 4 POLES 3/400V 6 POLES 3/400V 6 POLES TK TK W2 U1 U2 V1 V2 W1 TK TK W2 U1 U2 V1 V2 W1 1/230V 4 POLES...
-
Page 13: Preventive Maintenance
CPS/XPS - Condensor / Dry cooler Preventive maintenance Warning. Make certain that the power supply is disconnected. Changing the fan Disconnect the electric terminals in the junction box for the fan (1). Remove the bolts (2) (4 off) and washers and take off the fan (3). - Page 14 CPS/XPS - Condensor / Dry cooler Preventive maintenance Warning. Make certain that the power supply is disconnected. Cleaning the cooling battery 1. Cooling batteries that are lightly soiled can be cleaned by brushing and blowing with compressed air. 2. Then wash the battery with water and environment-friendly detergent that does not corrode aluminium or copper.
- Page 15 CPS/XPS - Condensor / Dry cooler Asarums Industri AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...
- Page 16 CPS/XPS - Condensor / Dry cooler Asarums Industri AB Tel: +46 454 334 00 2009-02-10 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...
