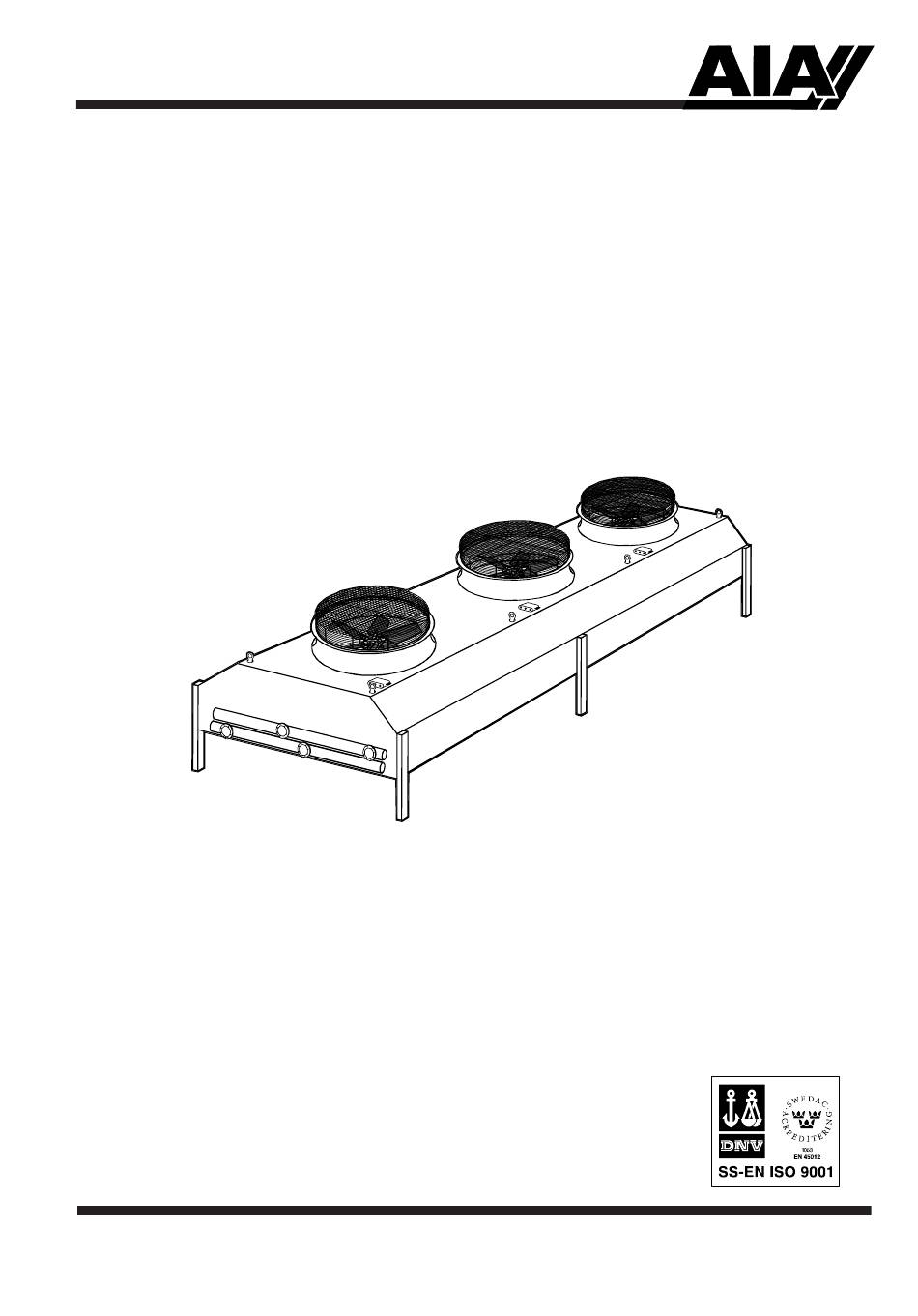

Dry cooler Type XP120
61358
Directions for use
Asarums Industri AB
Tel: +46 454 334 00
Södra Industrivägen 2 – 4 Fax:+46 454 320 295
SE – 374 50 Asarum
Sweden
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the XP120 and is the answer not in the manual?

Questions and answers

Related Manuals for AIA XP120

Summary of Contents for AIA XP120

  • Page 1 Dry cooler Type XP120 61358 Directions for use Asarums Industri AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...
  • Page 2 Dry cooler Type XP120 Declaration by the Manufacturer, Annex II B As defined by the EC Machinery Directive (MD) 98/37/EC, the Low Voltage Directive (LVD) 2006/95/EC and the EMC Directive 2004/108/EC. Type of machinery Heat Exchangers supplied with direct cranking fans...
  • Page 3 Dry cooler Type XP120 INDEX General description System of designations Receiving and fitting Installation Preventive maintenance Asarums Industri AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...

  • Page 4: General Description

    Dry cooler Type XP120 General description General This dry cooler is designed for outdoor location and is intended for refrigerants that are not aggressive in contact with copper. The cooler conforms to environment class 3. The cooler is provided with axial fans and the casing is made of aluminium sheeting as standard.

  • Page 5: Installation

    Dry cooler Type XP120 Installation The following instructions for installation should be read together with the technical leaflet. Location Place the cooler so that air can pass freely over the entire battery surface and if possible so that the wind direction does not affect the evacuation air because re-circulation could otherwise occur.
  • Page 6 2. The cooler is provided with eyebolts and shall only be lifted using these according to instructions on the cooler. 3. The legs for XP120 are not fitted on delivery. In the installation they are to be fitted to the two uppermost pairs of holes in the outermost part.
  • Page 7 Do not fit cable supports where they could damage the battery and thus cause leakage. XP120 is to be connected to the safety switch as follows: Unscrew the screws (1) with a screwdriver and remove the cover (2).

  • Page 8: Preventive Maintenance

    Dry cooler Type XP120 Preventive maintenance Warning. Make certain that the power supply is disconnected Changing the fan / motor 1. Switch OFF the safety switch and lock it. 2. Unscrew the fastening screws of the protective cover (1) and remove it.
  • Page 9 Dry cooler Type XP120 Preventive maintenance Assembling the fan / motor 1. Lift the motor (7) back into place on the motor shelf (8) and fit the screws (6), centre the motor in relation to the fan taper and tighten the screws.
  • Page 10 Dry cooler Type XP120 Preventive maintenance Warning. Make certain that the power supply is disconnected Cleaning the cooling battery 1. Remove the plate (1). 2. Cooling batteries that are lightly soiled can be cleaned by brushing and blowing with compressed air.
  • Page 11 Dry cooler Type XP120 Asarums Industri AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...
  • Page 12 Dry cooler Type XP120 Asarums Industri AB Tel: +46 454 334 00 2009-02-10 Södra Industrivägen 2 – 4 Fax:+46 454 320 295 SE – 374 50 Asarum Sweden...
