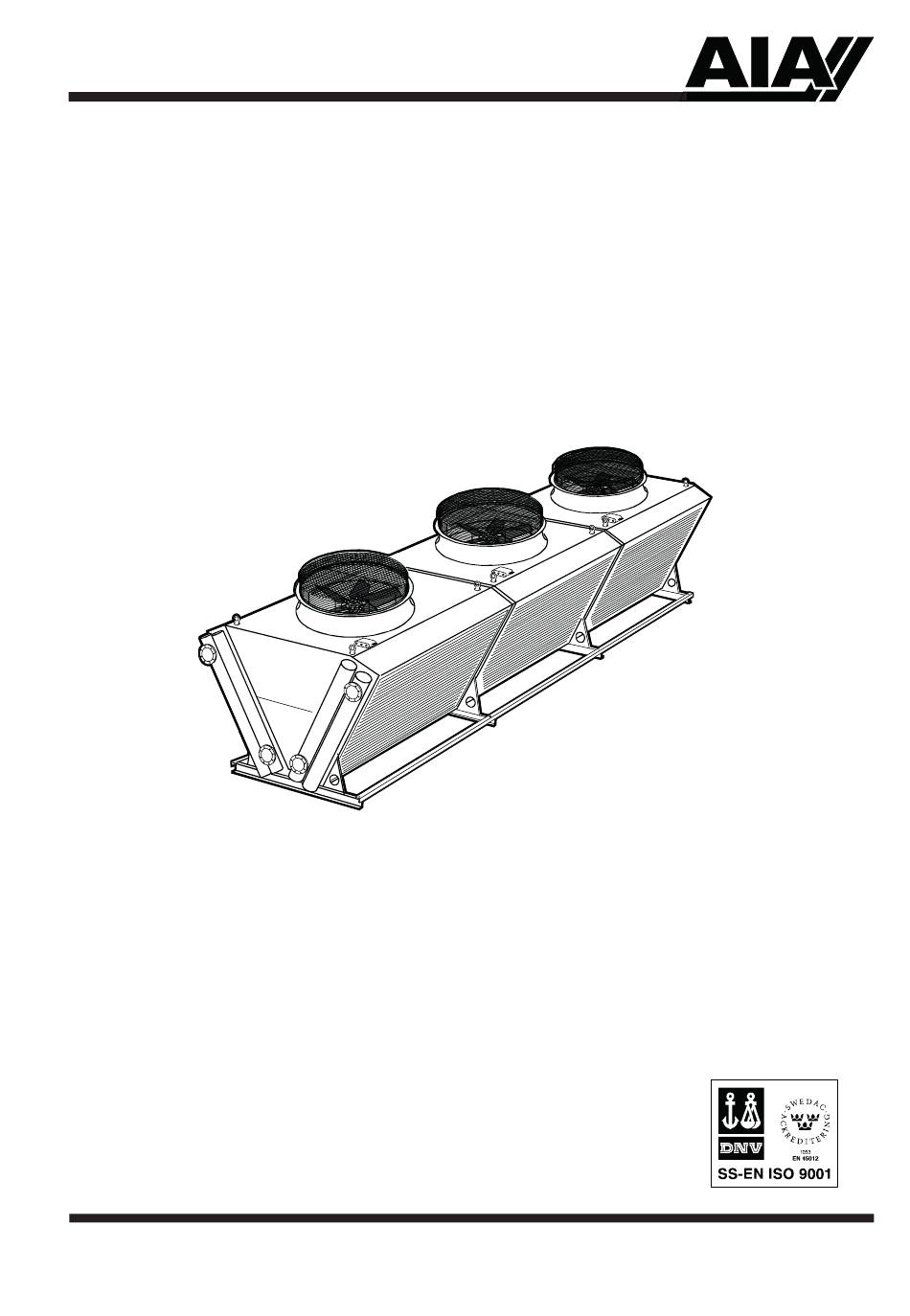

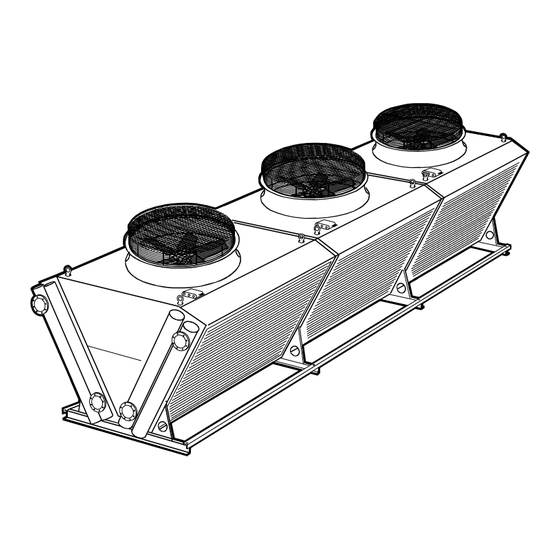

- Page 1 Dry Cooler Type DXP120 30267880 DXP120 Directions for use LU-VE Sweden AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax: +46 454 320 295 SE – 374 50 Asarum Sweden...
- Page 2 Dry Cooler Type DXP120 Declaration of Conformity Directives 2006/42/EC, 2006/95/EC (LVD), 2004/108/EC (EMC) Manufacturer LU-VE Sweden AB S. Industrivägen 2-4 S-374 50 ASARUM Sweden Technical file Tord Engberg Type of machinery Heat-exchangers supplied with direct cranking fans and in certain types of machinery control equipment is included.
- Page 3 Dry Cooler Type DXP120 INDEX General description System of designations Receiving and fitting Installation Preventive maintenance Lifting instruction LU-VE Sweden AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax: +46 454 320 295 SE – 374 50 Asarum Sweden...
-
Page 4: General Description
Dry Cooler Type DXP120 General description General This dry cooler is designed for outdoor location and is intended for refrigerants that are not aggressive in contact with copper. The cooler conforms to environment class 3. The cooler is provided with axial fans and the casing is made of aluminum sheeting as standard. -
Page 5: Installation
Dry Cooler Type DXP120 Installation The following instructions for installation should be read together with the technical leaflet. Location Place the cooler so that air can pass freely over the entire battery surface and if possi- ble so that the wind direction does not affect the evacuation air because re-circulation could otherwise occur. - Page 6 Dry Cooler Type DXP100/120 Dry Cooler Type DXP120 Air Cooled Condenser Type DCP100 Receiving and fitting The product is subjected to thorough inspection of quality and function before leaving the factory. If faults or damage due to transportation are detected on the product, the point of sale is to be contacted without delay.
- Page 7 Dry Cooler Type DXP100/120 Dry Cooler Type DXP120 Air Cooled Condenser Type DCP100 Installation Installations may only be made by authorised persons and in conformance with national standards. The cooler may not be connected to other voltage or frequency than its rated data.
-
Page 8: Preventive Maintenance
Dry Cooler Type DXP100/120 Dry Cooler Type DXP120 Air Cooled Condenser Type DCP100 Preventive maintenance Warning. Make certain that the power supply is disconnected Changing the fan / motor (DXP120) 1. Switch OFF the safety switch and lock it. 2. Unscrew the fastening screws of the protective cover (1) and remove it. - Page 9 Dry Cooler Type DXP100/120 Dry Cooler Type DXP120 Air Cooled Condenser Type DCP100 Preventive maintenance Warning. Make certain that the power supply is disconnected Cleaning the cooling battery 1. Remove the service cover (1). 2. Cooling batteries that are lightly soiled can be cleaned by brushing and blowing with compressed air.
-
Page 10: Lifting Instruction
Dry Cooler Type DXP100/120 Dry Cooler Type DXP120 Air Cooled Condenser Type DCP100 Lifting instruction 3180 mm 3100 mm (stl.1-3) 4700 mm (stl.4-6) 1900 mm 3180 mm 3180 mm (stl.7-9 ) 4770 mm (stl.10-12 ) 1900 mm 4770 mm 6360 mm (stl.13-15) 1900 mm LU-VE Sweden AB Tel: +46 454 334 00... - Page 11 Dry Cooler Type DXP120 LU-VE Sweden AB Tel: +46 454 334 00 Södra Industrivägen 2 – 4 Fax: +46 454 320 295 SE – 374 50 Asarum Sweden...
- Page 12 Dry Cooler Type DXP120 LU-VE Sweden AB Tel: +46 454 334 00 2015-04-17 Södra Industrivägen 2 – 4 Fax: +46 454 320 295 SE – 374 50 Asarum Sweden...
