Summary of Contents for Artusi CAMC45B
- Page 1 AP PL I ANC ES FO R L I VI NG CAMC45B OPERATION MANUAL...
-
Page 2: Setting Microwave Combi Operation
ARTUSI Family. This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance. -
Page 3: Table Of Contents
Ú Table of contents l a u n a m n o i t c u r t s n I ] n e [ Precautions ..................2 Defrosting programmes Defrosting programmes..............12 Addendum ..................2 Setting the time-setting options ...........13 Important safety instructions............3 Setting the timer ..................13 Causes of damage................6 Setting the cooking time..............13... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTA NT SA FETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, 6. WARNING: Liquids and other foods injury to persons or exposure to must not be heated in sealed containers excessive microwave oven energy when since they are liable to explode. - Page 5 20. The appliance shall not be cleaned 13. Eggs in their shell and whole hard- with a s team cleaner boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating 21. WARNING: Ensure that the appliance has ended.
- Page 6 overheating. (This is not applicable for 29. Do not use harsh abrasive cleaners sharp metal scrapers to clean the oven door appliances with decorative door.) glass since they can scratch the surface, which may result in shattering of the glass. WARNING: When the appliance is operated in the combination mode, children...
-
Page 7: Causes Of Damage
Causes of damage Caution! in the cooking compartment. An exception to this rule is a short Creation of sparks: Metal e.g. a spoon in a glass must be crockery test (see the section "Microwave, suitable crockery"). ■ kept at least 2 cm from the oven walls and the inside of the Using the appliance door for standing on or placing objects on: ■... - Page 8 Building in • Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appliance and may break off. 1. C arefully push the oven into the box, making sure that it is in the centre. 2.
-

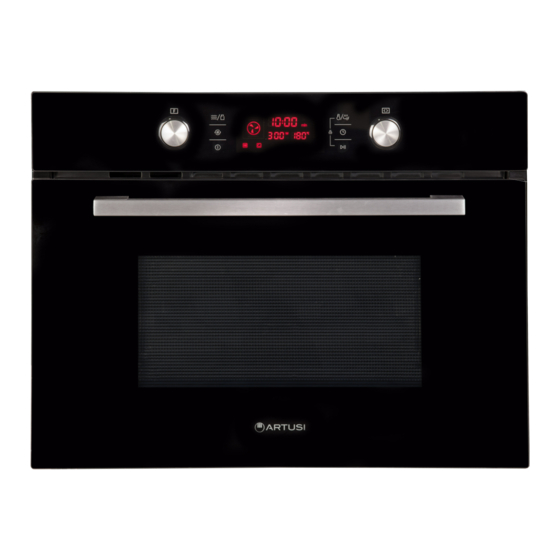

Page 9: Your New Appliance
Your new appliance Use this section to familiarise yourself with your new appliance. explained. You will find information on the cooking compartment The control panel and the individual operating controls are and the accessories. Control panel Touch keys and display The touch keys are used to set the various additional functions. -
Page 10: Accessories
Accessories Turntable As a surface for the wire rack. Food which particularly requires a lot of heat from underneath can be prepared directly on the turntable. The turntable can turn clockwise or anti-clockwise. Place the turntable on the drive in the centre of the cooking compartment. -
Page 11: Rapid Preheating
Rapid Preheating With rapid preheating, your oven reaches the set temperature The preheating process is complete particularly quickly. A signal sounds. The symbol in the display blinks. Put your Rapid Preheating is avail able for the following types of heating: dish in the oven. -
Page 12: Setting The Microwave
Setting the microwave Changing the cooking time Example: Microwave power setting 300 W, cooking time 17 minutes This can be done at any time. Touch the key. Turn the knob to change the cooking time. In the off state, touch the key to enter microwave Changing the microwave power setting function. -
Page 13: Defrosting Programmes
Defrosting programmes Auto Menu You can use the 2 defrosting programmes to defrost meat, poultry Programme no. Item Category and bread. Vegetables Fresh vegetables P 01** Set the function selector to automatic programmes Side dishes Potatoes-peeled/cooked P 02** The first programme number blinks in the display. Side dishes Potatoes-roasted P 03*... -
Page 14: Setting The Time-Setting Options
Setting the time-setting options Setting the clock Your oven has various time-setting options. You can use the key to call up the menu and s witch between the individual Once the appliance is connected, "00:00" will blink, buzzer will functions. A time-setting option that has already been set can ring once. -
Page 15: Care And Cleaning
■ Wash new sponge cloths thoroughly before use. Allow all surfaces to dry thoroughly before using the appliance again. Technical data Model CAMC45B Rated Voltage 240V~ 50Hz Rated Output Power(Microwave) 900W Rated Input Power(Microwave) 1650W... -
Page 16: Malfunction Table
Malfunction table Malfunctions often have simple explanations. Please refer to the Risk of electric shock! malfunction table before calling the after-sales service. Incorrect repairs are dangerous. Repairs may only be carried out If a meal does not turn out exactly as you wanted, refer to the by one of our trained after-sales engineers. -
Page 17: Energy And Environment Tips
Energy and environment tips Here you can find tips on how to save energy when baking and For longer cooking times, you can switch the oven off ■ roasting and how to dispose of your appliance properly. 10 minutes before the end of the cooking time and use the residual heat to finish cooking. - Page 18 Defrost Weight Microwave power setting in watts, Notes cooking time in minutes Fish fillet, fish steak or slices 400 g 300 W, 5 mins + 100 W, 10-15 mins Separate any defrosted parts Whole fish 300 g 300 W, 3 mins + 100 W, 10-15 mins 600 g 300 W, 8 mins + 100 W, 10-15 mins Vegetables, e.g.
- Page 19 Caution! Always cover the food. If you do not have a suitable cover for ■ your container, use a plate or special microwave foil. Metal e.g. a spoon in a glass must be kept at least 2 cm from the oven walls and the inside of the door. Sparks could irreparably Stir or turn the food several times during the heating time.
-
Page 20: Microwave Tips
Popcorn for the microwave Notes Make the settings as described in the table. You can adjust the ■ timings according to product and amount. Use heat-resistant, flat glass ovenware, e.g. the lid of an ■ ovenproof dish, a glass plate or a glass tray (Pyrex) So that the popcorn doesn't burn, briefly take the popcorn bag ■... -
Page 21: Baking Tips
Baking in tins Accessories Type of Temperature Microwave Cooking time heating °C power in watts in minutes Yeast dough with moist topping Round pizza tray 170-190 55-65 Plaited loaf with 500 g flour Round pizza tray 170-190 35-45 Stollen with 500 g flour Round pizza tray 160-180 60-70... -
Page 22: Roasting And Grilling
Roasting and grilling oven and allow it to rest for an additional 10 minutes. This allows better distribution of the meat juices. About the tables Poultry: ■ Turn the pieces of meat after of the cooking time has The temperature and roasting time depend on the type and elapsed. - Page 23 Pork Accessories Type of Temperature in Microwave power Cooking time in heating °C, grill setting in watts minutes Joint without rind Ovenware with lid 220-230 40-50 (e.g. neck), approx. 750 g* Joint with rind Ovenware without 190-210 130-150 (e.g. shoulder) approx. 1.5 kg* Fillet of pork, approx.
-
Page 24: Tips For Roasting And Grilling
Poultry Accessories Type of Temperature in Microwave power Cooking heating °C, grill setting in watts time in minutes Duck breast with skin, 2 pieces, Ovenware without lid 20-30 300-400 g each** Goose breast, 2 pieces, 500 g each* Ovenware without lid 210-230 25-30 Goose legs, 4 pieces, approx. -
Page 25: Convenience Products, Frozen
Convenience products, frozen The values in the table apply to food placed in a cold oven. ■ Do not lay chips, croquettes or potato röstis on top of each ■ Notes other. Turn half way through the cooking time. Observe the instructions on the packaging. ■... - Page 26 A.B.N. 45868077422 2. What is not Covered by the Warranty. Distributed by Eurolinx pty Ltd The Warranty does not apply if an artusi product is defective by a factor other than a defect arising Office: in the manufacture of the artusi product, including 48-50 Moore Street, Leichhardt N.S.W 2040...
- Page 27 Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 694 583) 01082016...
- Page 28 Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.
