Summary of Contents for Artusi AMC34BI

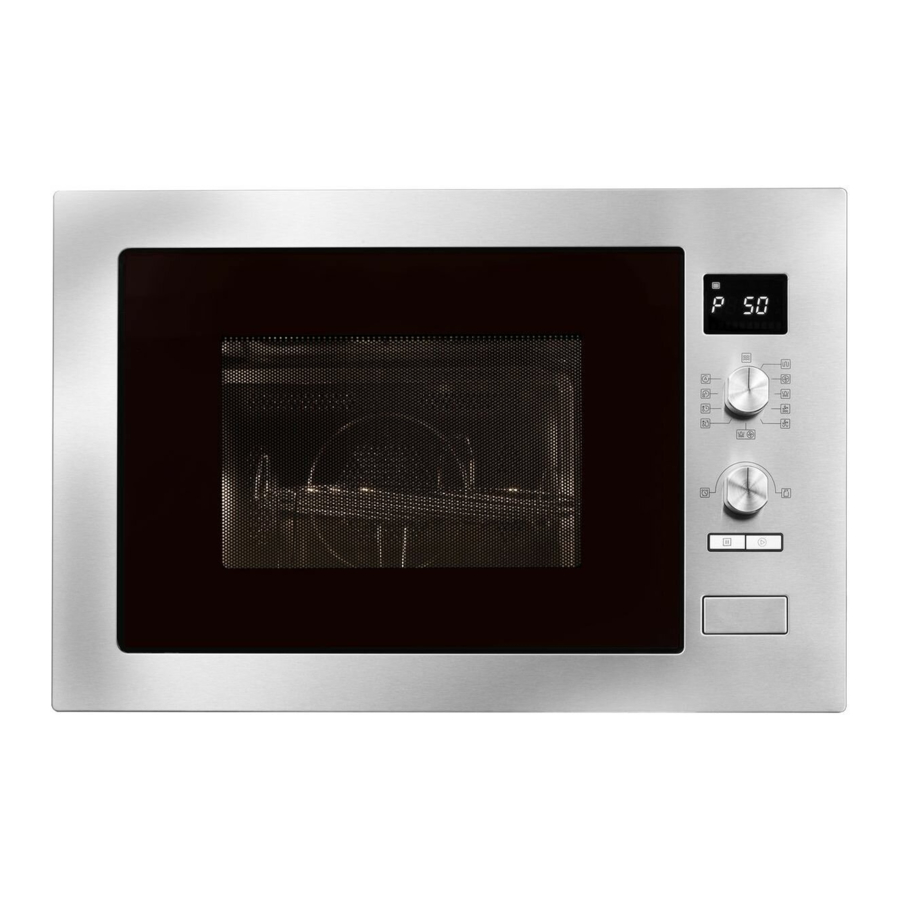

- Page 1 AP PL I ANC ES FO R L I VI NG AMC34BI OPERATION MANUAL...
- Page 2 ARTUSI Family. This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.
-
Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
If the MWO is not maintained in a good state of cleanliness, its surface could be degraded and affect its lifespan and lead to a dangerous situation. Sp ec i f i c at i o n s AMC34BI Model: 230-240V~50Hz Rated Voltage:... -
Page 4: Important Safety Instructions Warning
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode. - Page 5 keep an eye on the oven due to the possibility of ignition. 9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. 10. Do not overcook food. 11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc.
- Page 6 surface, and do not cover any vents on the oven. 20. Do not let cord hang over edge of table or counter. 21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
-
Page 7: Read Carefully And Keep For Future Reference
temperature-sensing probe.) 31.WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. 32.The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.) 33.Surface of a storage drawer... -
Page 8: Grounding Installation
To Reduce the Risk of Injury to Persons Grounding Installation DANGER Consult a qualified electrician or serviceman Electric Shock Hazard if the grounding instructions Touching some of the are not completely internal components can understood or if doubt exists cause serious personal as to whether the appliance injury or death. - Page 9 CLEANING Unplug the appliance from thepower supply before cleaning it. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in warm soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth .
- Page 10 Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
- Page 11 SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window...
-
Page 12: Installation And Connection
Installation and connection 1.This appliance is only intended for domestic use. 2.This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard. 3. Please observe the special installation instructions. 4.The appliance can be installed in a 600mm wide wall- mounted cupboard(at lease 550mm deep and 850mm off the floor). -
Page 13: Installation Instructions
Installation Instructions Please Read the Manual Carefully Before Installation SCREW TRIM-KIT PLASTIC COVER Please Note Electrical connection The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician. -
Page 14: Built-In Furniture
A. Built-in furniture The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 850 mm. Do not cover ventilation slots and air intake points. (45) (45) - Page 15 B. Install the Oven Do not trap or kink the power cord. Make sure that the oven is installed in the center of the cabinet. 2. Open the door; fix the oven to the cabinet with SCREW at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.
-
Page 16: Control Pannel
Control pannel Microwave function knob grill Auto menu convection clock/kitchen timer time defrost weight defrost selection knob Stop/Clear Start/+30Sec./Confirm... - Page 17 Operation Instructions When the microwave oven is on, the screen will display "0:00", 1. Clock Setting 1) Turn the function knob to ,the screen will display"00:00". 2) Press , the hour figures will flash. 3) Turn to adjust the hour figures, the input time should be within 0--23.
-
Page 18: Grill Cooking
Power 100% Display P100 NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0---1 : 5 seconds 1---5 : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes 4. - Page 19 Note: When half the grill time has passed , the oven bell sounds twice, this is normal In order to have better grilled food, you should turn the food over, close the door, and then press to continue cooking. 7. Combination Cooking 7.1.
-
Page 20: Defrost By Weight
8. Speedy Cooking 1) Press key to cook with 100% power level for 30 seconds. Each press on the key increase 30 seconds. The maximum cooking time is 95 minutes. 2) During the microwave, grill, combination,convection cooking and defrost by time, press to increase the cooking time by 30 seconds. - Page 21 Auto menu Chart Display Menu Weight Power 150g 250g 350g 100% Reheat 450g 600g 1 (about 230g) 2 (about 460g) 100% Potato 3 (about 690g) 150g 300g Meat 100% 450g 600g 150g 100% 350g Vegetable 500g 150g 250g 350g Fish 450g 650g 50g(with water 450g)
-
Page 22: Troubleshooting
Trouble shooting affected when the Never run the oven without any food inside. It is very dangerous. PN:16170000A68910... - Page 23 O ce: 2. What is not Covered by the Warranty. 48-50 Moore Street, Leichhardt N.S.W 2040 The Warranty does not apply if an artusi product Post: is defective by a factor other than a defect arising Locked Bag 3000, Annandale, N.S.W 2038...
- Page 24 Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 694 583) 01032014...
- Page 26 Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.
