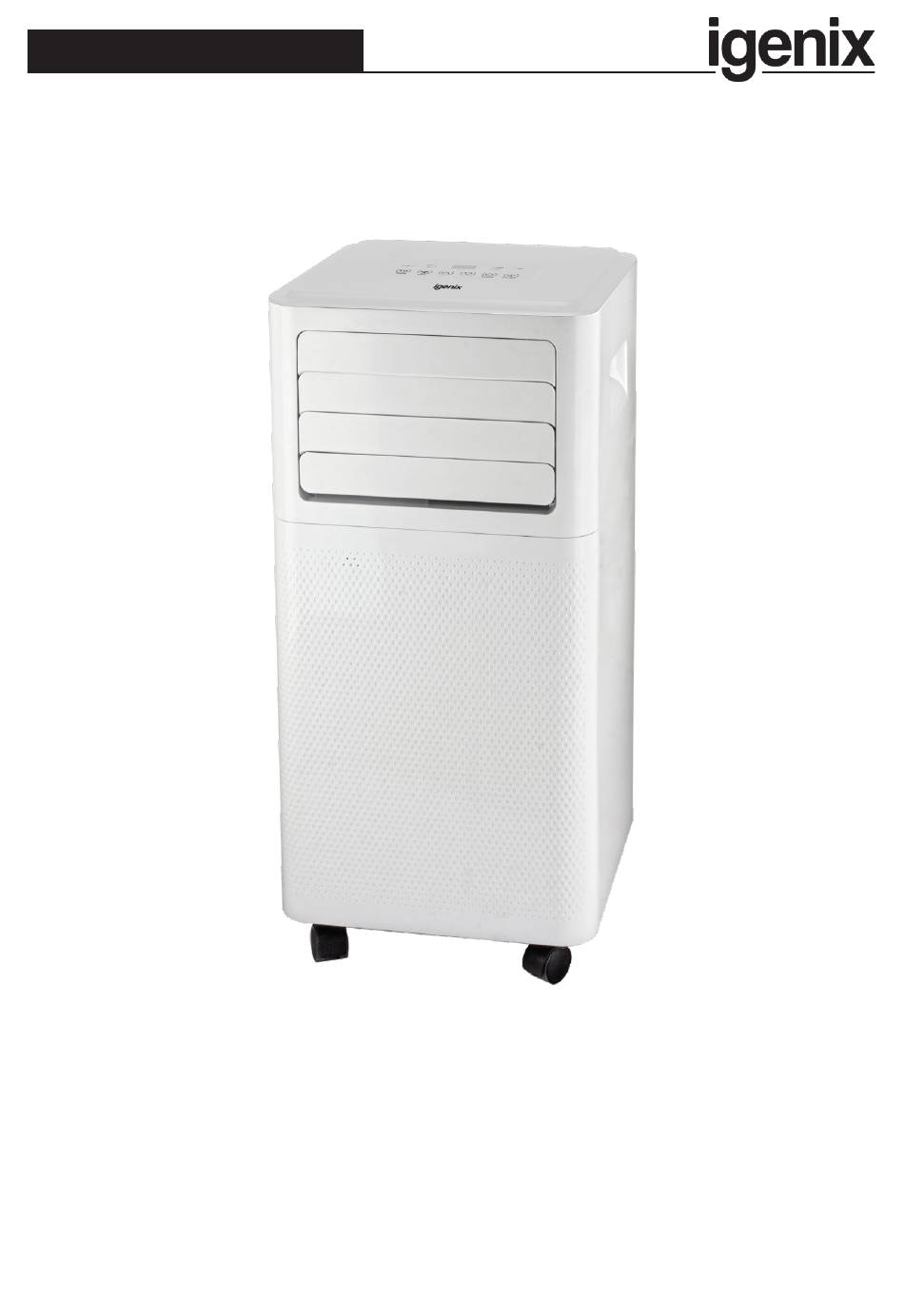

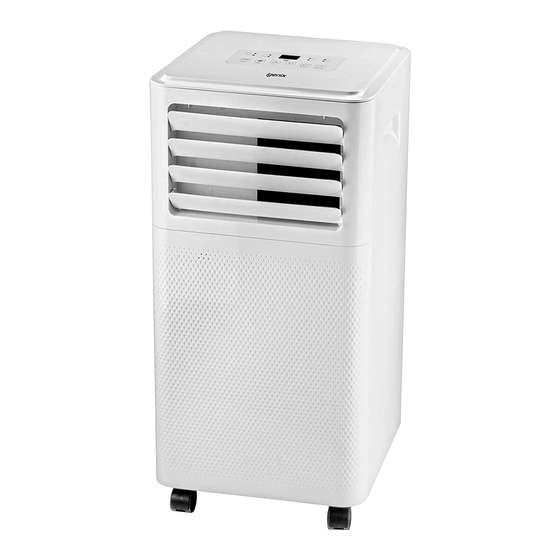

- Page 1 USER MANUAL 3-in-1 Portable Air Conditioner White IG9907 Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...
-
Page 2: Table Of Contents
Appliance Overview ..............6 Installation .................7-9 Operating Instructions ............10-14 Water Drainage ..............15-16 Cleaning and Maintenance ............. 17 Trouble Shooting Guide ............18 Error Codes ................19 Fuse Replacement ..............20 Disposal Information ............... 20 Igenix Warranty Information ........... 22-23... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Carefully read the instructions before operating the unit. Please retain this manual for future reference. Important: This product is intended for domestic and light office use ONLY and not for commercial, industrial or outdoor use. When using electrical appliances, basic safety precautions should always be followed: 1. - Page 4 15. Do not cover or obstruct the unit’s inlet and outlet grilles. 16. Do not insert fingers, pencils or any other objects into the opens of the unit. 17. Avoid restarting the appliance unless 3 minutes have passed since being turned off. This prevents damage to the compressor. 18.
-
Page 5: Specification
SPECIFICATION Model IG9907 Cooling Capacity (Btu) / (W) 7000Btu / 2050W Heating Capacity (Btu) / (W) Dehumidification at 30°C/80%RH (L/day) 19.2 Cooling Input Power (W) Heating Input Power (W) Air Flow Volume (m³/h) Power Supply (Hz) Compressor Rotary Refrigerant R290... -
Page 6: Appliance Overview
APPLIANCE OVERVIEW Front Back Control panel Intake grille Plug fixer Handle (both sides) Air outlet grille 10. Drainage point Castors Intake grille 11. Drainage point Louvres Power cable Accessories Parts Parts Name Quantity Exhaust hose connector Exhaust hose 1 set Exhaust hose adapter Window slider kit 1 set... -
Page 7: Installation
INSTALLATION Warning: Leave the unit to stand for 12 hours before connecting to the mains electricity supply after transport or when it has been tilted (e.g. cleaning), to allow the coolant gases time to settle. Unpacking • Open the box and remove all of the packaging and the exhaust assembly •... - Page 8 Positioning the Appliance This unit can easily be moved from one room to another on the rolling castor wheels, please note that whilst moving the unit, it should be kept in an upright position. • The exhaust heat must be expelled through a window, door or vented through a wall;...
- Page 9 Window Slider Kit Installation A. Panel B. Panel with one hole C. Screw to lock window kit in place Assembly: • Slide panel B into Panel A and size to window width. Ensure that the window kit assembly is free from gaps from gaps and/or air pockets when taking measurements.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Control Panel B B C C D D E E When box is lit up, this shows: 1. Timer button A. Timer enabled 2. Fan button B. Low speed fan selected 3. Increase temperature button C. High speed fan selected 4. - Page 11 Remote Control NOTE: Certain modes and functions can only be controlled via the remote control, therefore always ensure that the remote control is keep in a safe place to avoid accidentally losing or misplacing it. On/Off button Mode button Sleep button Swing button (not available on this model) Increase temp.
- Page 12 Modes The IG9907 features 3 main functions: Cooling, Fan and Dehumidifier. Important: The compressor will start approximately 3 minutes after the unit is turned on (this will help prolong the life of the compressor). After switching the unit off, please wait at least 3 minutes before turning the unit back on.
- Page 13 Sleep Mode NOTE: This mode is only available when using the remote control and cannot be controlled via the main control panel This function is intended for using the unit at night as it gradually reduces operation of the appliance. To set this function correctly: •...
- Page 14 Tips For Correct Use To get the best from your appliance, follow the below recommendations: • Close the windows (that aren’t being used for venting) and doors in the room to be air conditioned (Fig.9). When installing the appliance semi-permanently, you should leave a door slightly open (as little as 1 cm) to guarantee •...
-
Page 15: Water Drainage
WATER DRAINAGE With daily use, it is recommended to empty the unit approximately once a week. The unit can be drained manually or continuously, as explained below: Manual Draining (Fig.12) • Unplug the unit from power source. • Place a suitable container (not supplied with unit) under the lower drain plug. - Page 16 Middle Drainage When unit running in Dry mode, you can choose to drain the system from the middle drainage outlet as below: 1. Unplug the unit from the power source. 2. Remove the drain plug (Fig.16). While doing this, some residual water may spill so ensure you have a pan ready to collect the water (not supplied with unit).
-
Page 17: Cleaning And Maintenance
CLEANING & MAINTENANCE Cleaning the Cabinet Before any cleaning or maintenance, turn the appliance off by pressing the “ ” button on the control panel or remote control. Wait for a few minutes then unplug from the mains socket. You should clean the outer cabinet of the appliance with a slightly damp cloth, then dry with a dry cloth. -
Page 18: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services: Problem Solution • Check Trip Switch / Fuse • Wait for 3 minutes and start again, protective device may be preventing unit from working The unit will not switch on •... -
Page 19: Error Codes
ERROR CODES Error Code Solution • If this is displayed, contact your local authorised service centre. PROBE FAILURE (sensor damaged) • Empty the internal safety tank, following the instructions in the “End of Season Operations” paragraph. FULL TANK (safety tank full) -
Page 20: Fuse Replacement
MAINS PLUG FUSE REPLACEMENT Fuse Cover Fuse Replacement (Class I) This appliance must be eathed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place. DISPOSAL INFORMATION The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household... - Page 21 Igenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product.
-
Page 22: Igenix Warranty Information
To qualify for the 2 year warranty you must register your product within 30 days of purchase. The full Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk...
