USER MANUAL
50 Litre Air Cooler with LED Display
IG9750
Batch code:
Please read these instructions carefully before use and retain for future reference
Before switching on your appliance,
always check for any damage which may have been caused in transit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IG9750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iGenix IG9750

Summary of Contents for iGenix IG9750

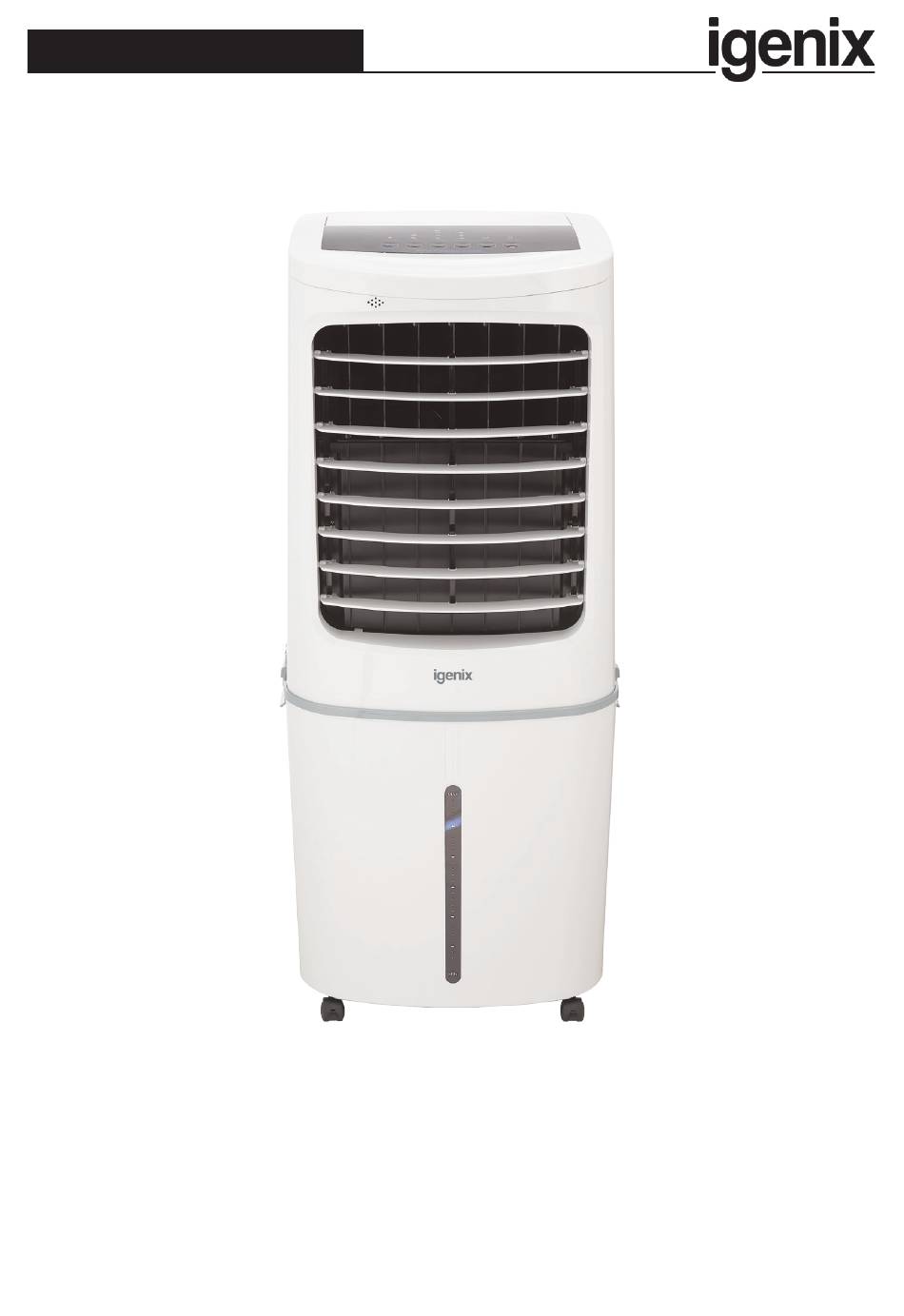

  • Page 1 USER MANUAL 50 Litre Air Cooler with LED Display IG9750 Batch code: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions ..........3-4 Specifications ................5 Assembly Instructions..............5 Operating Instructions............6-8 Cleaning and Maintenance ............9 Fuse Replacement ...............9 Trouble shooting Guide ............10 Disposal Information ............... 11 Terms and Conditions and Warranty Information ..12-13...

  • Page 3: Important Safety Instructions

    SAFETY INSTRUCTIONS Carefully read the instructions before operating the unit. Please retain this manual for future reference. Important: This product is intended for domestic and light office use ONLY and not for commercial, industrial or outdoor use. When using electrical appliances, basic safety precautions should always be followed: 1.
  • Page 4 17. It is not recommended to use flammable substances or vapours such as alcohol, insecticides, petrol, etc. whilst the unit is in use. 18. Do not clean the unit by spraying it or immersing in water. 19. Do not unplug the unit while it is working, this could damage the electronic circuits.

  • Page 5: Specifications

    TECHNICAL SPECIFICATION Model IG9750 Supply Voltage: 220-240V, 50Hz Max Output: 200W Max Airflow Volume: 798m³/h Water tank: 50 Litres Net Weight: 15.3kg ASSEMBLY INSTRUCTIONS Installation of the Water Tank: Control Panel Air Outlet Water Tank Fastener Take out the water tank...

  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS Remote Control Speed On/Off Humidification Oscillation Timer Modes Battery Installation Pull Notch Locking Latch IMPORTANT: Install the battery with the positive side facing up. IMPORTANT: Effective range of remote control: within 5m distance and 30 degree angle from front of product.
  • Page 7 Functions Normal - Normal function. There will be three speed levels. Natural - The wind will simulate the natural winds found outdoors and offer a unique natural wind setting Sleep - The wind will be slumberous. You can chose this mode when you sleep. Control Panel Press a key on the unit to activate a corresponding function.
  • Page 8 Add Water Add water from the top: Rotate Water Tank’s top cover, fill with water Add water from the side: Rotate Water Tank’s side cover, fill with water Filter Frame Fill water from top Water Tank Fill water from bottom Water Tank Ice Box Put the Ice Box into Water Tank...

  • Page 9: Cleaning And Maintenance

    CLEANING & MAINTENANCE The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed. 1. Before cleaning and assembling, fan must be unplugged. 2. To ensure sufficient air supply, the honeycomb filter and dust filter should be cleaned regularly. 3.

  • Page 10: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services: Problem Solution The unit will not switch on • Check Trip Switch / Fuse • Check if the plug is connected to mains socket correctly •...

  • Page 11: Disposal Information

    DISPOSAL INFORMATION The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

  • Page 12: Terms And Conditions And Warranty Information

    lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects.
  • Page 13 To qualify for the 2 year warranty you must register your product within 30 days of purchase. The full Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk...
  • Page 16 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
