- Page 1 Column Oven PRSO-V1-BR for Bruker Captive Spray Users Manual Revision 2016-04-14...
- Page 2 PRSOV1BR for Bruker Captive Spray Users Manual Sonation GmbH...
-
Page 3: Table Of Contents
Important safety instructions Scope of supply Functional description Oven Controller Installation Hardware installation Installation of mounting kit Mounting the oven to the source Connecting the controller Column loading Software Installation Installing the oven control software Control Using COControl PRSOV1BR for Bruker Captive Spray Users Manual Sonation GmbH... -
Page 4: Important Safety Instructions
• If a liquid should penetrate the electrical part of the oven/regulator it is to be set immediately out of operation and must be checked by a specialist. • The valid accident guarding regulations according to each country must be considered. • A repair of the oven may be accomplished only by a specialist. Sonation GmbH PRSOV1BR for Bruker Captive Spray Users Manual... -
Page 5: Scope Of Supply
Scope of supply The Sonation Column Oven PRSO-V1 and Bruker mounting kit for Captive Spray consists of the following parts: PRSOV1BR for Bruker Captive Spray: • Column Oven consisting of top and bottom part • Four conical inserts for column routing • Regulator • USB to serial converter •... -
Page 6: Functional Description

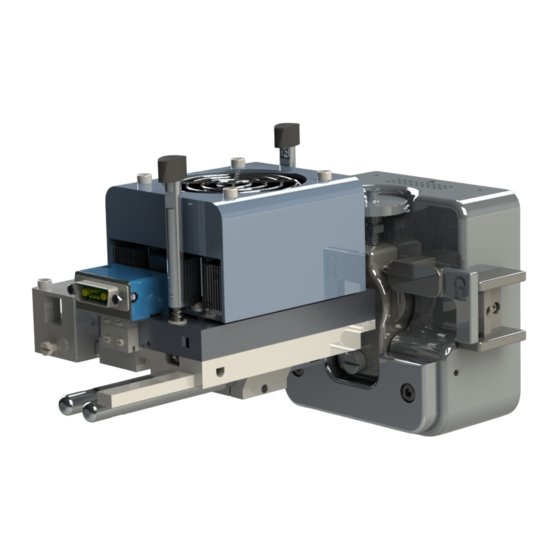

The conical inserts can be screwed into the bottom part as needed to route the column from the inlet to the outlet. Warning: During operation the surface of the oven can get very hot! Fig. 01: Open oven with Bruker Captive Spray Source Sonation GmbH PRSOV1BR for Bruker Captive Spray Users Manual... -
Page 7: Controller
The front view shows the connector for the connection between controller and oven. The rear view shows the connectors for the connection to the power supply, the PC and the contact closure interface. Fig. 02: Controller front view Fig. 03: Controller rear view PRSOV1BR for Bruker Captive Spray Users Manual Sonation GmbH... -
Page 8: Installation
Fig. 04: Mounting kit installation Note: Newer Captive Spray sources already have the mounting holes for the column oven. If your source does not have the mounting holes, please contact Sonation or Bruker. Fig. 05: Bruker Captive Spray Source with mounting holes Sonation GmbH PRSOV1BR for Bruker Captive Spray Users Manual... -
Page 9: Mounting The Oven To The Source
The wide side of the plug faces the top of the control module, do not force it in twisted. Connect the controller with the provided RS232 cable to an available com-port on your instrument PC. The remaining two open leads of this cable are connected to the 'contact PRSOV1BR for Bruker Captive Spray Users Manual Sonation GmbH... -
Page 10: Column Loading
Do not use any adhesive tape or other temperature sensitive materials inside the oven. Now reinstall the upper part of the oven and plug in the power cord from the power supply to a wall outlet. The oven is now ready to use. Sonation GmbH PRSOV1BR for Bruker Captive Spray Users Manual... -
Page 11: Software Installation
In the main view you can also adjust the two temperature setpoints "Temp. normal" and "Temp. high". PRSOV1BR for Bruker Captive Spray Users Manual Sonation GmbH... - Page 12 Sonation for an option code. But also keep in mind that a higher temperature range is stress for the Peltier-modules and can lead to a shorter lifetime. Sonation GmbH PRSOV1BR for Bruker Captive Spray Users Manual...
-
Page 13: Faq
Q: Is it possible to set up higher temperatures then 50°C or lower temperatures then 30°C A: Yes, it is possible. Please ask Sonation for an option code, but remember that the lifetime of the Peltier-elements will be lowered because of the additional thermal stress. - Page 14 Notes PRSOV1BR for Bruker Captive Spray Users Manual Sonation GmbH...
- Page 15 Sonation GmbH PRSOV1BR for Bruker Captive Spray Users Manual...
- Page 16 Sonation GmbH Alte Schulstr. 39 88400 Biberach Germany www.sonation.com...
