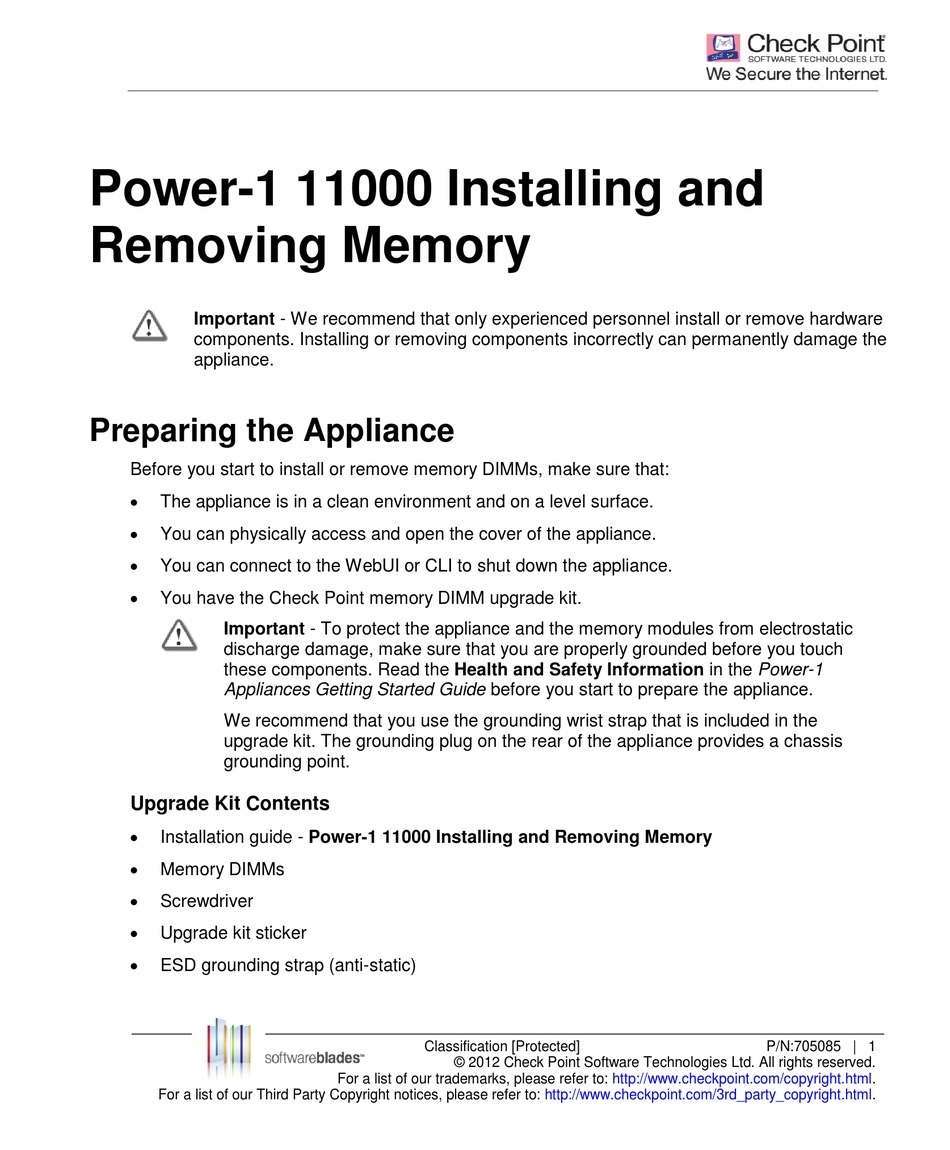

Power-1 11000 Installing and
Removing Memory
705085
Protected
2012
Important - We recommend that only experienced personnel install or remove hardware
components. Installing or removing components incorrectly can permanently damage the
appliance.

Preparing the Appliance

Before you start to install or remove memory DIMMs, make sure that:
The appliance is in a clean environment and on a level surface.
You can physically access and open the cover of the appliance.
You can connect to the WebUI or CLI to shut down the appliance.
You have the Check Point memory DIMM upgrade kit.
Important - To protect the appliance and the memory modules from electrostatic
discharge damage, make sure that you are properly grounded before you touch
these components. Read the Health and Safety Information in the Power-1
Appliances Getting Started Guide before you start to prepare the appliance.
We recommend that you use the grounding wrist strap that is included in the
upgrade kit. The grounding plug on the rear of the appliance provides a chassis
grounding point.

Upgrade Kit Contents

Installation guide - Power-1 11000 Installing and Removing Memory
Memory DIMMs
Screwdriver
Upgrade kit sticker
ESD grounding strap (anti-static)
