3.1 System Overview 3.2 Compatibility 3.3 Minimum Battery System Capacity 4.0 LYNK II CAN Hardware Termination and CAN Out PIN Configuration 9 4.1 LYNK II CAN Termination 4.2 LYNK II CAN Out - RJ45 PIN Assignments for Sol-Ark Inverters 4.2.1 Sol-Ark Outdoor Inverter-Charger PIN Assignments 4.2.2 Sol-Ark Indoor (Legacy) Inverter-Charger PIN Assignments...
1.0 SAFETY 1.1 Audience Configuration, installation, service, and operating tasks should only be performed by qualified personnel in consultation with local authorities having jurisdiction and authorized dealers. Qualified personnel should have training, knowledge, and experience in: • Installing electrical equipment •...
1.3 General Warnings WARNING ELECTRIC SHOCK AND FIRE HAZARD A lithium battery must be installed as specified. Do not disassemble or modify the battery. If the battery case has been damaged, do not touch exposed contents. There are no user-serviceable parts inside. Failure to follow these instructions may result in death or serious injury.
Sol-Ark Documentation Visit https://www.sol-ark.com/ for the most recent version of published documents. Discover Battery Documentation Visit http://discoverbattery.com for the most recent version of published documents, including Discover Lithium battery user manuals and the LYNK II Communication Gateway User Manual (805-0033).

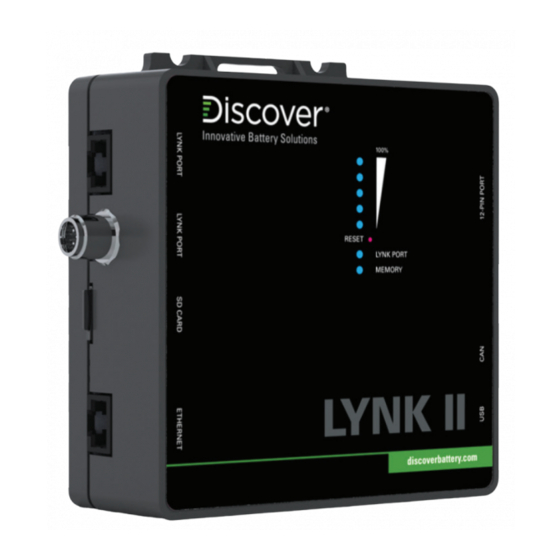

In solar applications, this allows the world’s best hybrid inverter-chargers and solar charge controller systems to optimize their control over the charging process. LYNK II also enables the remote monitoring of Discover Lithium battery SoC and data logging of multiple sites using the data monitoring services offered by off-grid inverter systems.
Discover AES 42-48-6650 Battery, Peak Power: 300 A DC (3 seconds), 130 A DC Continous Charge, as published in Discover AES User Manual (2022-05). Discover AES 44-48-3000 Battery, Peak Power: 219 A DC (3 seconds), 57 A DC Continous Charge, as published in Discover AES User Manual (2022-05).
NOTE LYNK II terminates the AEbus and LYNK Network by default. Do not remove the termination jumper inside LYNK II unless instructed to do so by Discover Battery. 4.2 LYNK II CAN Out - RJ45 PIN Assignments for Sol-Ark Inverters CAN signals (CAN H, CAN L, CAN GND) can be assigned to any PIN of the RJ-45 connector by adjusting the jumpers on the header board.
JUMPER GROUND CAN GND HIGH CAN L CAN H Figure 2. Sol-Ark Outdoor CAN Pin Assignment 4.2.1 Sol-Ark Outdoor Inverter-Charger PIN Assignments • 5K-P • 8K-P • 12K-P • 15K-P CAN Out Header Jumper RJ45 PIN H2 - 5 - 7 CAN L CAN H H3 - 8 -10...
JUMPER HIGH CAN L CAN H CAN GND GROUND Figure 3. Sol-Ark Indoor (Legacy) CAN Pin Assignment 4.2.2 Sol-Ark Indoor (Legacy) Inverter-Charger PIN Assignments • 8K Hybrid • 12K Hybrid CAN Out Header Jumper RJ45 PIN CAN L H2 - 5 - 7 CAN H H3 - 8 - 10 CAN GND...
LYNK II. • A network of batteries will communicate as one battery. • No more than one network of batteries may be connected to LYNK II. • Network termination is required for the system's proper functioning - note some batteries and devices may auto-terminate.
Page 13
Figure 4. AES batteries are not internally terminated. LYNK II is internally terminated. When using LYNK II with an AEbus network, ensure that a terminator is installed at the end opposite LYNK II. Figure 5. Helios LYNK II and HELIOS ESS batteries are both internally terminated. When installing...
COMM firmware version 1.4.3.0 or higher. Also, ensure that the CAN out pins for LYNK II are configured correctly. Insert one end of a CAT5 communication cable into the LYNK II CAN out port and the other end into the correct CAN port of the Sol-Ark inverter charger.
Page 15
Load Out AC In/Out Gen In Batt Disconnect CAN RS485 PV1+ PV1- PV2+ PV2- PV Input SOL-ARK BUS Figure 7. Indoor Sol-Ark 12K Hybrid (Legacy) PV1+ PV1- PV2+ PV2- PV Input SOL-ARK BUS Figure 8. Sol-Ark Outdoor 5K-P / 8K-P / 12K-P / 15K-P...
LYNK II will transmit real-time parameters from the Discover Lithium battery, including voltage, current, temperature, state of charge and fault conditions to a Sol-Ark Inverter. LYNK II will also transmit charge voltage and current requests from the Discover Lithium battery to a Sol-Ark Inverter.
Refer to the latest Discover Battery documentation for battery values and the latest Sol-Ark documentation for details on menu navigation and the setup procedure. 1. Set the Discover Lithium batteries to ON and set the inverter to ON. 2. Using the touch screen and keypad on the inverter, navigate from the SYSTEM SETUP menu to the BATT SETUP menu screen.
Open-Loop Battery Setup > Batt Menu (Two 130Ah AES Batteries with 12K-P) Batt Setup > Batt Set to the number of Discover Lithium batteries x Ah capacity Batt Capacity of each. For example, set to 260 Ah (2 x 130 Ah) for two AES 42-48-6650 batteries.
The recommended value for Max A Charge is 75% of the rated maximum charge current for the battery. Discover Lithium batteries do not require temperature compensation. Setting TEMPCP to O mv/C/Cell will disable inverter-charger controlled temperature compensation. Setting the BMS Lithium Batt parameter to Disable confirms open-loop operation. Setting the parameter to Enable confirms closed-loop operation.
Page 20
Batt Setup Batt Charge Discharge Smart Load Float V 53.6V StartV 48.0V 48.0V Absorbtion V 55.2V Start% Equalization V 55.2V 185 A 185 A 30 Days 0.0 hours Gen Charge Grid Charge :00 20min Generator Exercise Cycle Day & Time>> CANCEL Gen Force Figure 10.
After establishing the open-loop configuration, the LYNK II Communication Protocol is set, followed by the Sol-Ark closed-loop configuration. The Protocol Configuration Procedure 1. Download the current version of LYNK ACCESS software from the Discover Battery website to obtain the most up-to-date suite of available protocol...
3. Open LYNK ACCESS. Options for configuration and settings are found by selecting the LYNK tab. 4. Connect the LYNK II and open LYNK ACCESS. Ensure that you only have one LYNK device connected to the Computer. 5. Open LYNK ACCESS and select the LYNK tab. Select the blue gear icon in the upper right area of the CAN Settings tile.
Refer to the latest Discover Battery documentation for battery values and the latest Sol-Ark documentation for menu navigation and details on the setup procedure. 1. Set the Discover Lithium batteries to ON and set the inverter to ON. 2. Using the touch screen and keypad on the inverter, navigate from the SYSTEM SETUP menu to the BATT SETUP menu screen.
Page 24
Figure 12. Closed-Loop Battery Setup > Battery (Two 130Ah AES Batteries with 12K-P) Batt Setup > Batt Set to the number of Discover Lithium batteries x Ah capacity Batt Capacity of each. (eg. Set to 260 Ah for two AES batteries, each rated 130 Ah capacity).
This value is disabled (grey) when BMS Lithium Batt is TEMPCO enabled. Use Batt V Charged Disable Use Batt % Charged Enable No Battery Disable BMS Lithium Batt Enable and set to 00 value Activate Battery Enable The recommended value for Max A Charge is 75% of the rated maximum charge current for the battery.
Set to the same Amp value that was set for Max A Charge. Value is communicated by BMS in a closed-loop Float V configuration. Ignore the displayed value. Value is communicated by BMS in a closed-loop Absorption V configuration. Ignore the displayed value. The function is disabled in a closed-loop configuration.
Batt Setup > Discharge Set to user preference based on battery State-of-charge as a Shutdown percentage. The recommended minimum is 10 % Set to user preference based on battery State-of-charge as a Low Batt percentage. The recommended minimum is 20 % Set to user preference based on battery State-of-charge as a Restart percentage.
