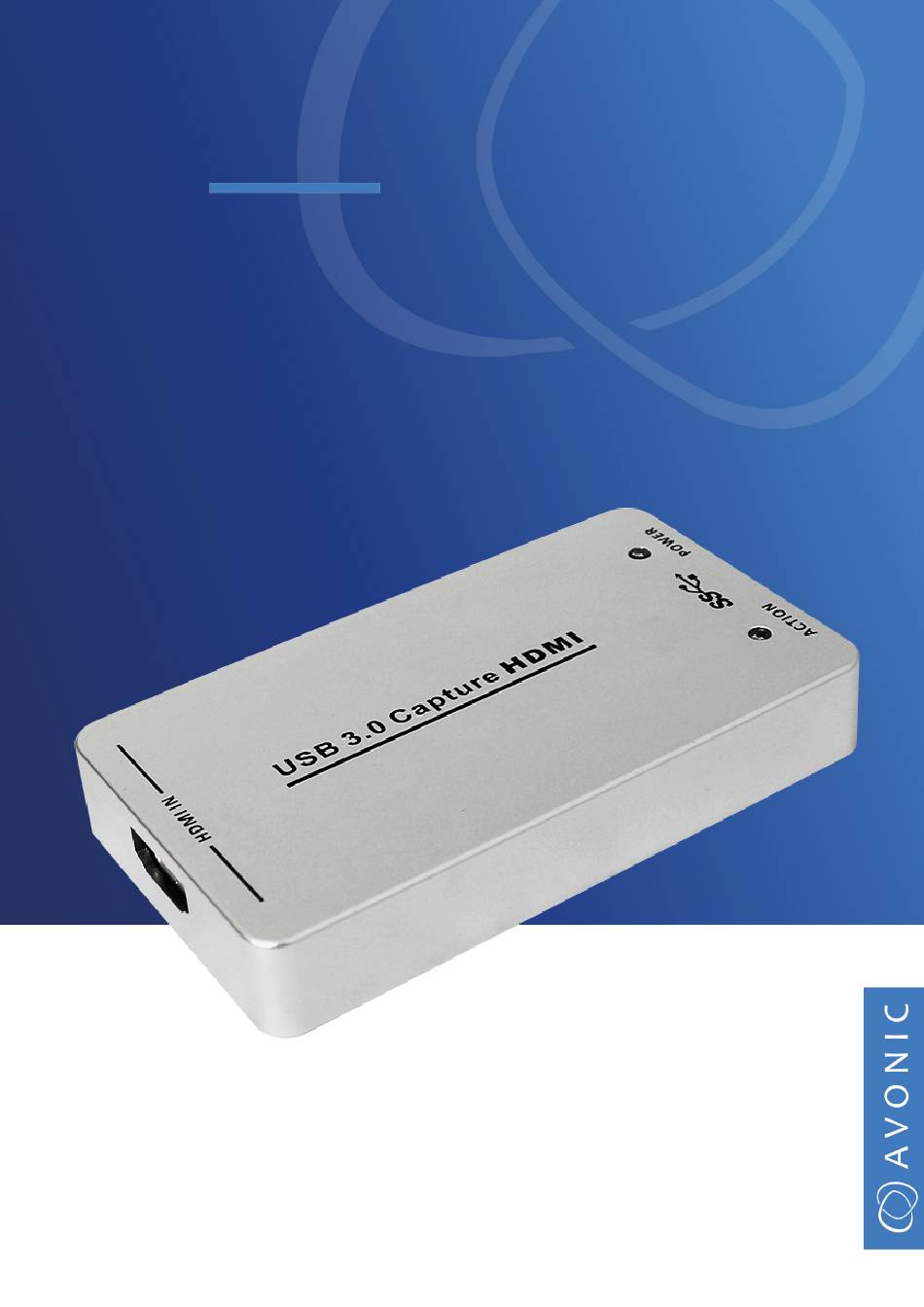

- Page 1 USER MANUAL Avonic Capture Device HDMI to USB3.0 CAP100 www.avonic.com • © July 2022 • Version 1.6...
-
Page 2: Disclaimer, Contact And Ce Marking
“look and feel” and arrangement of such Content, contained in this Manual is owned, controlled or licensed by or to Avonic, and is protected by trade dress, copyright, patent and trademark laws, and various other intellectual property rights and unfair competition laws. -
Page 3: Eu Declaration Of Conformity
- FCC Rules and Regulations for Information Technology Equipment FCC Part 15 Subpart B Class B 5. Standards EN 55032: 2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN55024:2010+A1:2015 6. Signed for and on behalf of Avonic: Delfgauw, 29th of November, 2018 Martijn van Bodegom, Product Manager... -
Page 4: Important Information
IMPORTANT INFORMATION Liability Avonic will NOT be held responsible for any damage or injury caused by unqualified persons carrying out these tasks, or by not following the instructions in this Manual. Intended Use and Non-Intended Use Installation The following applies to the installation of the CAP100: •... - Page 5 Symbol Meaning Description Information The information associated with symbol refers to a general remark or a reference to other documentation. Instruction This symbol refers to one or more user instructions. Recycling Specific parts of the Product can be re-used. Acronyms The following acronyms are used in this Manual: HDMI High Definition Multimedia Interface...
-
Page 6: Table Of Contents
Contents DISCLAIMER, CONTACT AND CE MARKING..................ii EU Declaration of Conformity......................iii IMPORTANT INFORMATION........................iv Liability............................iv Intended Use and Non-Intended Use..................iv Installation......................... iv Operation..........................iv Important Precautions..................... iv Symbols Used in This Manual....................iv Acronyms............................. v INTRODUCTION............................8 Purpose of This Manual......................8 Target Audience.........................8 Document Structure........................ - Page 7 Power Issues..........................25 Third party software issues....................... 25 APPENDIX - TECHNICAL DATA......................26 Specifications..........................26...
-
Page 8: Introduction
This Manual describes the safety precautions and the instructions for safe unpackaging, installation, operation, maintenance and disposal of the Avonic CAP100. In this Manual, the Avonic CAP100 is referred to as the 'Product'. Target Audience This Manual is developed for installation technicians who install the Product at client sites, and for IT professionals who are responsible for operating the Product. -
Page 9: Safety Instructions
Product. Keep the Manual in a safe place for future reference or download it from www.avonic.com. Failure to follow the SAFETY NOTES as described in this chapter could result in fire, electric shock, injury, or damage to the Product or other property. -
Page 10: Ventilation
• Don’t open this Product and don’t attempt to repair it yourself. Disassembling the Product may damage it or may cause injury to you. • If this Product is damaged, malfunctioning, or if it comes into contact with liquid, contact Avonic or an Avonic Authorized Service Provider. -
Page 11: Product Overview
PRODUCT OVERVIEW Description The Avonic CAP100 is a HDMI to USB 3.0 converter, capable of capturing an HDMI source in 1080p 60fps resolution. The CAP100 is a quick, high-quality solution that converts any HDMI signal to USB 3.0. The CAP100 is compatible with the UVC and UAC standards. It’s recognized by the computer as a video input without the need for installing additional drivers. -
Page 12: Unpacking
3. Return Procedure Package Contents The following tables contains an overview of the package contents of the Product. Quantity Description Avonic SKU 1 pc HDMI to USB3.0 Video Capture Dongle AV-CAP100 1 pc USB 3.0 cable (Type A to Type A) -
Page 13: Unpacking The Controller
The CAP100 should be in its protective foam as follows: Figure 4: Controller in Foam 3. Verify that the plastic bag is sealed. If this is NOT the case, contact Avonic and stop here. 4. Break the seal of the sealed bag. -
Page 14: Installation
INSTALLATION This chapter describes the installation of the AV-CAP100. Follow instructions below: 1. HDMI Input: Connect the HDMI source output like a camera, DVD, Set-top Box or Notebook. 2. USB3.0 Capture out: Connect the USB3.0 to the USB3.0 input of the computer or Notebook. -
Page 15: Operation
OPERATION The Avonic AV-CAP100 HDMI to USB3.0 Video Capture Dongle is based on UVC (USB video class) and UAC (USB audio class) standard. No additional drivers have to be installed. After installation in operating system (see “Intallation” on page 7), the relevant video and audio devices will be added. In the Windows Device Manager, for example, will appear two new devices: •... - Page 16 Network settings For streaming via your network: 1. Click on Media in the top bar 2. Click on Open Network Stream 3. Type the Network URL and click on Play It is possible that, when you have first started the VLC Media Player, you experience latency/ delay issues.
-
Page 17: Potplayer
Potplayer Turn on your camera and make sure that the CAP100 is connected to your computer. Follow the instructions below: 1. Open PotPlayer 2. Enlarge your window 3. Select “PotPlayer” 4. Click Preferences or press F5 5. Click on Device and Webcam 6. -
Page 18: Camera Application Of Windows
Camera application of Windows Turn on your camera and make sure that the CAP100 is connected to your computer. Follow the instructions below: 1. Press Windows Button 2. Type “Camera” and select Camera App. You will see automatically the image from the CAP100. If not, click the "change camera"... -
Page 19: Google Meet
Google meet To view the image from the CAP100 join or start a (new) meeting. Before adding others to the meeting, follow the instructions below: 1. Click on More Options 2. Click on Settings 3. Click on Audio and select USB3.0 Capture Audio 4. -
Page 20: Zoom
Zoom To view the image from the CAP100 in zoom, follow the instructions: 1. Start Zoom and make sure you are on the Home page 2. Click on the Settings button 3. Click on Video 4. Select USB3.0 Capture Video 5. -
Page 21: Skype For Business
Skype for Business Open Skype for business to view the image from the CAP100 and follow instructions below: 1. Go to Tools > Options 2. Click on Video Device 3. Select USB3.0 Capture Video in the dropdown menu. 4. Click on Audio Device 5. -
Page 22: Maintenance
MAINTENANCE Maintenance Take the following actions to maintain the CAP100: • If you will not be using the CAP100 for a long time, disconnect the USB cable to the outlet. • Use a soft cloth or tissue to clean the CAP100 cover. •... -
Page 23: Transport And Storage
TRANSPORT AND STORAGE The CAP100 must be transported in its original packaging box. Inside the box, it is recommended to wrap the CAP100 in the original plastic bag and to place it in the protective foam. Specific guidelines apply to the environmental temperature and humidity when operating and storing the CAP100. -
Page 24: Disposal And Recycling
In general, the term 'E-Waste' applies to items of all types of electrical and electronic equipment and its parts that have been discarded by the owner as waste without the intention of re-use. Avonic outsources the disposal and recycling of its E-Waste camera materials to the Stichting Open. https://stichting-open.org/... -
Page 25: Troubleshooting
1. Turn the CAP100 off and on again (disable USB cable and connect it again) and check if the problem persists. 2. If it does, contact Avonic. Power Issues No connectivity to third party video software and no power LED: 1. - Page 26 APPENDIX - TECHNICAL DATA Specifications Product General Specifications Input HDMI Input voltage DC5V (USB) HDMI Input Formats Power consumption 480i,480p,576i,576p,720p50,720p60,10 <= 2.5W 80i50,1080i60, 1080p24/25/30/50/60 Power supply Power connector USB3.0 type A Output Operating temperature USB3.0, *300-350MB/s (USB2.0, 0°C ~ 50°C *40MB/s for lower resolutions and Storage temperature -20°C ~ 70°C...
