1 Setting Up and Using Your PC

Connecting to a Network

Connecting to a Network
Let your Network Administrator know you are connecting your PC to
the network.

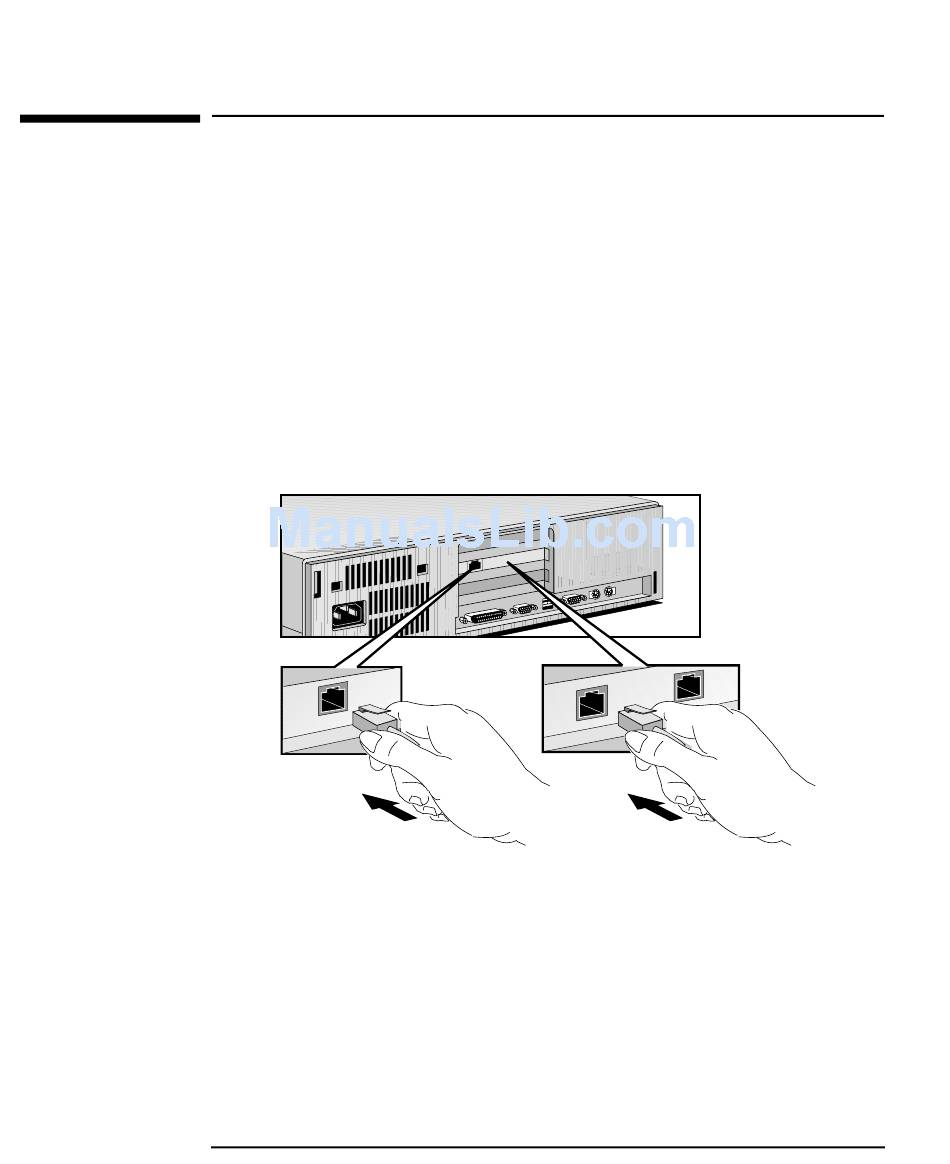

Your PC may have one or two LAN connectors, depending upon the
model. Connect the network cable to one of the RJ-45 UTP
(Unshielded Twisted Pair) LAN connectors.
Connect to the 10BT connector to use "remote power on".
•
Connect to the 10/100BT connector if you have 10/100BT hubs. This
•
connector provides the "remote wakeup" feature, but not "remote
power on".
10BT
Connector
To enable your network connection, refer to the online Network
Administrator Guide provided in the MIS kit for this product. This
guide also provides information about "remote power on" and "remote
wakeup".
4 English
10BT
Connector
10/100BT
Connector
