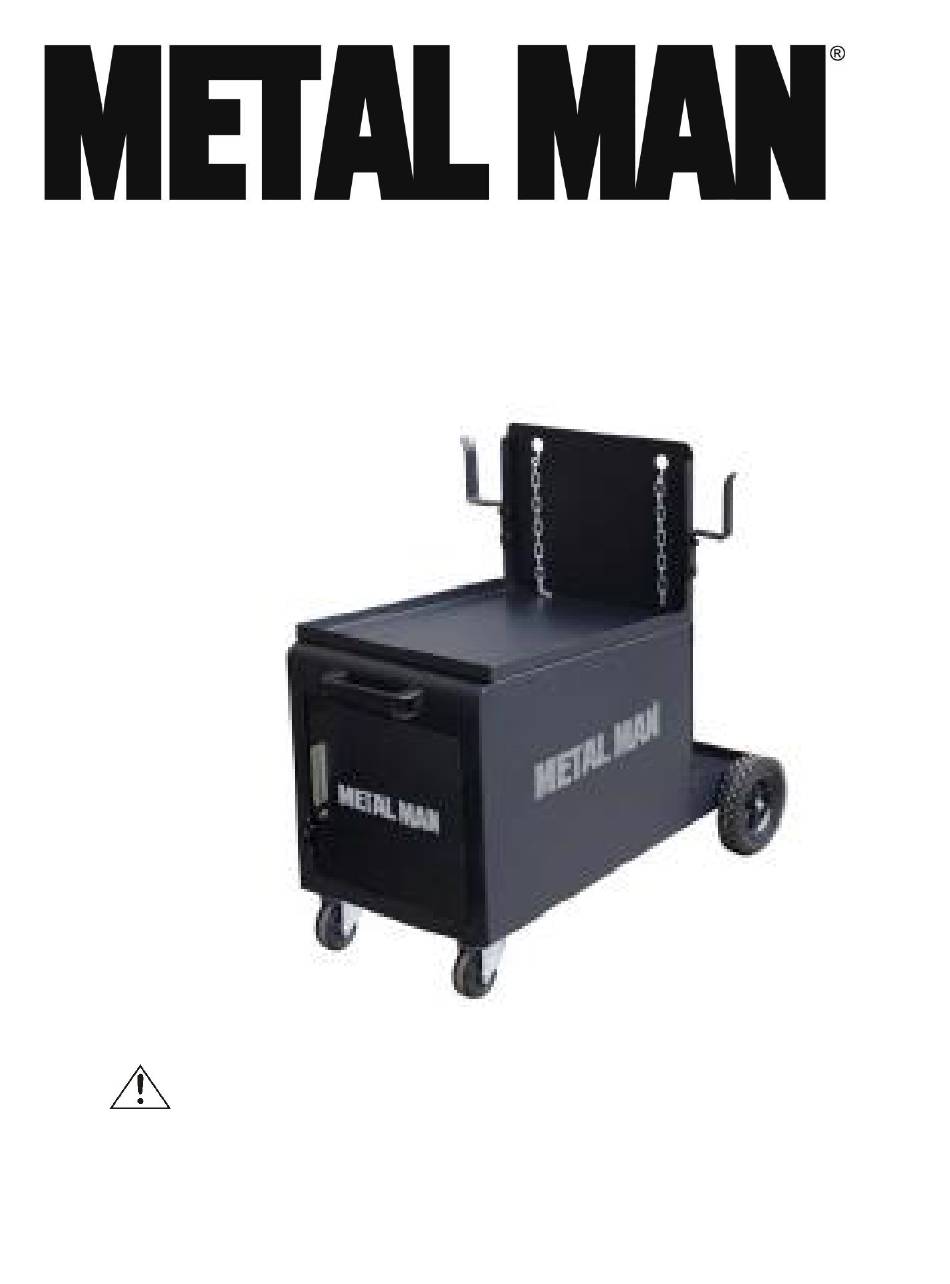

- Page 1 Economy Cabinet with Dorr OWNER’S MANUAL 8/2020 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
- Page 2 Limited to the warranty periods below, METAL MAN WORK GEAR CO will repair or replace the item under warranty that fails due to defects in material and workmanship. METAL MAN WORK GEAR CO must be notified within 30 days of the failure, so as to provide instructions on how to proceed with the repair of your unit and warranty claim processing.
- Page 3 GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury or death. CAUTION: Do not allow persons to operate or assemble this unit until they have read this manual and have developed a thorough understanding of how this unit works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.
- Page 4 DESCRIPTION Economy welding cabinet provides an integrated all-in-one solution for portable welder and a gas cylinder combination. Designed for welder to sit on the 21.2” X 13” area on top and holds up to 7-1/2” diameter shielding gas cylinders. Side hooks hold cables, helmets or MIG gun. The door is 12.2”...
- Page 5 DIAGRAM & PARTS DIAGRAM...
- Page 6 Reference # Part# Description Qty. 105100024 HEX BOLT M6*25 105100025 HANDLE 105100026 DOOR HANDLE 105100114 DOOR LATCH 115100001 DOOR 125100005 FRAME 105100028 TOP SHELF 105100029 NUT T4.2*9.5 105100035 CABLE WRAP 105100030 ADJUSTMENT SLIDE 105100031 HEX NUT M6 105100045 LOCK (SPRING) WASHER 105100033 FLAT WASHER 105100034...
- Page 7 Metal Man Work Gear Company 1760 Prospect Ct #120 Appleton, WI 54914 w w w . m e t a l m a n g e a r . c o m 8 8 8 - 7 6 2 - 4 0 4 5...
