METAL MAN
Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before
using product. Protect yourself and others by observing all safety information, warnings, and
cautions. Failure to comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference.
Description

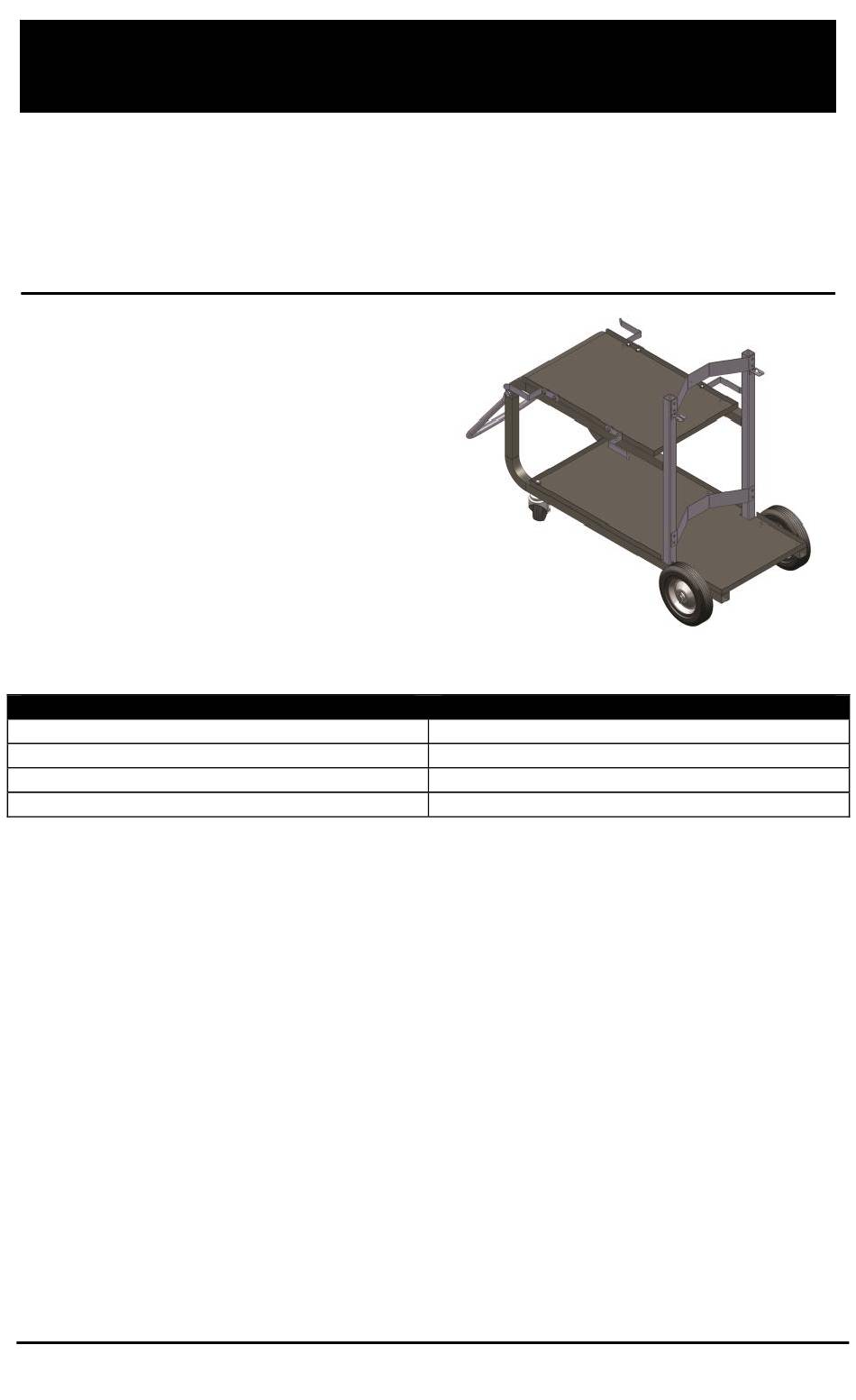

The Metal Man Heavy Duty Welding Cart is
designed for easy maneuvering of your welder
and large cylinder (up to 10 in. diameter). The
supplied cylinder chain helps keep your cylinder
secure. The large top shelf is 12-1/2 in. x 19-1/2
in. and accommodates most brands of all-in-one
wire welders. This unique cart features a fold
down handle for easier access to your welder
controls. Once in place, lock the front casters to
keep it put. Prevent weld cable damage and
eliminate tripping hazards by wrapping your
cables around the side cable wraps.
Specifications
Item
Packing Dimension (LXWXH) inch
Product Dimension (LXWXH) inch
Packing weight
Net weight
Assembly
1. Assemble bottom panel to frame 1 and frame 2 using the supplied sheet metal screws (#14).
2. Slide front caster through the hole in the frame and the hole in the bottom panel. Secure with
supplied hardware (#4, 5, 6). Repeat for each side.
3. Slide axle (#11) through mounting clips on both frame 1 and frame 2.
4. Slide flat washer (#9) onto axle, then slide rubber wheel (#8) onto axle. Add another flat
washer and then secure with the cotter pin (#10). Repeat for each side.
5. Secure top panel on frames sing supplied sheet metal screws (#14)
6. Secure cylinder supports (#13) to frames using supplied sheet metal screws (#14).
7. Use slotted holes in frame to tighten securement chain (#15) to fit bottle used.
8. Secure cable holders (#19) to top panel using supplied hardware (#17, 18, 20, 21).
9. Slide one cylindrical pin (#3) in large hole in frame just under the top panel. Then slide one
latch (#23) onto pin with cut out groove facing down toward floor. Add one flat washer (#9) and
secure with cotter pin (#10). Repeat for each side.
10. Line up hole in handle (#1) with hole in frame at the front of frame. Then slide one cylindrical
pin (#3) through the hole in the frame and the handle. Add a flat washer (#9) and secure with
cotter pin (#10). Repeat for each side.
Specification
36.5" x 27" x 3.7"
43" x 19.5" x 29"
46 lbs
43 lbs
1
UWC3HD
UWC3HD
