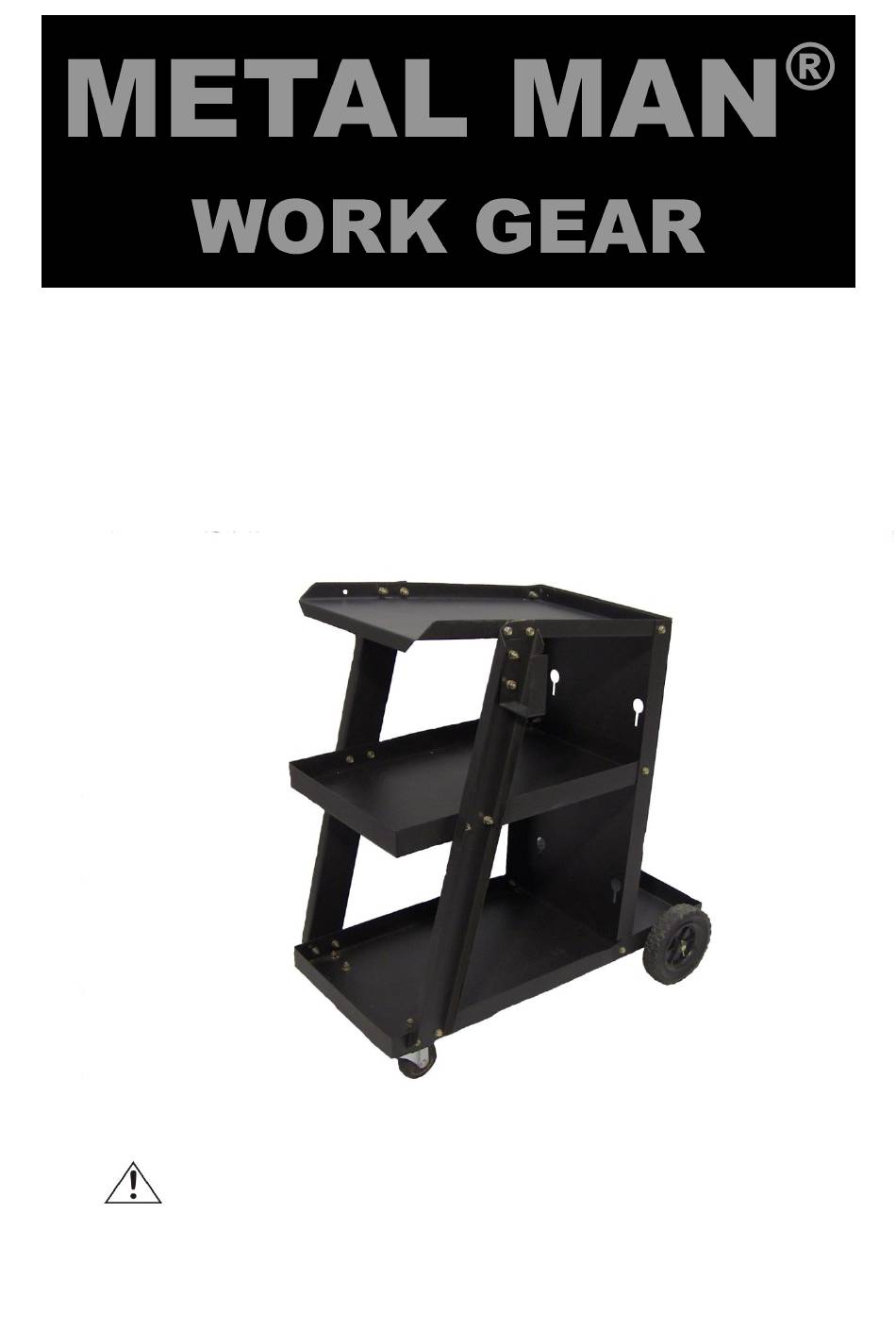

- Page 1 TTWC1 – THREE TIER WELDING CART OWNER’S MANUAL 5/2015 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
- Page 2 Limited to the warranty periods below, METAL MAN WORK GEAR CO will repair or replace the item under warranty that fails due to defects in material and workmanship. METAL MAN WORK GEAR CO must be notified within 30 days of the failure, so as to provide instructions on how to proceed with the repair of your unit and warranty claim processing.
- Page 3 GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury or death. CAUTION: Do not allow persons to operate or assemble this unit until they have read this manual and have developed a thorough understanding of how this unit works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.
- Page 4 Caster DESCRIPTION The METAL MAN TTWC1 Three-Tier Welding Cart is designed to hold portable wire welders, plasma cutters and TIG Welders. This cart features a three level design to help organize all your welding tools and accessories. It also has a set of cable wraps on each side for easy and safe storage of your welding cables.
- Page 5 ASSEMBLY CONTINUED 6. Repeat the last step for the 4 pre-drilled holes at the right front of the bottom panel. 7. For the remaining assembly steps, we recommend that all hardware be hand tightened to allow slight movement for the purpose of aligning pre-drilled holes to install hardware. At the end of these instructions, we will remind you to go back and snug all connections tight.
- Page 6 DIAGRAM & PARTS LIST Reference # Part# Description Qty. 105100125 TOP SHELF 105100126 CABLE HOLDER 105100127 MIDDLE SHELF 105100128 LEFT SIDE VERTICAL PANEL 105100129 BOTTOM 105100130 CASTER 105100131 HEX NUT 10510132 RIGHT SIDE VERTICAL PANEL 105100133 HEX BOLT 105100001 COTTER PIN 105100002 FLAT WASHER 105100003...
