Summary of Contents for AMSAN AM-TPL12CF

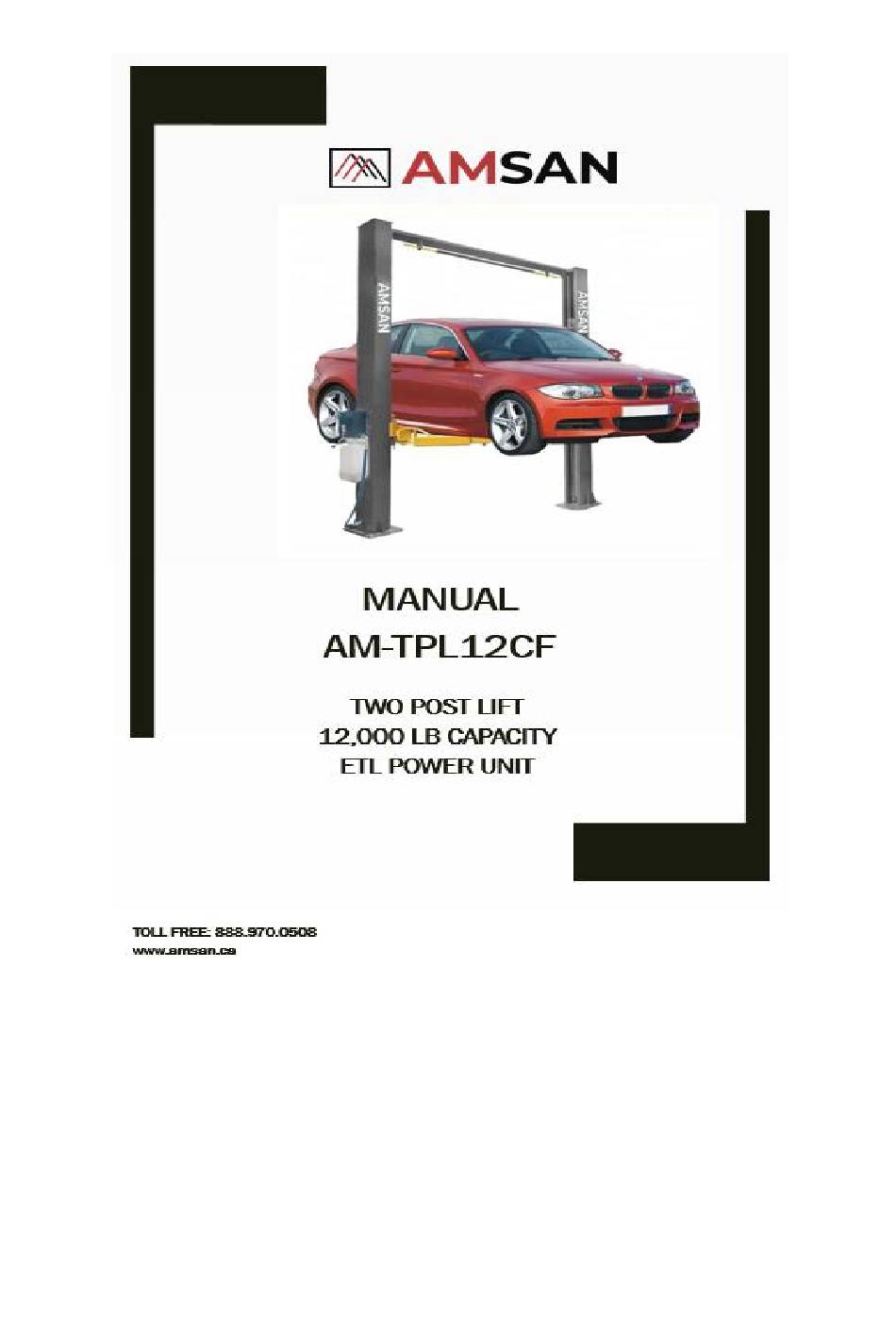

- Page 1 PLEASE READ THE PRODUCT MANUAL ENTIRELY BEFORE INSTALLING OR OPERATING THE LIFT.
- Page 2 Two Post Car Lift AM-TPL12CF IMPORTANT INFORMATION • The shipment should be thoroughly inspected as soon as it is received. Any freight damage or missing items must be noted on the freight bill before signing and reported to the freight carrier with a freight claim established. The buyer should claim compensation from the freight carrier if any damage happens to the equipment during shipping.
-
Page 3: Table Of Contents
Two Post Car Lift AM-TPL12CF TABLE OF CONTENTS Contents TABLE OF CONTENTS ..........................3 SAFETY INSTRUCTIONS AND CAUTIONS ......................4 CAUTION SIGNS ............................4 SAFETY CAUTION SIGNALS ........................5 LIFTING CAPACITY ........................... 6 SAFETY CHECK POINTS ..........................6 LIFT COMPONENTS ............................7 LIFT DIMENSIOINS ............................ -
Page 4: Safety Instructions And Cautions
Two Post Car Lift AM-TPL12CF SAFETY INSTRUCTIONS AND CAUTIONS CAUTION SIGNS Danger! Pay special attention to this symbol as it means unsafe or hazardous practices that can lead to severe personal injury or death or damage to the lift or property. -
Page 5: Safety Caution Signals
Two Post Car Lift AM-TPL12CF SAFETY CAUTION SIGNALS Please read Safety Signage carefully, understand, and remember them. -
Page 6: Lifting Capacity
Two Post Car Lift AM-TPL12CF LIFTING CAPACITY Rated Load AM-TPL12CF 12,000LB SAFETY CHECKPOINTS • Operators should read the manual carefully to avoid accidents. • Operators should be familiar with all functions and operating methods of the lift. • Check before operating and regular checks must be carried out too. -
Page 7: Lift Components
Two Post Car Lift AM-TPL12CF LIFT COMPONENTS Crossbeam Limit device Safety Steel wheel cable Main post Cable Sheave Swing arm Power unit Safety Rubber Pad cover post... -
Page 8: Lift Dimensioins
Two Post Car Lift AM-TPL12CF LIFT DIMENSIONS... -
Page 9: Techanical Specifications
Two Post Car Lift AM-TPL12CF TECHANICAL SPECIFICATIONS Overall Height 146.1" Time to Full Rise/Drop 50 seconds Maximum Lifting Height 76.8” Minimum Height of Rubber Pads 3.9” Adjusting Range of Arm 28.2”- 42.1” and 32.1” – 62.6” Width Between Posts 116.1”... -
Page 10: Installation
Two Post Car Lift AM-TPL12CF INSTALLATION SPACE REQUIREMENTS • You must consult the architectural plans for the desired location. Make sure there are no contradictions between how you want to build and how the plans indicate. • The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical wires, and so on. -
Page 11: Foundation Requirements
Two Post Car Lift AM-TPL12CF FOUNDATION REQUIREMENTS • Visually inspect the site where the lift is to be installed and check for cracked or defective concrete • DO NOT install or use this lift on expansion seams or cracked or defective concrete. -
Page 12: Anchoring Guidelines
Two Post Car Lift AM-TPL12CF ANCHORING GUIDELINES • Please carefully remove all the parts from the package. • Use a concrete rotary hammer drill with a 3/4” drill bit. Do not use excessively worn or incorrectly sharpened drill bits. • Keep the drill in a vertical position when drilling. Do not apply excessive pressure and let the drill do the work. -
Page 13: Tools Recommended
Two Post Car Lift AM-TPL12CF TOOLS RECOMMENDED ⚫ Chalk Line ⚫ ⚫ 4 Foot Level ⚫ Set of Metric Wrenches/Sockets ⚫ ⚫ Flat Screwdriver ⚫ Adjustable Wrench ⚫ ⚫ Hex-Key / Allen Wrench Set ⚫ Locking Pliers ⚫ ⚫ Needle Nose Pliers ⚫... - Page 14 Two Post Car Lift AM-TPL12CF • After removing the shipping racks holding the two columns together, remove both posts out of the skid and discard the steel racks. Remove all the parts. • Please make sure you read the space, foundation, and installation requirements and anchoring guidelines thoroughly in previous pages.
- Page 15 Two Post Car Lift AM-TPL12CF chalk lines as shown in the picture in the last step. • Drill the anchor holes only for one post with a 3/4-inch drill bit into concrete following the Anchoring guideline under the anchoring guideline section.
- Page 16 Two Post Car Lift AM-TPL12CF...
- Page 17 Two Post Car Lift AM-TPL12CF Step 5. Locking Latch Cable • Release Cable Connecting Picture Step 6. • Mount the power unit onto the power side post using bolts and nuts. • Connect two fittings to both cylinders and Connect T-fitting to the power unit.
- Page 18 Two Post Car Lift AM-TPL12CF Step 7. • Install four arms to both posts respectively. Swing the arms to make sure they are installed properly. Install the arm locking parts. Step 8. • For wiring the power unit, please consult with a certified electrician to connect...
- Page 19 Two Post Car Lift AM-TPL12CF Step 9. • Double-check all the nuts and bolts, make sure they are tight and secure. Adjust tensions to cable equally. NEVER OVER TIGHTEN the fittings. Step 10. • Fill hydraulic oil in the power unit reservoir about 10 liters. Recommended Oil: ISO 32, ISO 46 Hydraulic Oil or Dexron III ATF Step 11.
-
Page 20: Operation
Two Post Car Lift AM-TPL12CF OPERATION Please read the operation manual carefully before operating the lift. Only authorized technician should be operating the lift. • Clear the area immediately, if the Vehicle on the lift is suspected of falling. • Do not operate a lift that is damaged or in need of repair. -
Page 21: Maintenance
Two Post Car Lift AM-TPL12CF MAINTENANCE DAILY INSPECTION Item Maintenance Contents Solution Check if there are any damages to the Replace rubber pads. rubber pad on the four arms. Check if there is any problem with the Check and tighten all the loose nuts... -
Page 22: Monthly Inspection
Two Post Car Lift AM-TPL12CF MONTHLY INSPECTION Item Maintenance Contents Solution Inspect rubber pads Replace rubber pads if required Check hydraulic hoses and lines for Tighten the fittings and if needed possible lease or damage replace the hose Check if the pivot chain sheave and Add lubrication or adjust again. -
Page 23: Troubleshooting
Two Post Car Lift AM-TPL12CF TROUBLESHOOTING Problem Reason Solution • Incorrect Voltage to motor • Check the power fuse and Motor does not • Motor burned out work reset the breaker • See if the power unit wired • Fuses are blown •... - Page 24 Two Post Car Lift AM-TPL12CF vehicle lift • Fill the reservoir with manufacturing recommended • Add hydraulic oil • When the lift is There is not enough • Fix or replace the leaky hoses rising the speed hydraulic oil in the power...
-
Page 25: Hydraulic Drawing
Two Post Car Lift AM-TPL12CF HYDRAULIC DRAWING Name Name Name cylinder overflow valve gear pump one-way throttle unloading valve adjustable throttle valve valve one-way valve electric motor filter... -
Page 26: Exploded Drawing
Two Post Car Lift AM-TPL12CF EXPLODED DRAWING... - Page 27 Two Post Car Lift AM-TPL12CF...
-
Page 28: Maintenance Log
Two Post Car Lift AM-TPL12CF MAINTENANCE LOG...
