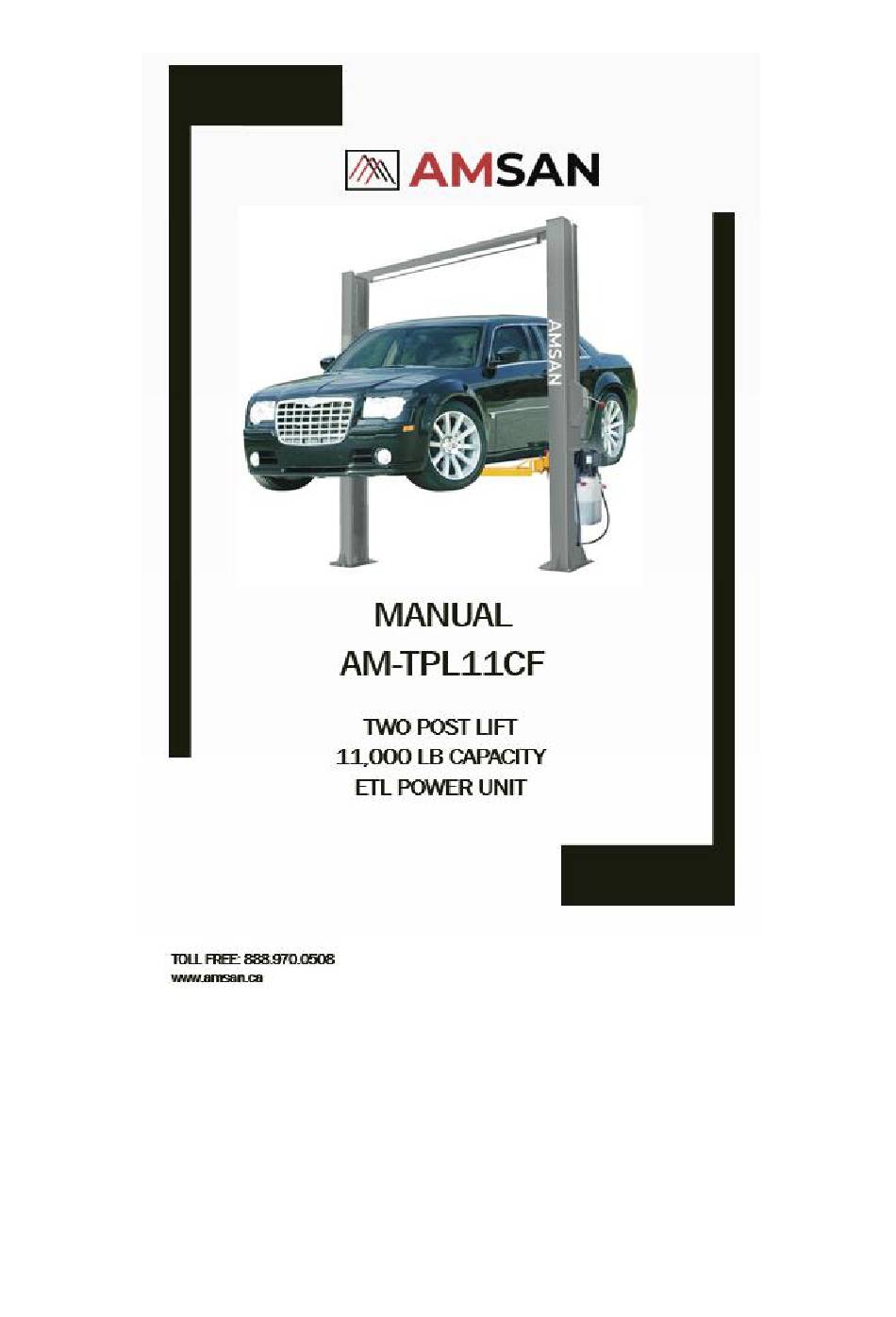

- Page 1 PLEASE READ THE PRODUCT MANUAL ENTIRELY BEFORE INSTALLING OR OPERATING THE LIFT.
- Page 2 Two Post Car Lift AM-TPL11CF IMPORTANT INFORMATION • The shipment should be thoroughly inspected as soon as it is received. Any freight damage or missing items must be noted on the freight bill before signing and reported to the freight carrier with a freight claim established. Buyer should claim the compensation from the freight carrier if any damage happens to the equipment during shipping.
-
Page 3: Table Of Contents
Two Post Car Lift AM-TPL11CF TABLE OF CONTENTS Contents TABLE OF CONTENTS ..........................3 SAFETY INSTRUCTIONS AND CAUTIONS ......................4 CAUTION SIGNS ............................4 SAFETY CAUTION SIGNALS ........................5 LIFTING CAPACITY ........................... 6 SAFETY CHECK POINTS ..........................6 LIFT COMPONENTS ............................7 LIFT DIMENSIOINS ............................ -
Page 4: Safety Instructions And Cautions
Two Post Car Lift AM-TPL11CF SAFETY INSTRUCTIONS AND CAUTIONS CAUTION SIGNS Danger! Pay special attention to this symbol as it means unsafe or hazards practices which can lead to severe personal injury or death or damage to the lift or property. -
Page 5: Safety Caution Signals
Two Post Car Lift AM-TPL11CF SAFETY CAUTION SIGNALS Please read Safety Signage carefully, understand and remember them. -
Page 6: Lifting Capacity
Two Post Car Lift AM-TPL11CF LIFTING CAPACITY Rated Load AM-TPL11CF 11,000LB In principle, the lift we design supports double direction placement of the car. SAFETY CHECK POINTS • Operators should read the manual carefully to avoid accidents. • Operators should be familiar with all functions and operating methods of the lift. -
Page 7: Lift Components
Two Post Car Lift AM-TPL11CF LIFT COMPONENTS Cross beam Limit device Safety Steel wheel cable Main post Cable Sheave Swing arm Power unit Safety Rubber Pad cover post... -
Page 8: Lift Dimensioins
Two Post Car Lift AM-TPL11CF LIFT DIMENSIOINS... -
Page 9: Techanical Specifications
Two Post Car Lift AM-TPL11CF TECHANICAL SPECIFICATIONS Overall Height 3680MM (144.88") Time to Full Rise/Drop 50 seconds Maximum Lifting Height 1928MM (75.91") Minimum Height of Rubber Pads 125MM (4.92") Adjustable Range of Rubber Pads 125MM (4.92")-165MM (6.50") R717 - 1070mm (28.23”- 42.13”) and Adjusting Range of Arm R815 - 1590mm (32.09”... -
Page 10: Installation
Two Post Car Lift AM-TPL11CF INSTALLATION SPACE REQUIREMENTS • You must consult the architectural plans for the desired location. Make sure there are no contradictions between how you want to build and how the plans indicate. • The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical wires and so on. -
Page 11: Foundation Requirements
Two Post Car Lift AM-TPL11CF FOUNDATION REQUIREMENTS • Visually inspect the site where the lift is to be installed and check for cracked or defective concrete • DO NOT install or use this lift on expansion seams or on cracked or defective concrete. -
Page 12: Anchoring Guidelines
Two Post Car Lift AM-TPL11CF ANCHORING GUIDELINES • Please carefully remove all the parts from the package. • Use a concrete rotary hammer drill with 3/4” drill bit. Do not use excessively worn or incorrectly sharpened drill bits. • Keep the drill in a vertical position when drilling. Do not apply excessive pressure and let the drill do the work. -
Page 13: Tools Recommended
Two Post Car Lift AM-TPL11CF TOOLS RECOMMENDED ⚫ Chalk Line ⚫ ⚫ 4 Foot Level ⚫ Set of Metric Wrenches/Sockets ⚫ ⚫ Flat Screwdriver ⚫ Adjustable Wrench ⚫ ⚫ Hex-Key / Allen Wrench Set ⚫ Locking Pliers ⚫ ⚫ Needle Nose Pliers ⚫... - Page 14 Two Post Car Lift AM-TPL11CF • After removing the shipping racks holding the two columns together, remove top and bottom of the posts out of the skid and discard the steel racks. • Remove all the parts and compare them with the parts list (at the end of this manual).
- Page 15 Two Post Car Lift AM-TPL11CF • Now stand up the other post opposite to the main power unit post inside the chalk lines as shown in the picture in last step. • Drill the anchor holes only for one post with 3/4-inch drill bit into concrete following Anchoring guideline under the anchoring guideline section.
- Page 16 Two Post Car Lift AM-TPL11CF Step 4. • Raise the sliding carriage on each column to the height about 23” to 32”, then drop it to the safety latch stops and make sure it will not fall again. • See the top of the carriage where you will find two holes age.
- Page 17 Two Post Car Lift AM-TPL11CF Step 5. Locking Latch Cable • Release Cable Connecting Picture Step 6. • Mount the power unit onto the power side post using bolts and nuts. • Connect two fittings to both cylinders and Connect T-fitting to the power unit.
- Page 18 Two Post Car Lift AM-TPL11CF Step 7. • Install four arms to both posts respectively. Swing the arms to make sure they are installed properly. Install the arm locking parts.
- Page 19 Two Post Car Lift AM-TPL11CF Step 8. • For wiring the power unit, please consult with a certified electrician to connect the power unit to a power outlet. Step 9. • Double check all the nuts and bolts, make sure they are tight and secure.
-
Page 20: Operation
Two Post Car Lift AM-TPL11CF OPERATION Please read the operation manual carefully before operating the lift. Only authorized technician should be operating the lift. • Clear the area immediately, if Vehicle on lift suspected of falling. • Do not operate a lift that is damaged or in need of repair. -
Page 21: Maintenance
Two Post Car Lift AM-TPL11CF MAINTENANCE DAILY INSPECTION Item Maintenance Contents Solution Check if there are any damages on Replace rubber pads. the rubber pad on four arms. Check if there is any problem on the Check and tighten all the loose nuts... -
Page 22: Monthly Inspection
Two Post Car Lift AM-TPL11CF MONTHLY INSPECTION Item Maintenance Contents Solution Inspect rubber pads Replace rubber pads if required Check hydraulic hoses and line for Tighten the fittings and if needed possible lease or damage replace the hose Check if the pivot chain sheave and Add lubrication or adjust again. -
Page 23: Trouble Shooting
Two Post Car Lift AM-TPL11CF TROUBLE SHOOTING Problem Reason Solution • Incorrect Voltage to motor • Check the power fuse and Motor does not • Motor burned out work reset breaker • See if power unit wired • Fuses are blown •... - Page 24 Two Post Car Lift AM-TPL11CF vehicle lift • Fill the reservoir with manufacturing recommended • Add hydraulic oil • When lift is There is not enough • Fix or replace the leaky hoses rising the speed hydraulic oil in the power...
-
Page 25: Hydraulic Drawing
Two Post Car Lift AM-TPL11CF HYDRAULIC DRAWING Name Name Name cylinder overflow valve gear pump one-way throttle unloading valve adjustable throttle valve valve one-way valve electric motor filter... -
Page 26: Exploded Drawing
Two Post Car Lift AM-TPL11CF EXPLODED DRAWING... - Page 27 Two Post Car Lift AM-TPL11CF...
-
Page 28: Maintenance Log
Two Post Car Lift AM-TPL11CF MAINTENANCE LOG...
