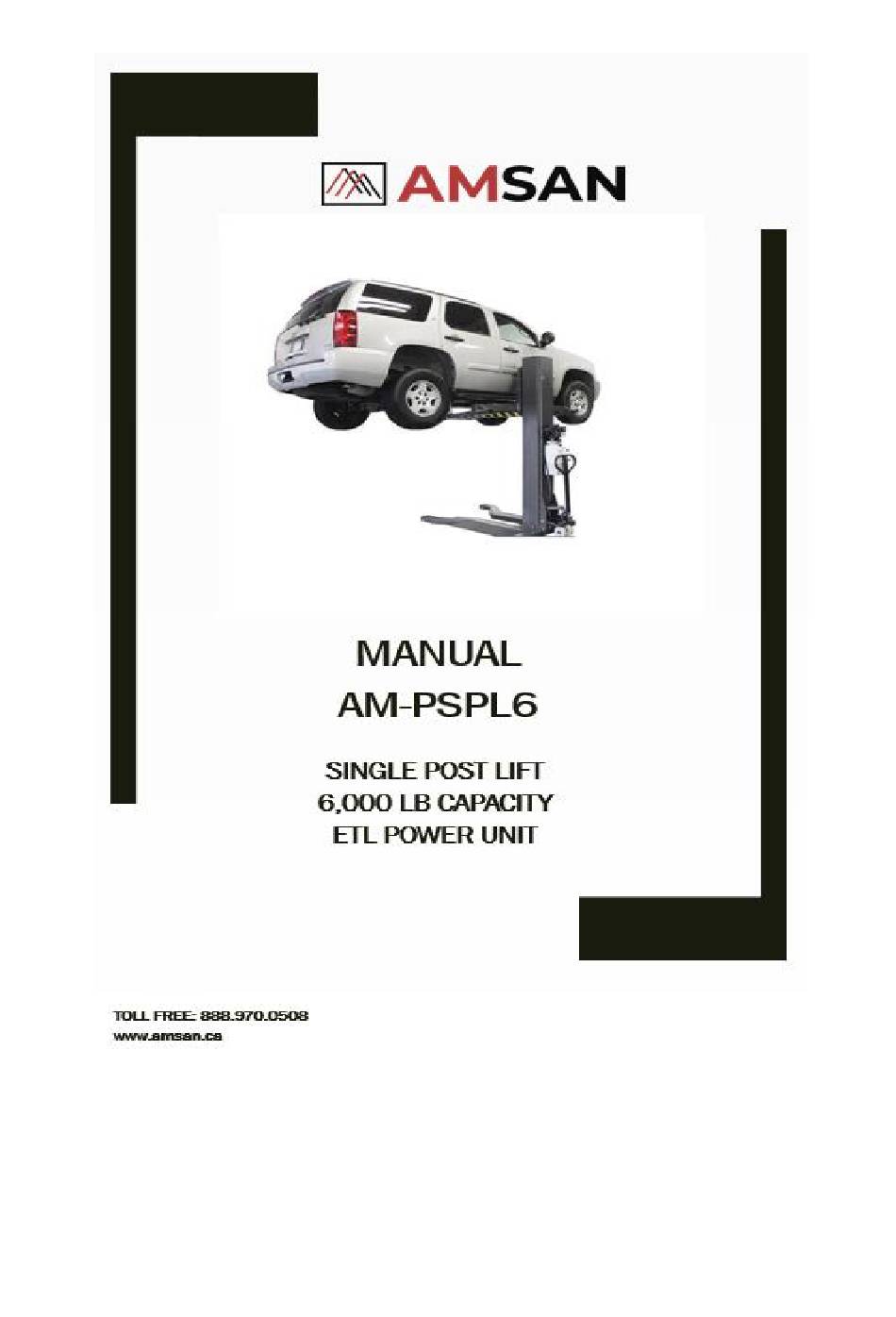

  • Page 1 PLEASE READ THE PRODUCT MANUAL ENTIRELY BEFORE INSTALLING OR OPERATING THE LIFT.
  • Page 2 Single Post Lift AM-PSPL6 IMPORTANT INFORMATION • The shipment should be thoroughly inspected as soon as it is received. Any freight damage or missing items must be noted on the freight bill before signing and reported to the freight carrier with a freight claim established. Buyer should claim the compensation from the freight carrier if any damage happens to the equipment during shipping.
  • Page 3: Table Of Contents

    Single Post Lift AM-PSPL6 TABLE OF CONTENTS Contents TABLE OF CONTENTS ..........................3 SAFETY INSTRUCTIONS AND CAUTIONS ......................4 CAUTION SIGNS ............................4 LIFTING CAPACITY ........................... 5 SAFETY CHECK POINTS FOR OPERATION ..................... 5 LIFT COMPONENTS ............................7 LIFT DIMENSIOINS ............................8 TECHANICAL SPECIFICATIONS ........................
  • Page 4: Safety Instructions And Cautions

    Single Post Lift AM-PSPL6 SAFETY INSTRUCTIONS AND CAUTIONS CAUTION SIGNS Danger! Pay special attention to this symbol as it means unsafe or hazards practices which can lead to severe personal injury or death or damage to the lift or property.
  • Page 5: Lifting Capacity

    Single Post Lift AM-PSPL6 LIFTING CAPACITY Rated Load AM-PSPL6 6,000LB SAFETY CHECK POINTS FOR OPERATION • Operators should read the manual carefully to avoid accidents. • Operators should be familiar with all functions and operating methods of the lift. • Check before operating and regular check must be carried out too.
  • Page 6 Single Post Lift AM-PSPL6 cycles. • Closely watch the vehicle and the lift during raising and lowering cycles. • Do not allow anyone to stay in lift area during raising and lowering cycles. • Do not allow anyone on lift or inside raised vehicle.
  • Page 7: Lift Components

    Single Post Lift AM-PSPL6 • Work on the electrical equipment by certified electricians only. • Ensure that ecologically harmful substances are disposed of only in accordance with • the appropriate regulations. • Do not use high pressure/steam jet cleaners or caustic cleaning agents.
  • Page 8: Lift Dimensioins

    Single Post Lift AM-PSPL6 LIFT DIMENSIOINS...
  • Page 9: Techanical Specifications

    Single Post Lift AM-PSPL6 TECHANICAL SPECIFICATIONS Overall Height 2522MM (99.29") Maximum Lifting Height 1800MM (70.87") R500 - 685mm (19.69”- 26.97”) and R630 - Adjusting Range of Arm 945mm (24.80” – 37.20”) Overall Length 2300MM (90.55") Power Unit 110 VAC / 1PH / 60HZ Noise Level ≤70dB(A)
  • Page 10: Installation

    Single Post Lift AM-PSPL6 INSTALLATION SPACE REQUIREMENTS • The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical wires and so on. Also make there is enough clearance around the lift for driving vehicles getting on or off the lift.
  • Page 11: Installation Instructions

    Single Post Lift AM-PSPL6 INSTALLATION INSTRUCTIONS ONLY TRAINED INSTALLERS SHOULD PERFORM LIFT INSTALLATION WORK. 90% components were pre-assembled before shipment and packed with blister packing in steel frame. Arms, adapters, and rubber pads were put in the lift. Power unit was packed in carton box separately, power unit stand was packed and fixed on above the lifts.
  • Page 12: Operation

    Single Post Lift AM-PSPL6 OPERATION Please read the operation manual carefully before operating the lift. Only authorized technician should be operating the lift. • Clear the area immediately, if Vehicle on lift suspected of falling. • Do not operate a lift that is damaged or in need of repair.
  • Page 13 Single Post Lift AM-PSPL6 • Pull the safety unlock handle to make the fliting platform unlocked. • To adjust lifting pad, turn it anticlockwise to make it rise (adjustment distance of 100mm) • Press the “green” button again and pay attention to lifting arm and the vehicle lifted until lifting is safe and reliable.
  • Page 14 Single Post Lift AM-PSPL6 Movable lift pushed into the underside of the vehicle Vehicle driving onto the lift Use lifting arm Movable Lift • According to the position under the vehicle chassis where the lifting arm is located, the supporting arm on the lifting arm (close to the vertical post) may be pushed and pulled up and down or to left and right: •...
  • Page 15 Single Post Lift AM-PSPL6 Control unit Release handle...
  • Page 16: Maintenance

    Single Post Lift AM-PSPL6 MAINTENANCE DAILY INSPECTION Item Maintenance Contents Solution Check if there are any damages on Replace rubber pads. the rubber pad on four arms. Check if there is any problem on the Check and tighten all the loose nuts...
  • Page 17: Monthly Inspection

    Single Post Lift AM-PSPL6 MONTHLY INSPECTION Item Maintenance Contents Solution Inspect rubber pads Replace rubber pads if required Check hydraulic hoses and line for Tighten the fittings and if needed possible lease or damage replace the hose Check if the pivot chain sheave and Add lubrication or adjust again.
  • Page 18: Trouble Shooting

    Single Post Lift AM-PSPL6 TROUBLE SHOOTING Problem Reason Solution • Incorrect Voltage to motor • Check the power fuse and Motor does not • Motor burned out work reset breaker • See if power unit wired • Fuses are blown •...
  • Page 19 Single Post Lift AM-PSPL6 vehicle lift • Fill the reservoir with manufacturing recommended • Add hydraulic oil • When lift is There is not enough • Fix or replace the leaky hoses rising the speed hydraulic oil in the power...
  • Page 20: Hydraulic Drawing

    Single Post Lift AM-PSPL6 HYDRAULIC DRAWING Name Name Name Tank Start buffer valve Relief valve Filter One-way valve Anti-explosion valve Oil pump Release valve Motor Return oil throttle valve...
  • Page 21: Circuit Diagram

    Single Post Lift AM-PSPL6 CIRCUIT DIAGRAM...
  • Page 22: Exploded Drawing

    Single Post Lift AM-PSPL6 EXPLODED DRAWING...
  • Page 23 Single Post Lift AM-PSPL6 NAME NAME top plate Front arm out tube assembly hexagonal screw From arm assembly washer Toothed plate spring washer Plastic ball Limit switch socket handle Limit switch Pull rod Column assembly Rake tooth Power unit Hexagonal screw...
  • Page 24: Maintenance Log

    Single Post Lift AM-PSPL6 MAINTENANCE LOG...
