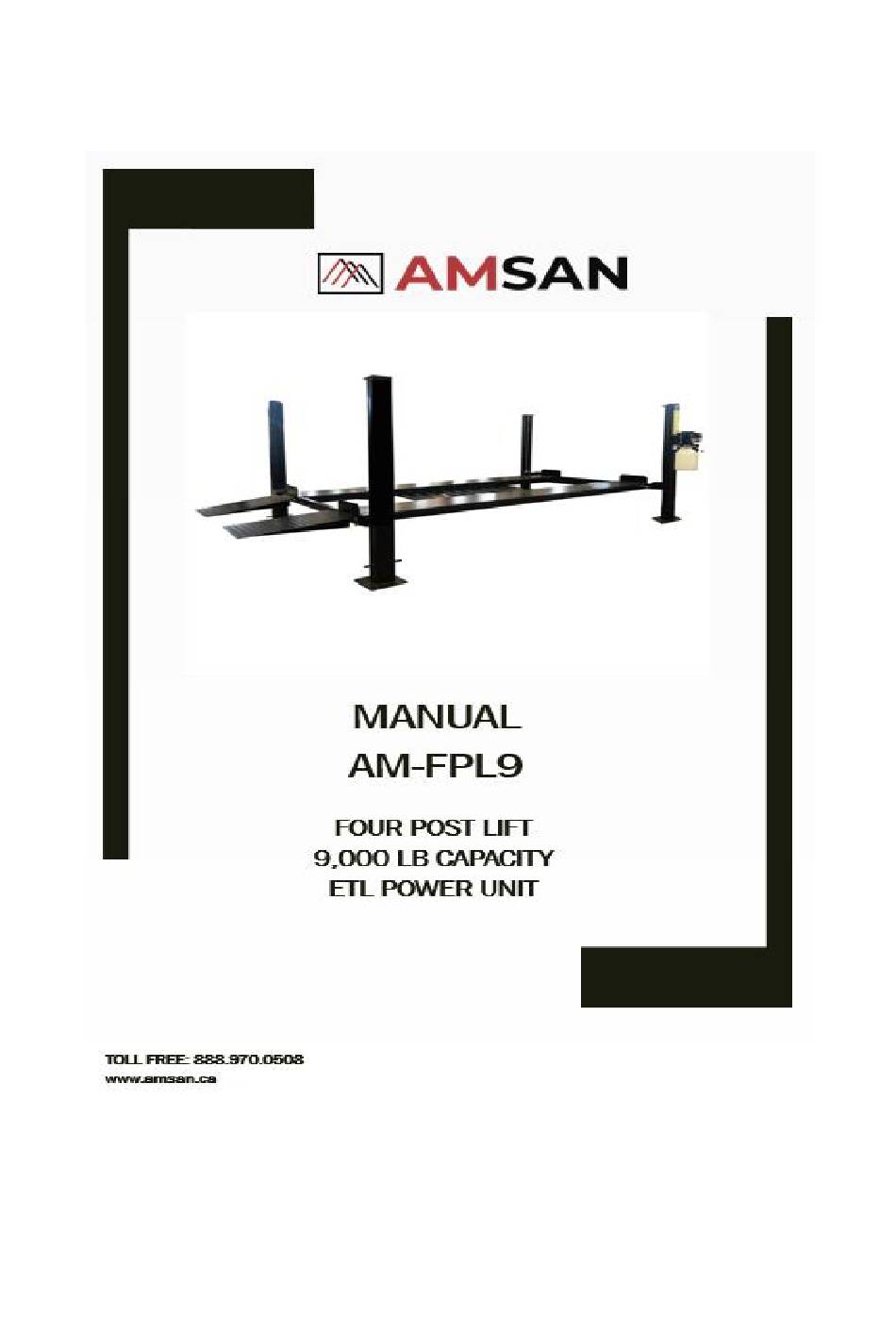

- Page 1 PLEASE READ THE PRODUCT MANUAL ENTIRELY BEFORE INSTALLING OR OPERATING THE LIFT.
- Page 2 IMPORTANT INFORMATION • The shipment should be thoroughly inspected as soon as it is received. Any freight damage or missing items must be noted on the freight bill before signing and reported to the freight carrier with a freight claim established. Buyer should claim the compensation from the freight carrier if any damage happens to the equipment during shipping.
-
Page 3: Table Of Contents
Four post parking lift AM-FPL9 TABLE OF CONTENTS Contents SAFETY INSTRUCTIONS AND CAUTIONS ..................3 CAUTION SIGNS ........................3 SAFETY CAUTION SIGNALS ...................... 4 LIFTING CAPACITY ......................... 6 SAFETY PROCEDURES ......................6 LIFT COMPONENTS ......................... 8 LIFT DIMENSIONS ........................9 LIFT TECHNICAL DATA ............. -
Page 4: Safety Instructions And Cautions
Four post parking lift AM-FPL9 SAFETY INSTRUCTIONS AND CAUTIONS CAUTION SIGNS Pay special attention to this symbol as it means unsafe or hazards practices which can lead to severe personal injury or death or damage to the lift or property. -
Page 5: Safety Caution Signals
Four post parking lift AM-FPL9 SAFETY CAUTION SIGNALS Please read Safety Signage carefully, understand and remember them. Routine maintenance and inspection are necessary for safe lift operation Read operating and instruction manuals before operating lift Remain clear of lift when raising or lowering vehicle... - Page 6 Four post parking lift AM-FPL9 Only authorized personnel in lift surrounding area Lift only to be used by trained personnel Do not operate damaged lift Do not exceed lifting capacity Avoid excessive shaking of vehicle while on lift...
-
Page 7: Lifting Capacity
Four post parking lift AM-FPL9 LIFTING CAPACITY Lifting Capacity AM-FPL9 9,000 LB SAFETY PROCEDURES Operating controls are designed to close when released. ⚫ Do not block open or override them. NEVER overload your lift. Manufacturer’s rated capacity ⚫ is shown on name plate affixed to the lift. ALWAYS be clear of the gross weight of vehicle. - Page 8 Four post parking lift AM-FPL9 DANGER! The power unit used on this lift contains high voltage. ⚫ Always unplug equipment from electrical outlet when not in ⚫ use. Never use the cord to pull the plug from the outlet. Grasp plug and pull to disconnect.
-
Page 9: Lift Components
Four post parking lift AM-FPL9 LIFT COMPONENTS... -
Page 10: Lift Dimensions
Four post parking lift AM-FPL9 LIFT DIMENSIONS... - Page 11 Four post parking lift AM-FPL9 TECHNICAL SPECIFICATIONS Overall Height 2388MM (94.02") Time to Full Rise/Drop 50 seconds Maximum Lifting Height 2000MM (78.74") Minimum Height 120MM (4.72") Overall Length (No Ramp) 4831MM (190.20") Overall Length (With Ramp) 5572MM (219.37") Power Unit...
-
Page 12: Installation
Four post parking lift AM-FPL9 INSTALLATION SPACE REQUIREMENTS You must consult the architectural plans for the desired ⚫ location. Make sure there are no contradictions between how you want to build and how the plans indicate. The area where the lift will be located should be free of ⚫... -
Page 13: Anchoring Guidelines
Four post parking lift AM-FPL9 a minimum of 12” thickness with steel or fiber mesh. New concrete must be adequately cured by at least 30 days minimum. ANCHORING GUIDELINES Please carefully remove all the parts from the package. ⚫ Use a concrete rotary hammer drill with 3/4” drill bit. Do not ⚫... -
Page 14: Tools Recommended
Four post parking lift AM-FPL9 TOOLS RECOMMENDED Chalk Line 4 Foot Level Set of Metric Wrenches/Sockets Flat Screwdriver Adjustable Wrench Hex-Key / Allen Wrench Set Locking Pliers Needle Nose Pliers Tape Measure Rotary Hammer Drill Step Ladder 3/4" Masonry Bit... - Page 15 Four post parking lift AM-FPL9 After removing the shipping racks holding the two runways ⚫ together, remove top runway out of the skid and place it on the side. Remove 4 posts, two cross rails, two ramps and all the other ⚫...
- Page 16 Four post parking lift AM-FPL9 the lock lever down on each side of the cross rail and slide the cross rail down until it rests on the safety lock position closest to the floor. Repeat the procedure for the front posts to install the cross rails.
- Page 17 Four post parking lift AM-FPL9 Find the post plates (4 each), M12x170 bolts (4 each), M12x30 ⚫ bolts (4 each), M12 nuts (8 each) and M12 flat washers (16 each), holes for cable face towards the center of the lift.
- Page 18 Four post parking lift AM-FPL9 (opposite the cylinder rod). Safety latch linkage rod should pass through guide tubes on underside of runway. Install the M12X3200 straight safety latch linkage rod into ⚫ the power side runway from the opposite end. The rod should pass through two guides on the underside of the power side runway.
- Page 19 Four post parking lift AM-FPL9 ladder must be tight. If they are ever removed -always make sure the locking ladders are tight and secure. Check the cross-rail locking assembly before use. Make ⚫ sure all bolts and ladders are tight and secure. The assembly is pre-installed from the factory, but parts may come loose during shipping.
-
Page 20: Operation
Four post parking lift AM-FPL9 are engaging uniformly, and that the safety latch release is functioning properly. Re-adjust if necessary. Run the lift up and down at least three times, before putting a ⚫ vehicle on it for the first time. This is to bleed the air out of the cylinder and power unit. -
Page 21: Check Points Before Using Lift
Operation replacement 2 SHIPPING Please refer to our website (www.amsan.ca) for our SHIPPING POLICIES. You are responsible for unloading the lift from the truck. The truck driver does not unload it for you. Lift Gate delivery service is not available for car lifts. -
Page 22: Trouble Shooting
Four post parking lift AM-FPL9 location. 3 TROUBLE SHOOTING FAULT REASON SOLUTION The power source or power Check up the power fuse, equipment is malfunctioning. the contact in the junction box of motor, micro Power Unit Does not work switch, and the condition of up button, change the damaged part. -
Page 23: Hydraulic Diagram
Four post parking lift AM-FPL9 4 HYDRAULIC DIAGRAM Item Name Item Name Item Name Cylinder Gear pump Release valve Explosion- Motor Speed control valve proof throttle Valve One way valve Filte Overflow valve... -
Page 24: Exploded Drawing
Four post parking lift AM-FPL9 5 EXPLODED DRAWING... - Page 25 Four post parking lift AM-FPL9...
- Page 26 Four post parking lift AM-FPL9...
- Page 27 Four post parking lift AM-FPL9 MAINTENANCE LOG...
- Page 28 Four post parking lift AM-FPL9...
