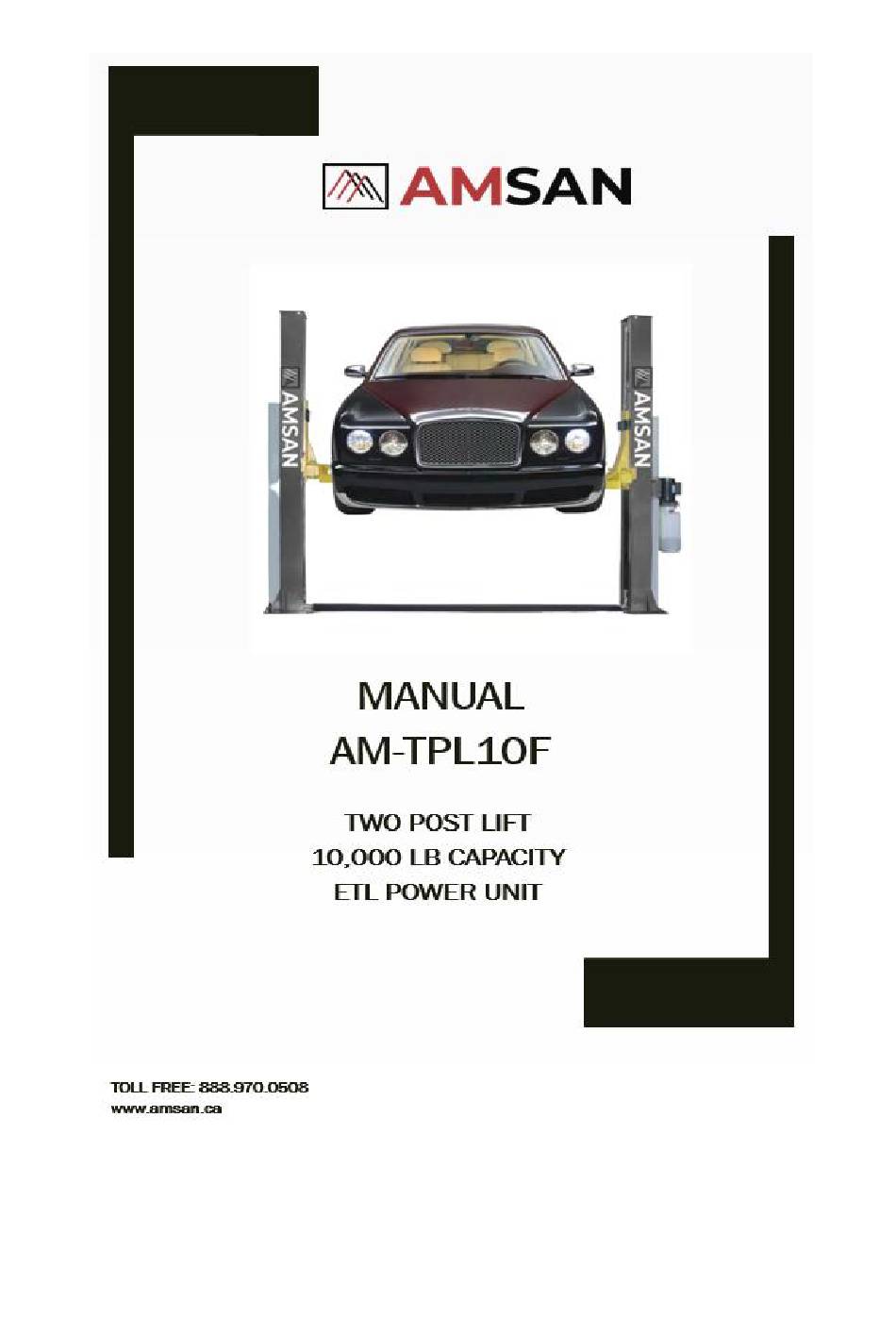

- Page 1 PLEASE READ THE PRODUCT MANUAL ENTIRELY BEFORE INSTALLING OR OPERATING THE LIFT.
- Page 2 Two Post Car Lift AM-TPL10F IMPORTANT INFORMATION • The shipment should be thoroughly inspected as soon as it is received. Any freight damage or missing items must be noted on the freight bill before signing and reported to the freight carrier with a freight claim established. Buyer should claim the compensation from the freight carrier if any damage happens to the equipment during shipping.
-
Page 3: Table Of Contents
Two Post Car Lift AM-TPL10F TABLE OF CONTENTS Contents TABLE OF CONTENTS ..........................3 SAFETY INSTRUCTIONS AND CAUTIONS ......................4 CAUTION SIGNS ............................4 SAFETY CAUTION SIGNALS ........................5 LIFTING CAPACITY ........................... 6 SAFETY CHECK POINTS ..........................6 LIFT COMPONENTS ............................7 LIFT DIMENSIOINS ............................ -
Page 4: Safety Instructions And Cautions
Two Post Car Lift AM-TPL10F SAFETY INSTRUCTIONS AND CAUTIONS CAUTION SIGNS Danger! Pay special attention to this symbol as it means unsafe or hazards practices which can lead to severe personal injury or death or damage to the lift or property. -
Page 5: Safety Caution Signals
Two Post Car Lift AM-TPL10F SAFETY CAUTION SIGNALS Please read Safety Signage carefully, understand and remember them. -
Page 6: Lifting Capacity
Two Post Car Lift AM-TPL10F LIFTING CAPACITY Rated Load AM-TPL10F 4500kg Technically lift is designed for both approach directions. But for a long service life, we recommend using the short support arms for lifting the engine side of the vehicle. -
Page 7: Lift Components
Two Post Car Lift AM-TPL10F LIFT COMPONENTS... -
Page 8: Lift Dimensioins
Two Post Car Lift AM-TPL10F LIFT DIMENSIOINS... -
Page 9: Techanical Specifications
Two Post Car Lift AM-TPL10F TECHANICAL SPECIFICATIONS Overall Height 2824MM (111 1/5") Time to Full Rise/Drop 45/25 seconds Maximum Lifting Height 1928MM (75 8/9") Minimum Height of Rubber Pads 125MM (5") Minimum Height 95MM (3 3/4”) R717 - 1070mm (28 1/4”- 42 1/8”) and R900 - Adjusting Range of Arm 1380mm (35 2/5”... -
Page 10: Installation
Two Post Car Lift AM-TPL10F INSTALLATION SPACE REQUIREMENTS • You must consult the architectural plans for the desired location. Make sure there are no contradictions between how you want to build and how the plans indicate. • The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical wires and so on. -
Page 11: Foundation Requirements
Two Post Car Lift AM-TPL10F FOUNDATION REQUIREMENTS • Visually inspect the site where the lift is to be installed and check for cracked or defective concrete • DO NOT install or use this lift on expansion seams or on cracked or defective concrete. - Page 12 Two Post Car Lift AM-TPL10F • Please carefully remove all the parts from the package. • Use a concrete rotary hammer drill with 3/4” drill bit. Do not use excessively worn or incorrectly sharpened drill bits. • Keep the drill in a vertical position when drilling. Do not apply excessive pressure and let the drill do the work.
-
Page 13: Tools Recommended
Two Post Car Lift AM-TPL10F TOOLS RECOMMENDED ⚫ Chalk Line ⚫ ⚫ 4 Foot Level ⚫ Set of Metric Wrenches/Sockets ⚫ ⚫ Flat Screwdriver ⚫ Adjustable Wrench ⚫ ⚫ Hex-Key / Allen Wrench Set ⚫ Locking Pliers ⚫ ⚫ Needle Nose Pliers ⚫... - Page 14 Two Post Car Lift AM-TPL10F • After removing the shipping racks holding the two columns together, remove top and bottom of the posts out of the skid and discard the steel racks. • Remove all the parts and compare them with the parts list (at the end of this manual).
- Page 15 Two Post Car Lift AM-TPL10F • Now stand up the other post opposite to the main power unit post inside the chalk lines as shown in the picture in last step. • Drill the anchor holes only for one post with 3/4-inch drill bit into concrete following Anchoring guideline under the anchoring guideline section.
- Page 16 Two Post Car Lift AM-TPL10F Step 4. Locking Latch Cable • See below Release Cable Connecting Pictures Before delivery, all the 7 safety sockets come pre-assembled. Note: number 6&7 sockets with pulley installed are not in the center position as below pic#1.
- Page 17 Two Post Car Lift AM-TPL10F handle. If any cable moves not synchronically with others, adjust the fours safety steel cables instantaneously. Pull the handle to release all the locks. Pic#1 Pic#2 Pic#3 Step 5. • Mount the power unit onto the power side post using bolts and nuts.
- Page 18 Two Post Car Lift AM-TPL10F...
- Page 19 Two Post Car Lift AM-TPL10F Step 6. • Install four arms to both posts respectively. Swing the arms to make sure they are installed properly. Install the arm locking parts. Step 7. • For wiring the power unit, please consult with a certified electrician to connect the power unit to a power outlet.
-
Page 20: Operation
Two Post Car Lift AM-TPL10F Step 10. • Connect the power. Connect the power according to the pictures on the nameplate. It is required to set a power switch besides the lift, to cut off the power to maintain the equipment or cope with emergency. - Page 21 Two Post Car Lift AM-TPL10F position. • DO NOT work under a vehicle lift when the lift is not in a locking position. Lowering the lift • Make sure area is clear under the vehicle lift before bringing the lift down.
-
Page 22: Maintenance
Two Post Car Lift AM-TPL10F MAINTENANCE DAILY INSPECTION Item Maintenance Contents Solution Check if there are any damages on Replace rubber pads. the rubber pad on four arms. Check if there is any problem on the Check and tighten all the loose nuts... -
Page 23: Monthly Inspection
Two Post Car Lift AM-TPL10F MONTHLY INSPECTION Item Maintenance Contents Solution Inspect rubber pads Replace rubber pads if required Check hydraulic hoses and line for Tighten the fittings and if needed possible lease or damage replace the hose Check if the pivot chain sheave and Add lubrication or adjust again. -
Page 24: Trouble Shooting
Two Post Car Lift AM-TPL10F TROUBLE SHOOTING Problem Reason Solution • Incorrect Voltage to motor • Check the power fuse and Motor does not • Motor burned out work reset breaker • See if power unit wired • Fuses are blown •... - Page 25 Two Post Car Lift AM-TPL10F vehicle lift • Fill the reservoir with manufacturing recommended • Add hydraulic oil • When lift is There is not enough • Fix or replace the leaky hoses rising the speed hydraulic oil in the power...
-
Page 26: Hydraulic Drawing
Two Post Car Lift AM-TPL10F HYDRAULIC DRAWING Name Name Name cylinder overflow valve gear pump one-way throttle unloading valve adjustable throttle valve valve one-way valve electric motor filter... -
Page 27: Exploded Drawing
Two Post Car Lift AM-TPL10F EXPLODED DRAWING... - Page 28 Two Post Car Lift AM-TPL10F...
- Page 29 Two Post Car Lift AM-TPL10F...
-
Page 30: Maintenance Log
Two Post Car Lift AM-TPL10F MAINTENANCE LOG...
