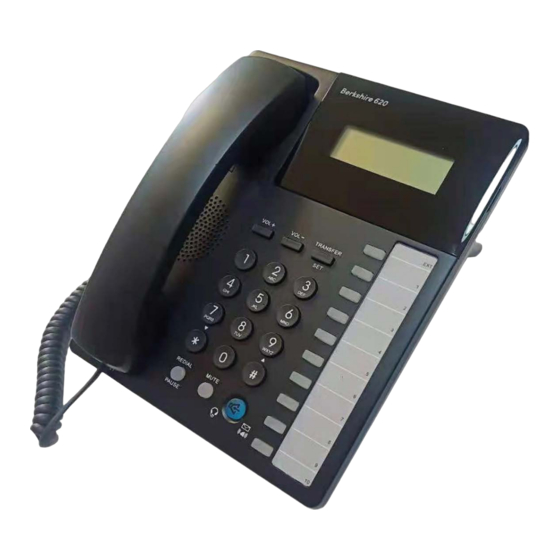

Berkshire 620
Thank you for choosing a Berkshire 620 telephone. You have selected
a carefully designed telephone that incorporates the very latest
technology, offering a stylish instrument and providing many years of
excellent service. This booklet will ensure you obtain the best use of
your telephone.
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Berkshire 620 and is the answer not in the manual?

Questions and answers

Related Manuals for ATL Berkshire 620

Summary of Contents for ATL Berkshire 620

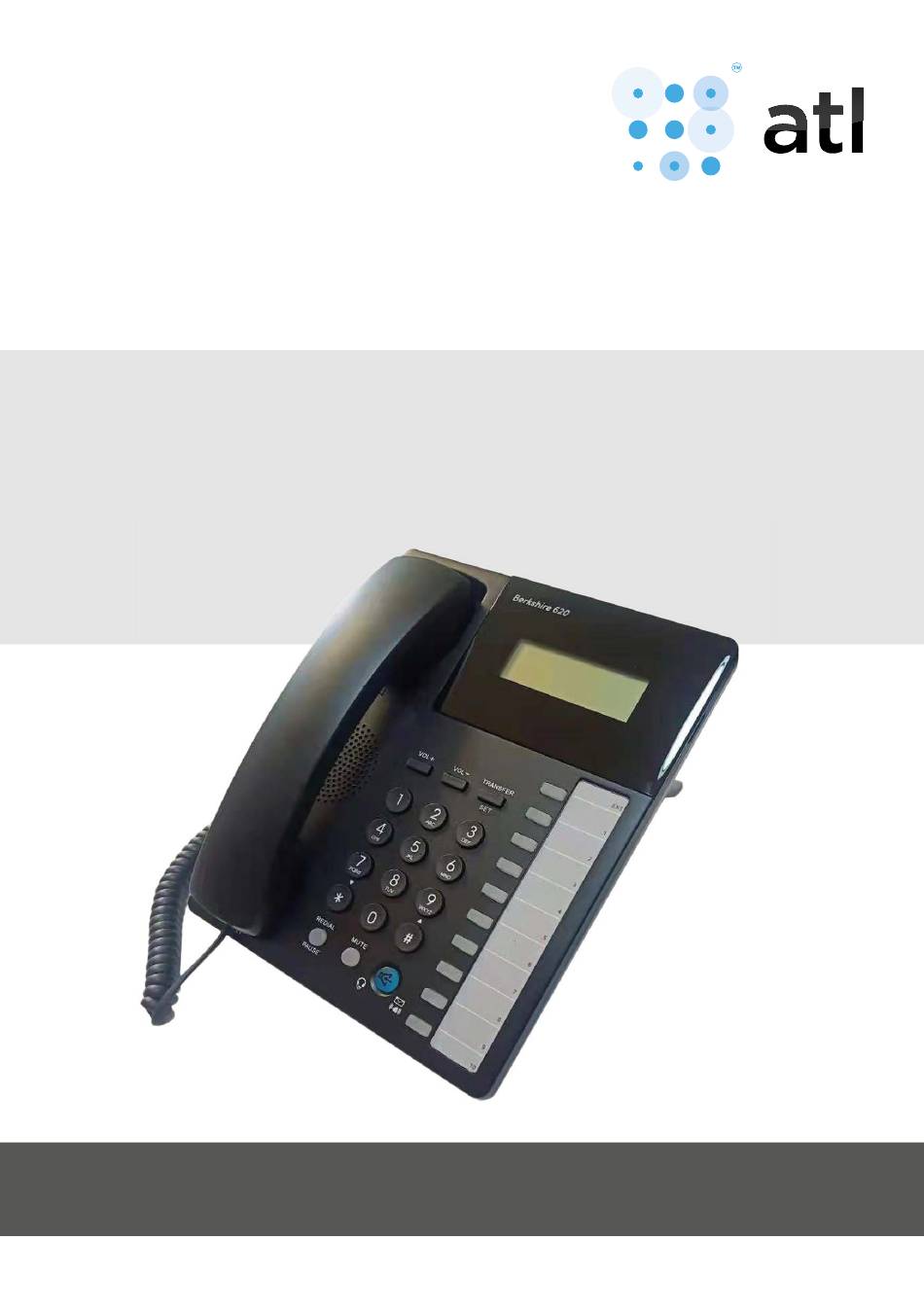

  • Page 1 Berkshire 620 Thank you for choosing a Berkshire 620 telephone. You have selected a carefully designed telephone that incorporates the very latest technology, offering a stylish instrument and providing many years of excellent service. This booklet will ensure you obtain the best use of your telephone.

  • Page 2: Locations And Functions

    LOCATIONS AND FUNCTIONS LCD DISPLAY TRANSFER & TIME SET 10 SPEED DIAL KEYS SPEAKERPHONE, HEADSET, MESSAGE WAITING & INCOMING CALL INDICATION MUTE REDIAL & PAUSE DIALING KEYS (0-9, *, #) SPEAKER VOL+ & VOL- HANDSET HOOK HANDSET – 2 –...
  • Page 3 LOCATIONS AND FUNCTIONS HANDSET SOCKET LINE CORD SOCKET HEADSET SOCKET SLOTS FOR STAND STAND – 3 –...

  • Page 4: Initial Check

    2 to enter the time setting, input the time in HH:MM in 24-hour format, press SET to confirm, press speakerphone key to exit. It should be noted that the Berkshire 620 date format is MM/DD it’s not possible to change this format. – 4 –...
  • Page 5 STAND INSTALLATION AND SETUP The Berkshire 620 can support two different tilt angles of 49° and 30°, see below ATTACHING THE STAND TO THE TELEPHONE This paragraph below illustrates an example of 49° angle installation with the stand. There are two sets of “bolt” on the top of the stand (A and B) and there are two sets of notches on the back of the phone.
  • Page 6 The procedure for attaching the stand to the telephone is as follows: Place the main body of the Berkshire 620 face down on a “soft” surface so as to not scratch the telephone. Slide the “A” bolt into the notch hole.
  • Page 7 – 7 –...

  • Page 8: Wall Mounting

    WALL MOUNTING The Berkshire 620 can be wall mounted if required, without the use of an additional bracket. When wall mounting you will have to change the position of the handset hook and fix the base unit to the wall, please follow the steps below.

  • Page 9: Adjusting The Lcd Contrast

    ADJUSTING THE LCD CONTRAST After mounting the telephone to the wall, you may find that you need to adjust the LCD (Liquid Crystal Display) contrast, i.e., change the viewing angle of the display, if so, please follow the steps below. Press the SET key followed by the number 7 key, the LCD will show “Lcd con”, using the * and # keys will change the LCD contrast i.e., the viewing angle.

  • Page 10: Features And Facilities

    • Speakerphone Mode, press the Vol+ & Vol- keys to adjust the speakerphone volume, there are three levels TRANSFER KEY (RECALL) Berkshire 620 telephones are provided with a ‘TRANSFER’ key, required by modern public and private exchanges, in order to gain access to various features such as ‘transferring a call’.

  • Page 11: Memory Keys

    MESSAGE WAITING & RINGING INDICATOR There are three versions of message waiting (MW) indication supported within the Berkshire 620 telephone (MW 3, 8 and 10). The telephone will automatically detect what type of MW you require so no user input is required.

  • Page 12: No Dial Tone

    • Compatible Private Automatic Branch Exchanges (PABX). Please contact the supplier of your Berkshire 620 to confirm compatibility with your PABX Whilst the Berkshire 620 is compliant as an extension to a compatible PABX system, it cannot be guaranteed to operate under all possible conditions of connection.
  • Page 13 4. The liability of ATL Telecom Limited will be limited to the cost of repair or complete replacement of the same defective instrument, at the discretion of the company.
  • Page 14 NOTES – 14 –...
  • Page 15 NOTES – 15 –...

  • Page 16: Manufacturer's Declaration

    MANUFACTURER’S DECLARATION ATL Telecom Limited declares that this product is in conformity with the Directive 2014/30/EU, a copy of the Declaration of Conformity is available upon request from ATL Telecom Limited.
