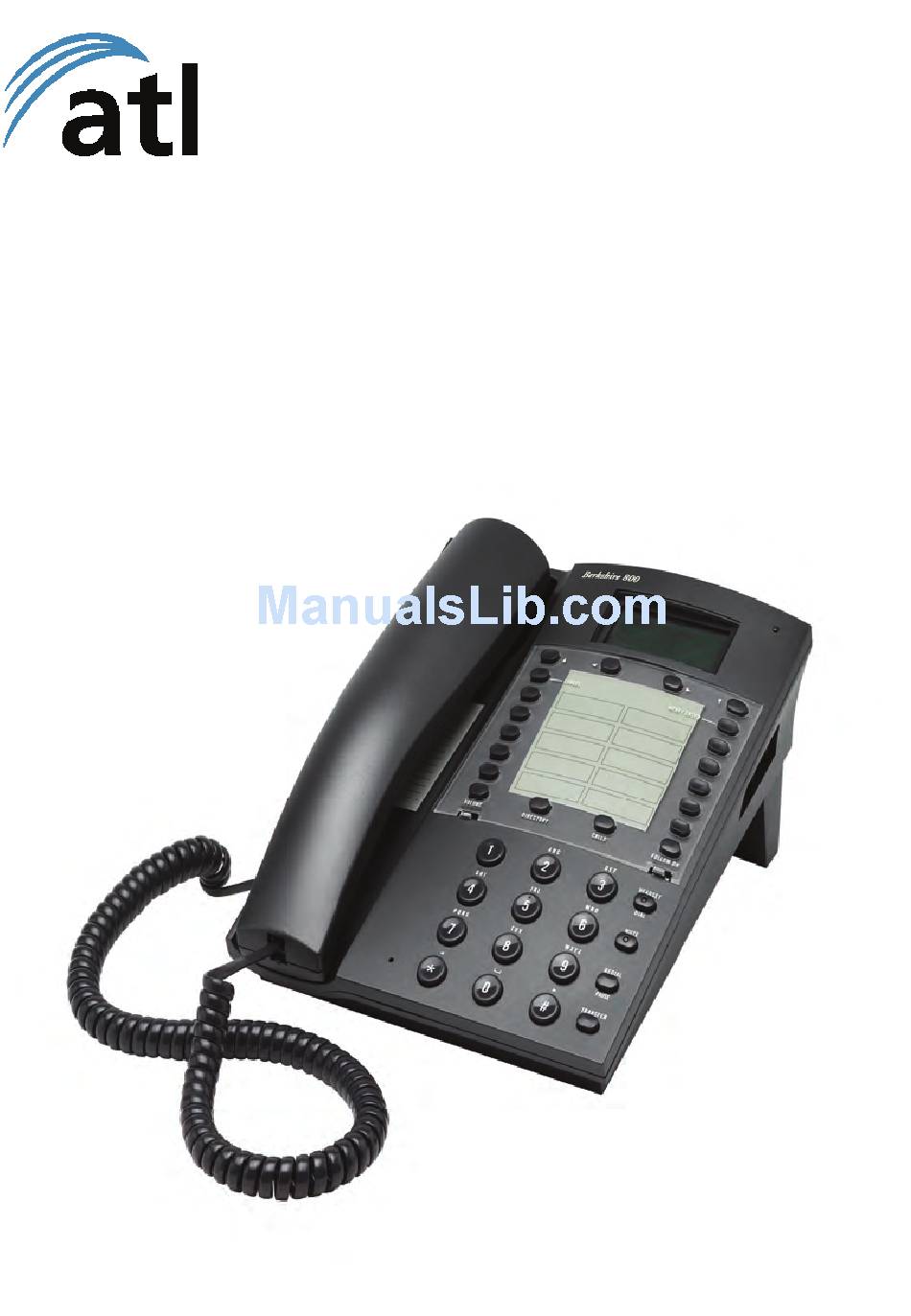

Thank you for choosing a Berkshire 800 telephone. You have selected a
carefully designed telephone that incorporates the very latest technology,
offering a stylish instrument and providing many years of excellent
service.
This booklet will ensure you obtain the best use of your telephone.

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Berkshire 800 and is the answer not in the manual?

Questions and answers

Related Manuals for ATL Berkshire 800

Summary of Contents for ATL Berkshire 800

  • Page 1: User Guide

    Berkshire 800 Thank you for choosing a Berkshire 800 telephone. You have selected a carefully designed telephone that incorporates the very latest technology, offering a stylish instrument and providing many years of excellent service. This booklet will ensure you obtain the best use of your telephone.

  • Page 2: Preparing To Use The Berkshire 800

    Take ANY end of the handset cord and locate the port marked “HANDSET” on the left hand side of the Berkshire 800 and simply Setting up the Telephone push to locate. Connect the other end to the base of the handset to complete.

  • Page 3: Making A Call

    SETTING TIME AND DATE DISPLAY CONTRAST If CLI is provided on the line that the Berkshire 800 Whether mounting the Berkshire 800 on a wall or is connected to, the time and date may be set by simply sitting the telephone on a desk, it may be calling the telephone from an alternative line, or necessary to adjust the contrast on the LCD.

  • Page 4: Using The Directory

    To set up the ONE TOUCH MEMORY, (See Section the 1st entry in the directory (i.e. Directory Location 8.1). 01).In this example the number “02920500700” and Name “ATL TELECOM” has previously been stored Press the required “MEMORY LOCATION” key (M1 in Directory Location 01. – M10).

  • Page 5: Receiving A Call

    “HEADSET/DIAL” key and THE TELEPHONES' 1st CALL IN MEMORIES ATL TELECOM the number will self dial or scroll through the CALLS LOG ENTRY numbers using the UP (5) or DOWN (6) key until the required number is displayed e.g.

  • Page 6: Call Waiting Cli

    “ENGAGED” tone and must re-dial. With your Press the “HEADSET/DIAL” key. The LED on the Berkshire 800, the LCD will display that you have a “HEADSET DIAL” key will fl ash and “REPLACE new call and you have the option of interrupting the HANDSET”...

  • Page 7: One Touch Memory

    If you have taken a call using the handsfree feature When the extension answers, simply replace the of the Berkshire 800 and wish to transfer it to the handset or press the “HEADSET/DIAL” key. The call handset: will then be transferred.
  • Page 8 If the “MENU / ENTER” key is pressed the screen will return to its “On-hook” state. It should be noted that an access digit (normally “9”) is NOT required, as the Berkshire 800 will EDIT MEMORY automatically dial this digit for you. Unless the Press the “MENU/ENTER”...

  • Page 9: Memory Lock

    Press the “MENU / ENTER” key to confi rm the PRESSED delete. Pressing the “MENU / ENTER” key now will FLASHING ATL TELECOM over-write the previous setting. CURSOR If the “MENU/ENTER” key is pressed the screen will return to its “On-hook” state.

  • Page 10: Add Entry

    DIRECTORY Key in the required number (e.g. 02920500700). You The Berkshire 800 directory can store up to 100 do NOT need to program an access digit (normally entries, organised by name (See Section 3.3). “9”), as the Berkshire 800 will automatically dial this The telephone has a “Directory Lock”...

  • Page 11: Edit Entry

    HASH (#) key to move the cursor to the right. Use the ZERO (0) key to enter a space. DIRECTORY EDIT ENTRY LOCATION FLASHING ATL TELECOM CURSOR Press the “MENU / ENTER”. DIRECTORY Press the “MENU/ENTER” key to confi rm the LOCATION Name.

  • Page 12: Calls List

    Information in the calls list can be subsequently show “ARE YOU SURE ?”. stored in the Berkshire 800 directory. This is a particularly useful feature as the fi rst time a call is Press the “MENU/ENTER” key to confi rm the received;...
  • Page 13 The “CALLS” log can be purged of individual caller information. The display will then return to the “On-hook” State. With the Berkshire 800 “On-hook”, press the “CALLS” The storing of “CALLS” information may be carried key. The display shows the last caller details. Scroll out whilst the call is “Live”.

  • Page 14: Volume And Pitch Controls

    screen displays “PLEASE WAIT” and then returns to Press “MENU/ENTER” key and the display shows the “On-hook” screen. “RINGER VOLUME”. Press the UP (5) or DOWN (6) key until the display Volume and Pitch shows “RINGER PITCH”. Controls The Ringer volume and pitch and the telephone’s speaker, handset and headset volumes can be set RINGER PITCH for individual preference.

  • Page 15: Handset Volume

    HANDSET MODE RECALL TYPE Use the UP (5) or DOWN (6) key until the required The Berkshire 800 is set up for “Time Break Recall” Handset Volume setting is obtained. (TBR) as the Factory Default. If your PABX requires the telephone to be set up for “Earth Leg Recall”...
  • Page 16 fl ash. between 100mS and 1000mS in steps of 100mS. Use the UP (5) or DOWN (6) key to toggle between To set the ELR Period the Berkshire 800 must be “TBR” and “ELR”. “On-hook”. Press the “MENU/ENTER” key. The LCD will display “SET MEMORY”.
  • Page 17 5000mS in steps of 250mS. The Factory Default is set to 3000mS. CALL TIMER START To set the KEY TIME OUT Period the Berkshire 800 must be “On-hook”. Press the “MENU/ENTER” key again and the “CALL TIMER START” period will fl ash.

  • Page 18: Line Access Settings

    “0” and “9”. The Factory Default is set to “9”. ACCESS DIGIT ON To set the ACCESS DIGIT the Berkshire 800 must be “On-hook”. Press the “MENU/ENTER” key again and the Press the “MENU/ENTER” key. The LCD will display “ACCESS DIGIT”...
  • Page 19 0 / ALL FLASHES Direct Exchange Lines (DEL)Compatible Private Automatic Branch Exchanges (PABX). Please contact the supplier of your Berkshire 800 to confi rm Use the UP (5) or DOWN (6) key to toggle between compatibility with your PABX. the 0 and ALL options.

  • Page 20: Power Rating Information - Ac Plug Top Adapter

    Power Rating Information The liability of ATL telecom Limited will be limited to the cost of repair or complete replacement of – AC Plug Top Adapter the same defective instrument, at the discretion of the company.
