ATL Berkshire 420 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Berkshire 420

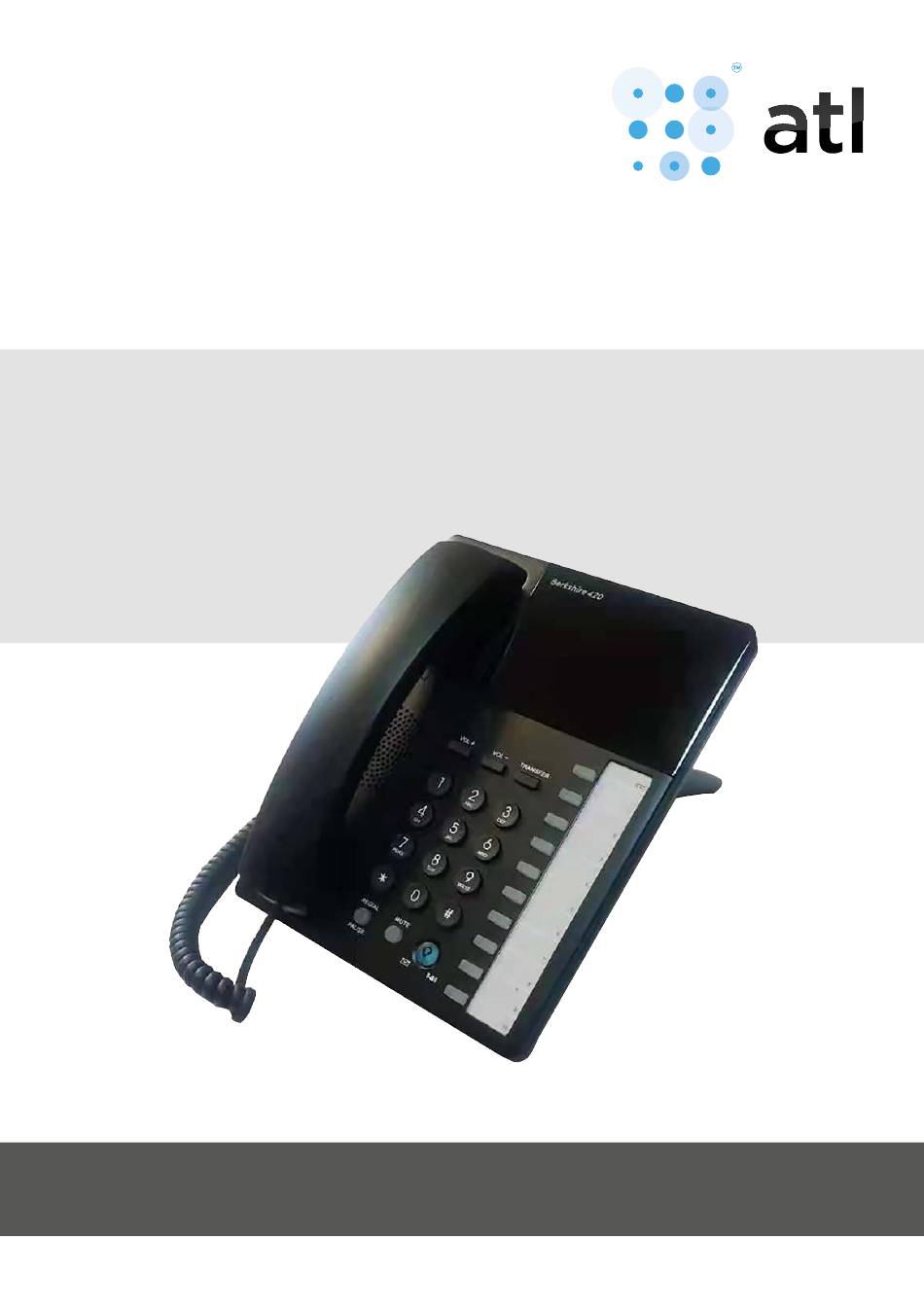

Thank you for choosing a Berkshire 420 telephone. You have selected
a carefully designed telephone that incorporates the very latest
technology, offering a stylish instrument and providing many years of
excellent service. This booklet will ensure you obtain the best use of
your telephone.
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Berkshire 420 and is the answer not in the manual?

Questions and answers

Related Manuals for ATL Berkshire 420

Summary of Contents for ATL Berkshire 420

  • Page 1 Berkshire 420 Thank you for choosing a Berkshire 420 telephone. You have selected a carefully designed telephone that incorporates the very latest technology, offering a stylish instrument and providing many years of excellent service. This booklet will ensure you obtain the best use of your telephone.

  • Page 2: Locations And Functions

    LOCATIONS AND FUNCTIONS TRANSFER To use for line transfer or intercom behind PBX system. 10 SPEED DIAL Press to dial out the stored number. KEYS HEADSET, A. LED will light up when the unit is in use. MESSAGE B. LED will flash when the phone has incoming call / WAITING &...

  • Page 3: Handset Hook

    LOCATIONS AND FUNCTIONS HANDSET HOOK Turns 180 degrees to hang up the handset when the unit is mounted on the wall. HOOK SWITCH Press to end call. HANDSET For speaking and listening. HANDSET Connect handset. SOCKET LINE CORD Connect to telephone wall Jack. SOCKET HEADSET Connect headset.
  • Page 4 LINECORD The Berkshire 420 is supplied with two line cords, select your required line cord i.e., the standard BS6312 BT-socket, or RJ45 socket for category 5/6 installations. The base of the telephone has a port marked with a telephone symbol, plug your selected line cord into this port first, then feed the cable through the slots to secure the line cord.
  • Page 5 STAND INSTALLATION AND SETUP The Berkshire 420 can support two different tilt angles of 49° and 30°, see below ATTACHING THE STAND TO THE TELEPHONE This paragraph below illustrates an example of 49° angle installation with the stand. There are two sets of “bolt” on the top of the stand (A and B) and there are two sets of notches on the back of the phone.
  • Page 6 The procedure for attaching the stand to the telephone is as follows: Place the main body of the Berkshire 420 face down on a “soft” surface so as to not scratch the telephone. Slide the “A” bolt into the notch hole.

  • Page 7: Wall Mounting

    WALL MOUNTING The Berkshire 420 can be wall mounted if required, without the use of an additional bracket. When wall mounting you will have to change the position of the handset hook and fix the base unit to the wall, please follow the steps below.

  • Page 8: Receiving Calls

    For hearing aid users, an inductive coupler has been installed in the handset to improve audible efficiency. TRANSFER KEY (RECALL) Berkshire 420 telephones are provided with a ‘TRANSFER’ key, required by modern public and private exchanges, in order to gain access to various features such as ‘transferring a call’.

  • Page 9: Memory Keys

    MESSAGE WAITING & RINGING INDICATOR There are three versions of message waiting (MW) indication supported within the Berkshire 420 telephone (MW 3, 8 and 10). The telephone will automatically detect what type of MW you require so no user input is required.

  • Page 10: No Dial Tone

    For help with call divert and call pickup etc. please contact your Telecoms Team (IT) or Service Provider as this will vary depending on what switchboard you’re connected to and is NOT a function of the Berkshire 420. Further concerns may also be addressed by calling our Technical Support Department on 0330 333 8259, our main switchboard on 0330 333 8250 or visiting our website, www.atltelecom.com/support...
  • Page 11 4. The liability of ATL Telecom Limited will be limited to the cost of repair or complete replacement of the same defective instrument, at the discretion of the company.

  • Page 12: Manufacturer's Declaration

    MANUFACTURER’S DECLARATION ATL Telecom Limited declares that this product is in conformity with the Directive 2014/30/EU, a copy of the Declaration of Conformity is available upon request from ATL Telecom Limited.
