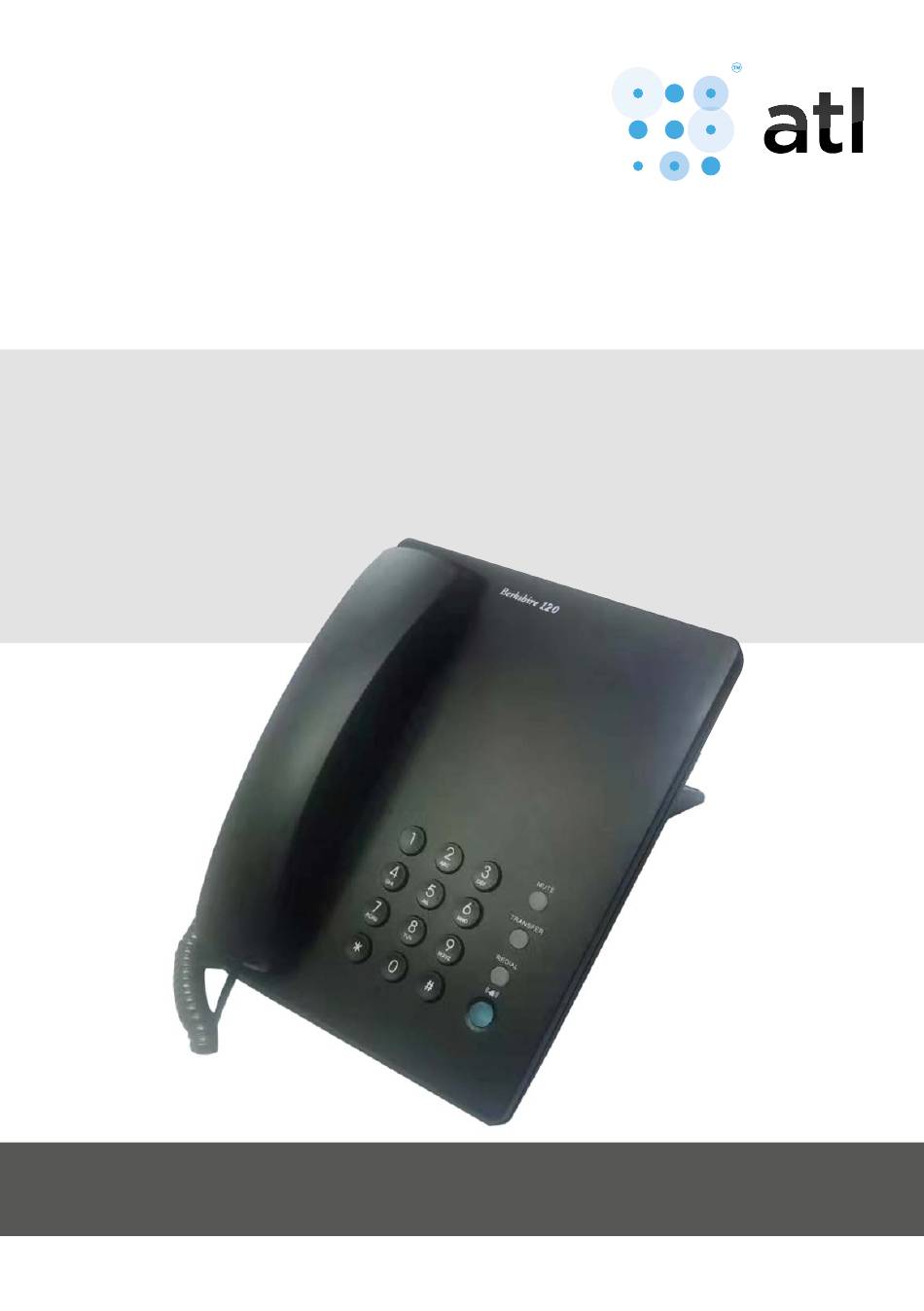

Berkshire 120
Thank you for choosing a Berkshire 120 telephone. You have selected
a carefully designed telephone that incorporates the very latest
technology, offering a stylish instrument and providing many years of
excellent service. This booklet will ensure you obtain the best use of
your telephone.
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Berkshire 120 and is the answer not in the manual?

Questions and answers

Related Manuals for ATL Berkshire 120

Summary of Contents for ATL Berkshire 120

  • Page 1 Berkshire 120 Thank you for choosing a Berkshire 120 telephone. You have selected a carefully designed telephone that incorporates the very latest technology, offering a stylish instrument and providing many years of excellent service. This booklet will ensure you obtain the best use of your telephone.

  • Page 2: Locations And Functions

    LOCATIONS AND FUNCTIONS MUTE Press and hold the key to mute the microphone of handset. TRANSFER To use for line transfer or intercom behind PBX system. REDIAL Press to dial the last dialed number. IN USE LED A. LED will light up when the unit is in use.

  • Page 3: Initial Check

    Connect the other end to your telephone line termination point, i.e., the BT Socket. RINGER VOLUME The base of the Berkshire 120 is fitted with a three position slide switch so that the volume of the ringer can be adjusted, the options available are HI / LOW / OFF...
  • Page 4 STAND INSTALLATION AND SETUP The Berkshire 120 can support two different tilt angles of 49° and 30°, see below ATTACHING THE STAND TO THE TELEPHONE This paragraph below illustrates an example of 49° angle installation with the stand. There are two sets of “bolt” on the top of the stand (A and B) and there are two sets of notches on the back of the phone.
  • Page 5 The procedure for attaching the stand to the telephone is as follows: Place the main body of the Berkshire 120 face down on a “soft” surface so as to not scratch the telephone. Slide the “A” bolt into the notch hole.
  • Page 6 – 6 –...

  • Page 7: Wall Mounting

    WALL MOUNTING The Berkshire 120 can be wall mounted if required, without the use of an additional bracket. When wall mounting you will have to change the position of the handset hook and fix the base unit to the wall, please follow the steps below.

  • Page 8: Receiving Calls

    For hearing aid users, an inductive coupler has been installed in the handset to improve audible efficiency. TRANSFER KEY (RECALL) Berkshire 120 telephones are provided with a ‘TRANSFER’ key, required by modern public and private exchanges, in order to gain access to various features such as ‘transferring a call’.

  • Page 9: No Dial Tone

    • Compatible Private Automatic Branch Exchanges (PABX). Please contact the supplier of your Berkshire 120 to confirm compatibility with your PABX Whilst the Berkshire 120 is compliant as an extension to a compatible PABX system, it cannot be guaranteed to operate under all possible conditions of connection.
  • Page 10 4. The liability of ATL Telecom Limited will be limited to the cost of repair or complete replacement of the same defective instrument, at the discretion of the company.
  • Page 11 NOTES – 11 –...

  • Page 12: Manufacturer's Declaration

    MANUFACTURER’S DECLARATION ATL Telecom Limited declares that this product is in conformity with the Directive 2014/30/EU, a copy of the Declaration of Conformity is available upon request from ATL Telecom Limited.
