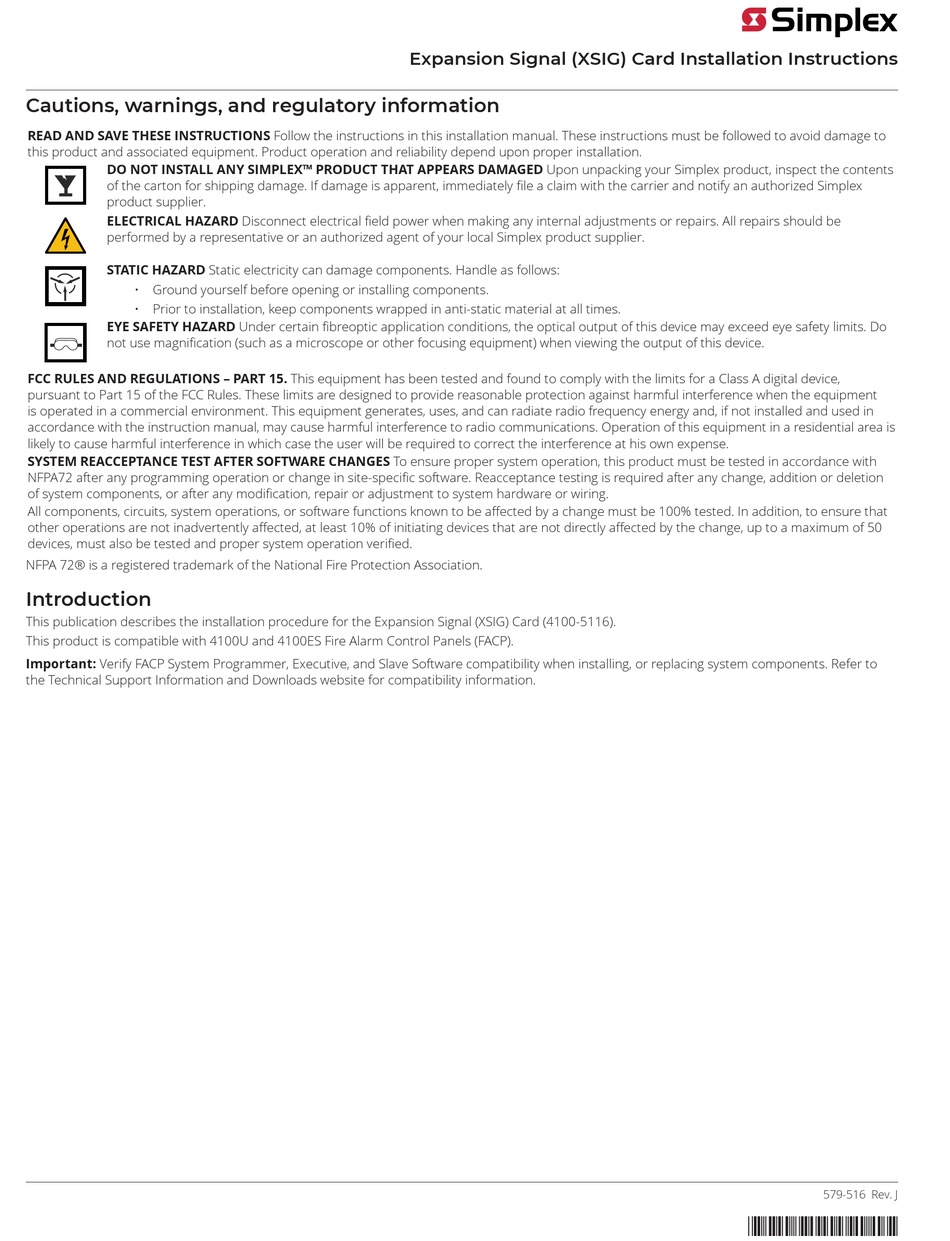

Cautions, warnings, and regulatory information
READ AND SAVE THESE INSTRUCTIONS Follow the instructions in this installation manual. These instructions must be followed to avoid damage to
this product and associated equipment. Product operation and reliability depend upon proper installation.
DO NOT INSTALL ANY SIMPLEX™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Simplex product, inspect the contents
of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex
product supplier.
ELECTRICAL HAZARD Disconnect electrical field power when making any internal adjustments or repairs. All repairs should be
performed by a representative or an authorized agent of your local Simplex product supplier.
STATIC HAZARD Static electricity can damage components. Handle as follows:
• Ground yourself before opening or installing components.
• Prior to installation, keep components wrapped in anti-static material at all times.
EYE SAFETY HAZARD Under certain fibreoptic application conditions, the optical output of this device may exceed eye safety limits. Do
not use magnification (such as a microscope or other focusing equipment) when viewing the output of this device.
FCC RULES AND REGULATIONS – PART 15. This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
SYSTEM REACCEPTANCE TEST AFTER SOFTWARE CHANGES To ensure proper system operation, this product must be tested in accordance with
NFPA72 after any programming operation or change in site-specific software. Reacceptance testing is required after any change, addition or deletion
of system components, or after any modification, repair or adjustment to system hardware or wiring.
All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested. In addition, to ensure that
other operations are not inadvertently affected, at least 10% of initiating devices that are not directly affected by the change, up to a maximum of 50
devices, must also be tested and proper system operation verified.
NFPA 72® is a registered trademark of the National Fire Protection Association.
Introduction
This publication describes the installation procedure for the Expansion Signal (XSIG) Card (4100-5116).
This product is compatible with 4100U and 4100ES Fire Alarm Control Panels (FACP).
Important: Verify FACP System Programmer, Executive, and Slave Software compatibility when installing, or replacing system components. Refer to
the Technical Support Information and Downloads website for compatibility information.
Expansion Signal (XSIG) Card Installation Instructions
579-516 Rev. J
*0579516J*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XSIG and is the answer not in the manual?

Questions and answers

Summary of Contents for Simplex XSIG

  • Page 1 DO NOT INSTALL ANY SIMPLEX™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex product supplier.
  • Page 2: Optional Equipment

    The Expansion Signal (XSIG) Card provides three additional notification appliance circuits (NACs) for use with either an amplifier audio NAC or a power supply card NAC (SPS, RPS, XPS). It is not compatible with the ES-PS simple NAC or NAC Cards. When you add an XSIG Card for audio NAC expansion, program the card for operation with the specific amplifier that it is expanding.
  • Page 3 Figure 1: XSIG Card XSIG Card receives power and communications from PDI The XSIG card is a 4100 Comm slave according to the 4100 slave architecture. The card plugs onto the Power Distribution Interface (PDI) that supplies card power and 4100 Comm communications.
  • Page 4: Requirements And Limitations

    Overview The Expansion Signal (XSIG) card mounts on the PDI. The module can be mounted on any of the PDI connectors. Use connector P4, labeled on the backside of the given card, to connect to any of the eight PDI connectors as shown in Figure 2 .
  • Page 5: Card Configuration

    Setting the EOLR Jumpers (P3 & P4) These jumpers are used to connect an end-of-line resistor to the inputs when the card is installed as the last in the line of XSIG cards. The default position is OUT (Positions 1-2).
  • Page 6 Expansion Signal (XSIG) Card Installation Instructions XSIG Card Addresses Figure 4: XSIG Card Addresses page 6 579-516 Rev. J...
  • Page 7: Wiring Guidelines

    Expansion Signal (XSIG) Card Installation Instructions Wiring Overview This section describes wiring for the XSIG card. Audio NAC, DC NAC, Amplifier (Constant and Non-Constant Supervision), and Power Supply Wiring are included. Wiring guidelines Make sure these prerequisites are accounted for before installing the cards: •...
  • Page 8 • Leave the 10 K, 1/2 W resistors (378-030 – brown/black/orange) on the B+ and B- terminals of unused circuits. • Remove the 10 K resistors from the B+ and B- terminals on the XSIG card. • All wiring is between 18 AWG (0.8231 mm ) (minimum) and 12 AWG (3.309 mm...
  • Page 9 Expansion Signal (XSIG) Card Installation Instructions DC NAC wiring Provide CD NAC wiring as shown in Figure 7. Figure 7: DC NAC wiring Note: Leave the 10 K, 1/2 W resistors (378-030 – brown/black/orange) on the B+ and B- terminals of unused circuits.
  • Page 10 XSIG cards must be in the same unit as the source NACs. The last XSIG card in the chain requires EOLR Jumpers P3 & P4 to be installed in the IN position (2-3); otherwise, jumpers are installed in the OUT position.
  • Page 11 XSIG cards must be in the same location as the source NACs. The last XSIG card in the chain requires EOLR Jumpers P3 & P4 to be installed in the IN position (2-3); otherwise, jumpers are installed in the OUT position.
  • Page 12: Troubleshooting

    © 2020 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. Additional listings may be applicable, contact your local Simplex® product supplier for the latest status. Listings and approvals under Simplex Time Recorder Co. Simplex, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited. NFPA 72 and National Fire Alarm Code are registered trademarks of the National Fire Protection Association (NFPA).
