Summary of Contents for PaperFolder PF-PH-1

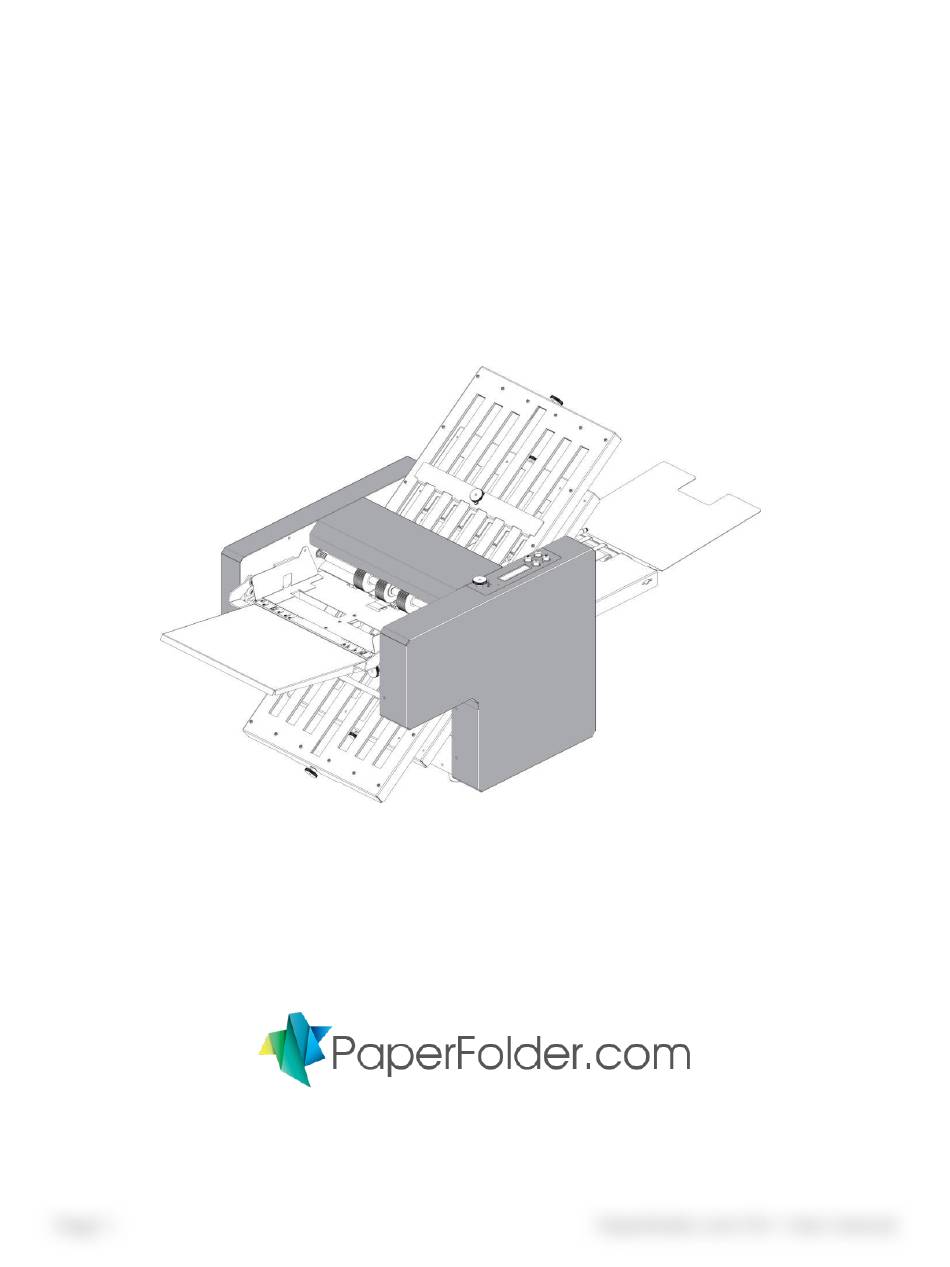

- Page 1 The PaperFolder Co. PF-PH-1 4 Plate Paper Folding Machine Operator Manual 800.520.6008 Page Paperfolder.com PH-1 User manual...
-
Page 2: Table Of Contents
............... 6. Chart of Folds................11 7. The LCD Control Panel ................8. Setting pause intervals................9. Maintenance and cleaning ..............10. Specifications ..................... 11. Troubleshooting ..................12. Cross Fold ..................... 13. Optional Stacker ..................Page Paperfolder.com PH-1 User manual... -
Page 3: Installation
INSTALLATION Unpack machine. Put machine on a table. Open the paper Feed Tray. Make sure it can move up and down to load paper. Open the Cover. Cut plastic tie. Page Paperfolder.com PH-1 User manual... - Page 4 Slide output tray into machine just below rubber rollers. The 2 slots on the end fit on a bar. Lower it with the slots on the bottom on the outer bar. Make sure the gears are aligned on the right side. Page Paperfolder.com PH-1 User manual...
- Page 5 Attach the output wheels. Plug the electrical cord in and switch on. O is Off. –– is On. Page Paperfolder.com PH-1 User manual...
-
Page 6: Fold Plates
If a fold does not work as it should, check that the fold plates are properly installed and on the right posts. THIS IS USUALLY THE PROBLEM IF THE FOLD IS NOT WORKING CORRECTLY OR THE PAPER JAMS. IF THAT HAPPENS, TAKE THEM OUT AND REINSTALL THEM. Page Paperfolder.com PH-1 User manual... -
Page 7: Paper Thickness Adjustment
Skew Adjustment If the paper is not straight side to side, it can be straightened by turning the Skew Adjustment knob. It is located on the right side of the paper Feed Tray. Turning the Page Paperfolder.com PH-1 User manual... - Page 8 To stop creasing, move the side wheels away from the creaser using an Allen wrench to loosen the set screws. If the side wheels are not tight to the creaser. no crease is made. This is shown with the lower 2 creasers. Page Paperfolder.com PH-1 User manual...
-
Page 9: Paper Loading
Pull out the middle knob on each fold plate and move the top of the bar to the position required. This one is set at 7 3/8”. Page Paperfolder.com PH-1 User manual... -
Page 10: Setup The Machine For Folding
THE FOLD PLATE AND GIVE IT A NAME. Felt tip pins work great. Saves time when you need that fold again. OutPut Wheels Adjust the output wheels for the type of fold. In for shorter; out for longer. Page Paperfolder.com PH-1 User manual... -
Page 11: Chart Of Folds
(8.5” x 11”) Letter Closed Closed Closed Closed Double Closed Closed Engineering Closed Closed Gate Closed Closed 4 panel Closed accordion 5 panel accordion Roller Closed Triple Double Closed Single + letter Closed Single + Z Closed Page Paperfolder.com PH-1 User manual... -
Page 12: The Lcd Control Panel
Remedy: Increase the time between each sheet. a. Press the C button. b. Press and hold the Count button until xxxmS appears. Now you can set the pause time. Press the button repeatedly until the counter reads 125mS. Page Paperfolder.com PH-1 User manual... -
Page 13: Maintenance And Cleaning
Both the separator and the feed wheel wear over time and may have to be replaced. If paper is not feeding properly, check the separator under the feed wheel, the setting for the separator and the paper thickness setting and make any necessary adjustments. Page Paperfolder.com PH-1 User manual... -
Page 14: Specifications
The paper feed table has been Lower the paper set lever to raise pressed, the paper feed lowered. the paper feed table. The paper has not been Fan the paper well wheels rotate but no fanned well. paper is fed. Page Paperfolder.com PH-1 User manual... - Page 15 Paper slips in the After a paper type was Check that the fold position is vertical direction. changed, a folding position correct on both fold plates. has not been adjusted. Run one sample, then adjust Page Paperfolder.com PH-1 User manual...
-
Page 16: Cross Fold
8.5" x 5.5" (half of 11"). So the first fold would be set at 5.5". That paper would be reloaded into the output tray for the second fold which would be at 4.25". The final piece would be 5.5" x 4.25". Page Paperfolder.com PH-1 User manual... - Page 17 Why? Because the folded paper cannot be stacked tightly enough to be fed into the machine a second time. The cross fold system feeds one at a time and can. Here is a link to the web page. https://www.paperfolder.com/PF-Cross-Fold-System Page Paperfolder.com PH-1 User manual...
-
Page 18: Optional Stacker
Paper that is folded to a short height does not stack evenly using the conveyor. For uniform output of these types of folds, the optional Stacker is recommended. The stacker takes the place of the output conveyor and tray. It is used to better handle paper folded to small size. Page Paperfolder.com PH-1 User manual... - Page 19 The stacker includes 2 guides that must be set. Loosen the black side knobs, and position the guides vertically as shown. Tighten. Loosen the top knobs and move them close to (but not touching) the 2 green belts. Tighten. Page Paperfolder.com PH-1 User manual...
- Page 20 You may need to modify this by minutely raising or lowering the 2 vertical stops on the top. This should be your result. You can now set the side guides as shown. Do not make them too tight. Page Paperfolder.com PH-1 User manual...
- Page 21 There you can set the machine to stop after every X folds, pause for the time you set, and then continue until the paper runs out. MAINTENANCE OF THE STACKER Periodically clean the moving belts and wipe off the machine with a damp cloth. No other maintenance is required. Page Paperfolder.com PH-1 User manual...
