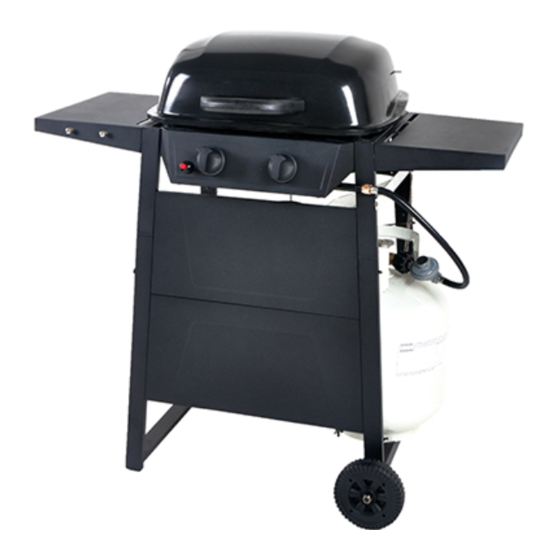

RevoAce GrillBOSS GBC1503 Owner's Manual

RevoAce GrillBOSS GBC1503 Owner's Manual

Outdoor lp gas barbecue grill

Advertisement

Quick Links

Outdoor LP Gas Barbecue Grill
Model No. GBC1503
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Expanded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installing LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
The use and installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1,
or Propane Storage and Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/
NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable .
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION . PLEASE READ AND KEEP
FOR FUTURE REFERENCE .
If you are assembling this unit for someone else, give this manual to them to read and save for future
reference .
California Proposition 65: Combustion by-products produced when using this product contain chemicals
known to the State of California to cause cancer, birth defects, and other reproductive harm .
California Proposition 65: Wash your hands after handling this product .
California Proposition 65: Handling the brass material on this product exposes you to lead, a chemical
known to the State of California to cause cancer, birth defects, or other reproductive harm .
Manufactured in China for: RevoAce, Inc .
8F-1, NO .497, Jhongming S .RD ., West District, Taichung City, Taiwan
1 .800 .694 .0013
© RevoAce, Inc .
GrillBoss(R) is a registered trademark of Blue Rhino Global Sourcing, Inc. Used with permission.
WARNING: This product can expose you to chemicals, including carbon monoxide and
soot which are known to the State of California to cause cancer, birth defects, and
other reproductive harm. For more information go to www.P65Warnings.ca.gov.
OWNER'S MANUAL
Never operate this appliance unattended.
.
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)

Table of Contents

.
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your fire
.
department.
FOR YOUR SAFETY:
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could
cause property damage, personal injury, or
death.
4. This instruction manual contains Important
information necessary for the proper
assembly and safe use of the appliance.
5. Read and follow all warnings and
instructions before assembling and using
the appliance.
6. Follow all warnings and instructions when
using the appliance.
7. Keep this manual for future reference.
.
.
.
GBC1503-E-OM-F103

Advertisement

loading
Need help?

Need help?

Do you have a question about the GrillBOSS GBC1503 and is the answer not in the manual?

Questions and answers

Summary of Contents for RevoAce GrillBOSS GBC1503

  • Page 1: Table Of Contents

    State of California to cause cancer, birth defects, or other reproductive harm . instructions before assembling and using the appliance. Manufactured in China for: RevoAce, Inc . 6. Follow all warnings and instructions when 8F-1, NO .497, Jhongming S .RD ., West District, Taichung City, Taiwan using the appliance.
  • Page 2: Important Safeguards

    Important Safeguards Warning W This grill is for outdoor use only, and should not be used in a building, garage or any other enclosed area. W Do NOT operate, light or use this appliance within ten feet (3.05 m) of walls, structures or buildings. W For residential use only.
  • Page 3 W Use only the regulator and hose assembly provided. Use only the replacement regulator and hose assembly specified by RevoAce, Inc. W Use only RevoAce, Inc. factory-authorized parts. The use of any part that is not factory-authorized can be dangerous and will void your warranty.
  • Page 4: Expanded View & Hardware

    Parts List Expanded View G1503-020 Warming Rack G1203-100 Cooking Grid G1203-110 Handle G1203-010 Heat Plate (2) G1203-120 Top Hinge (2) G1503-030 Bottom Hinge (2) G1503-040 Left Side Shelf G1503-130 Grease Cup B0219-D01 Grease Cup Support B0220-D01 Upper Left Cart Frame G1503-160 Cart Frame Inserts (4) G0900-110...
  • Page 5: Assembly Instructions

    Assembly Instructions DO NOT RETURN TO PLACE OF PURCHASE. Attach Cart Frame Support Wire A For assistance, call 1-800-694-0013 toll-free . Please have your owner’s manual and model number available for reference . Note: The model number is printed on a label which can be found on the inside door, back or side of the cart assembly .
  • Page 6 Attach LP Gas Tank Retainer Wire Attach Front Panels and Rear Cart Frame Supports x 12 Attach Cart Frame Support Wire B Attach Grill Body Assembly...
  • Page 7 Attach Bottom Hinges Attach LP Gas Tank Heat Shield and Lighting Hook Attach Control Knobs Attach Lid Handle and Top Hinges...
  • Page 8 Attach Left Side Shelf Attach Lid Note: Leave 5 mm of bolt threads expose Attach Right Side Shelf Insert Warming Rack Note: Leave 5 mm of bolt threads exposed .
  • Page 9: Installing Lp Gas Tank

    Insert Grease Cup Support and Grease Cup Insert Heat Plates and Cooking Grid Installing LP Gas Tank To operate, you will need one precision-filled standard grill LP gas tank with external valve threads . CAUTION W LP gas tank must be properly disconnected and 20 lb removed prior to moving this grill.
  • Page 10: Operating Instructions

    Operating Instructions Checking for Leaks Figure 1: Main Burners Figure 4 Burner Connections LP Gas Valve LP Gas with Orifice Match Connection Make sure the regulator hose and valve connections are securely fastened to the burner and the tank . Visually check the connection between the burner/venturi tube and orifice .
  • Page 11: Cleaning And Care

    Cleaning and Care NOTICE CAUTION 1. This grill should be thoroughly cleaned and 1. All cleaning and maintenance should be done inspected on a regular basis. when grill is cool and with the fuel supply disconnected. 2. Abrasive cleaners will damage this product. 2.
  • Page 12: Limited Warranty

    Limited Warranty RevoAce, Inc. (“manufacturer”) warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled, maintained, and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in such product shall be free from defects in material and workmanship.
  • Page 13: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Cure Make sure regulator is securely attached to the LP gas tank per “Installing LP LP gas tank valve is closed Gas Tank,” then turn LP gas tank valve to “OPEN” LP gas tank is low or empty Exchange, refill or replace LP gas tank Turn LP gas tank valve to “CLOSED”...
