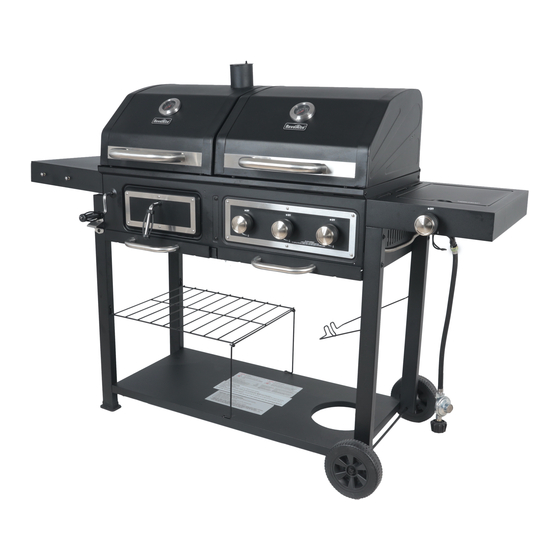

Outdoor LP Gas / Charcoal Barbecue Grill
Model No. GBC1793W
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or
other flammable liquids or vapors in
the vicinity of this or any other
appliance.
2. An LP cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only!
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance, immediately call your
gas supplier or your fire department.
Failure to follow these instructions
could result in fire or explosion
which could cause property damage,
personal injury or death.
OWNER'S MANUAL
(outside any enclosure)
Table of Contents
. . . . . . . . . . . . . . . . . . . .
Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . 9
Installing LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . 16
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . 21
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
The use and installation must conform with local codes or,
in the absence of local codes, with either the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV
Series, Recreational Vehicle Code, as applicable.
This instruction booklet contains important safety
information. Please read and keep for future reference.
If you are assembling this unit for someone else, give
this manual to him or her to read and save for future
reference.
California Proposition 65: Handling the brass material
on this product exposes you to lead, a chemical known
to the State of California to cause cancer, and birth
defects or other reproductive harm. Wash your hands
after handling this product.
WARNING
CALIFONIA PROPOSITION 65
This product can expose you to
chemicals including benzene, which
is known to the State of California to
cause cancer. For more information,
go to www.P65Warnings.ca.gov.
DANGER
Never operate this appliance
unattended.
Manufactured in China for: RevoAce Inc. Limited
Hong Kong, China
1.800.694.0013 • service@revoace.com
8:00 am to 4:00 pm central time, Monday to Friday.
Page 2
GBC1793W-OM-E-F101
Advertisement
Table of Contents
Related Manuals for RevoAce GBC1793W
Summary of Contents for RevoAce GBC1793W
-
Page 1: Table Of Contents
Failure to follow these instructions Manufactured in China for: RevoAce Inc. Limited could result in fire or explosion Hong Kong, China 1.800.694.0013 • service@revoace.com which could cause property damage, 8:00 am to 4:00 pm central time, Monday to Friday. -
Page 2: Important Safeguards
FOR YOUR SAFETY W WARNINGS: 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment. 3. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death. - Page 3 IMPORTANT SAFEGUARDS CSA-B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods; and Commission. W LP gas cylinder must be arranged for vapor withdrawal. W The LP gas cylinder must have a listed overfilling prevention device (OPD). W Only use LP gas cylinders equipped with a cylinder connection device compatible with the connection for outdoor cooking appliances.
- Page 4 W Use only the regulator and hose assembly provided. Use only the replacement regulator and hose assembly specified by RevoAce Inc. Limited W Use only RevoAce Inc. Limited. factory-authorized parts. The use of any part that is not factory-authorized can be dangerous and will void your warranty.
- Page 5 IMPORTANT SAFEGUARDS W Charcoal: Do NOT allow charcoal to rest on the walls of grill. Doing so will greatly reduce the life of the metal and finish of your grill. W Charcoal: Check to make sure the air vents are free of debris and ash before using the grill. W Charcoal: Extinguished coals and ashes should be placed a safe distance from all structures and combustible materials.
-
Page 6: Expanded View & Hardware
Expanded View... - Page 7 Parts List Smoke Stack Top C1460-020 Control Knob (4) G850A-011 Smoke Stack G1490-020 Receiver Tray Support G1490-350 Ash Receiver Tray G1490-360 Lid Handle (2) G1490-030 Grease Receiver Tray G1490-370 Temperature Gauge (2) B0104-R70 Charcoal Lid G1490-050 Tray Handle (2) G1490-380 LP Gas Lid G1490-060 Right Panel...
- Page 8 Hardware Screw 17 pcs M4x10 Nickel Plated Phillips Truss Head Screw 41 pcs M6x15 Nickel Plated Phillips Truss Head Screw 16 pcs M6x35 Nickel Plated Phillips Truss Head Screw 8 pcs M6x65 Nickel Plated Phillips Truss Head Bolt 8 pcs M6x15 Nickel Plated Phillips Hex Head Bolt 2 pcs...
-
Page 9: Assembly Instructions
Assembly Instructions Attach Lid Handles, Temperature Gauges and Top DO NOT RETURN TO PLACE OF PURCHASE. Hinges Please have your Owner’s Manual and model number available for reference. Note: The model number is printed on a label which can be found on the inside door, back or side of the cart assembly. - Page 10 Attach LP Gas Manifold, Regulator/Hose Assembly, Assemble LP Gas Panel, LP Gas Heat Shield and Charcoal Door Handle and Charcoal Door Handle Front Heat Plate Support Support Attach LP Gas Heat Shield Attach Left Panel and Right Panel x 10...
- Page 11 Attach Receiver Tray Support Attach Feet, Legs and Bottle Opener Attach Bottom Shelf Insert Axle and Attach Wheels...
- Page 12 Attach Bottom Rack Attach Bottom Hinges Note: Do not tighten all screw C till step 22 completed. Attach Charcoal Pan...
- Page 13 Attach Charcoal Pan Handle, Side Air Vent and Attach Igniter Wires and Burners Lighting Rod G H B Attach Left Side Shelf and Tool Holders (Hardware Attach Right Side Shelf...
- Page 14 Insert Side Burner, Igniter Wire and Side Burner Attach Side Burner Gas Valve Grid Attach Lids Attach LP Gas Tank Retainer Wire...
- Page 15 Insert Ash Receiver Tray, Grease Receiver Tray Attach Tray Handles and Control Knobs Insert Grease Cup Insert Warming Racks Note: Charcoal warming rack is smaller / Gas warming rack is bigger.
-
Page 16: Installing Lp Gas Tank
Insert Heat Plates and Cooking Grids Note: Charcoal cooking grid Dimension: 204x420mm. Gas cooking grid dimension: 229x420mm. Installing LP Gas Tank To operate, you will need one precision-filled standard grill LP gas tank with external valve threads. CAUTION 20 lb W LP gas tank must be properly disconnected and removed prior to moving this grill. -
Page 17: Operating Instructions
Installing LP Gas Tank (continued) Connecting LP Gas Tank Disconnecting LP Gas Tank Before connecting, be sure there is no debris caught in the head Before disconnecting, make sure the LP gas tank valve is of the LP gas tank, head of the regulator valve or in the head of “CLOSED.”... -
Page 18: Operating Main Burners
Operating Instructions (continued) c. If no bubbles appear after one minute, turn LP gas tank valve to “CLOSED,” wipe away solution and proceed. Operating Main Burners First Use Make sure all labels, packaging and protective films have been removed from the grill. Remove manufacturing oils before cooking on this grill for the first time by operating the grill for at least 15 minutes on (HIGH) with the lid closed. -
Page 19: Operating Side Burner
Operating Instructions (continued) If a grease fire occurs, close the lid AND turn the control knob(s) to “ OFF” until the grease burns out. Be careful when opening the lid as sudden flare-ups may occur. If excessive flare-ups occur, do NOT pour water onto the flames. Minimize Flare-ups: Trim excess fat from meats prior to cooking. -
Page 20: First Use
Operating Instructions (continued) Operating Charcoal Grill W CAUTION: Never use charcoal that has been pre-treated with lighter fluid. Use only a high grade plain charcoal, charcoal/wood mixture, lump charcoal or cooking wood. First Use Make sure all labels, packaging and protective films have been removed from the grill. Remove manufacturing oils before cooking on this grill for the first time, by operating the grill for at least 15 minutes with the lid closed. -
Page 21: Cleaning And Care
Cleaning and Care CAUTION NOTICE 1. All cleaning and maintenance should be done 1. This grill should be thoroughly cleaned and when grill is cool and with the fuel supply inspected on a regular basis. disconnected. 2. Abrasive cleaners will damage this product. 2. - Page 22 Cleaning and Care (continued) Lift burner up and away from gas valve orifice. Clean venturi of burner with small bottle brush or compressed air. Remove all food residue and dirt from burner surface. Clean any clogged ports with a stiff wire (such as an opened paper clip). 10.
-
Page 23: Limited Warranty
Limited Warranty RevoAce Inc. Limited (“RA”) warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled, maintained, and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year for all remaining parts from the date of purchase, all parts in such product shall be free from defects in material and workmanship. -
Page 24: Troubleshooting
Troubleshooting Problem Possible Cause Prevention/Cure Make sure regulator is securely attached to the LP gas tank per LP gas tank valve is closed “Installing LP Gas Tank,” then turn LP gas tank valve to “OPEN” LP gas tank is low or empty Exchange, refill or replace LP gas tank Turn LP gas tank valve to “CLOSED”... - Page 25 Troubleshooting (Continued) Problem Possible Cause Prevention/Cure High or gusting winds Do not use grill in high winds Low on LP Gas Exchange, refill or replace LP gas tank Flame goes out Overfilling prevention device may have been Refer to “Sudden drop in gas flow or reduced flame height” (see above) activated Grease buildup Remove and clean all grill parts per “Cleaning and Care”...
