RevoAce GBT1754W Owner's Manual

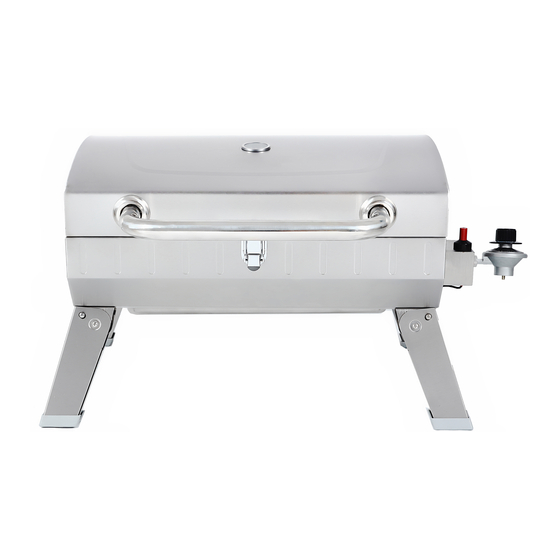

Outdoor lp gas barbecue grill
Hide thumbs

Advertisement

Quick Links

Download this manual

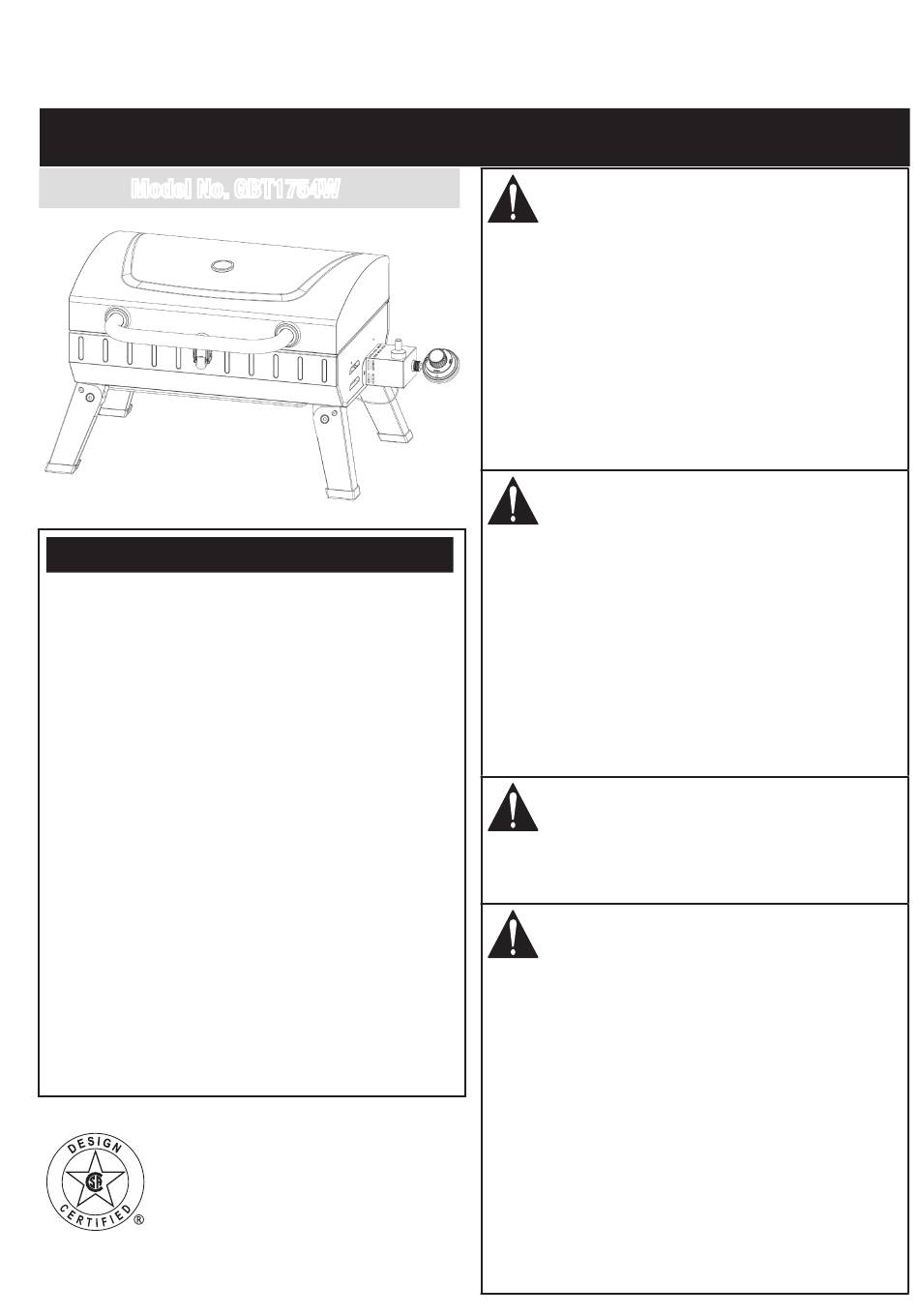

Outdoor LP Gas Barbecue Grill
Model No. GBT1754W

Table of Contents

. . . . . . . . . . . . . . . . . . . .
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . 13
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
The use and installation must conform with local
codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2, or the
Standard for Recreational Vehicles, ANSI A 119.2/NFPA
1192, and CSA Z240 RV Series, Recreational Vehicle
Code, as applicable .
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION . PLEASE READ AND KEEP FOR
FUTURE REFERENCE .
If you are assembling this unit for someone else, give
this manual to him or her to read and save for future
reference .
Manufactured in China for: RevoAce Inc . Limited
Hong Kong, China
1 .800 .694 .0013 • service@revoace .com
9:00 am to 5:00 pm eastern time, Monday to Friday .
OWNER'S MANUAL
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or
other flammable liquids or vapors in
the vicinity of this or any other
appliance.
2. An LP cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
Do not leave this appliance
unattended, especially cooking the
fatty meat and close lid too long time.
Page 2
Failure to follow the dangers,
warnings and cautions in this manual
may result in serious bodily injury
or death, or in a fire or an explosion
causing damage to property.
FOR YOUR SAFETY:
For Outdoor Use Only!
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
GBT1754W-OM-E-F101
WARNING
DANGER
WARNING
DANGER
the appliance and immediately
call your fire department. Failure
to follow these instructions could
result in fire or explosion which
could cause property damage,
personal injury or death.
(outside any enclosure)
