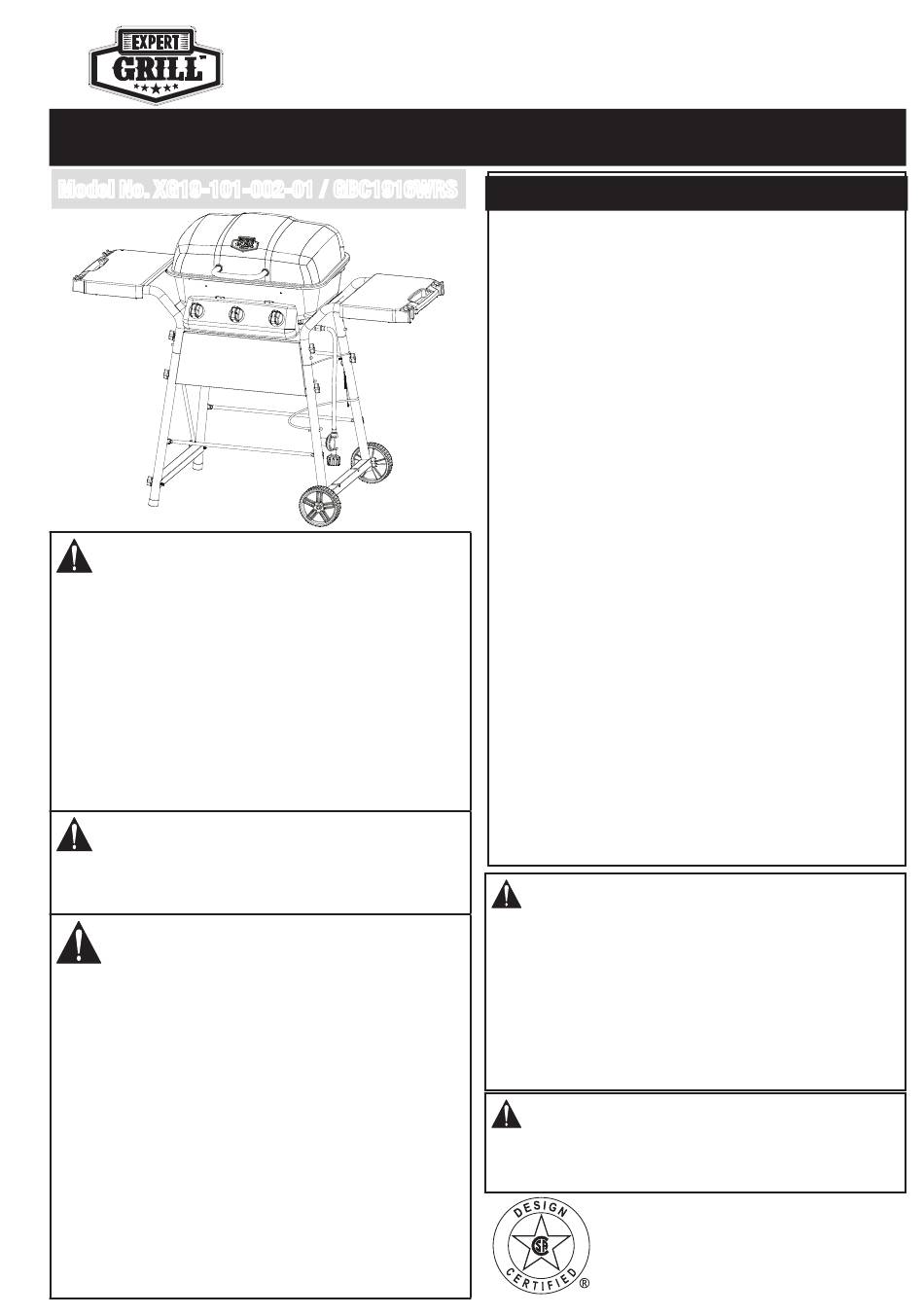

Outdoor LP Gas Barbecue Grill
Model No. XG19-101-002-01 / GBC1916WRS
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or
other flammable liquids or vapors in
the vicinity of this or any other
appliance.
2. An LP cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only!
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance, immediately call your
gas supplier or your fire department.
Failure to follow these instructions
could result in fire or explosion
which could cause property damage,
personal injury or death.
OWNER'S MANUAL
(outside any enclosure)
Table of Contents
. . . . . . . . . . . . . . . . . . . .
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . 11
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
The use and installation must conform with local
codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2, or the
Standard for Recreational Vehicles, ANSI A 119.2/NFPA
1192, and CSA Z240 RV Series, Recreational Vehicle
Code, as applicable .
This instruction booklet contains important safety
information . Please read and keep for future reference .
If you are assembling this unit for someone else, give
this manual to him or her to read and save for future
reference .
California Proposition 65: Handling the brass material
on this product exposes you to lead, a chemical known
to the State of California to cause cancer, and birth
defects or other reproductive harm . Wash your hands
after handling this product .
WARNING
CALIFONIA PROPOSITION 65
This product can expose you to
chemicals including benzene, which
is known to the State of California to
cause cancer. For more information,
go to www.P65Warnings.ca.gov.
DANGER
Never operate this appliance
unattended.
Manufactured in China for: RevoAce Inc . Limited
Hong Kong, China
1 .800 .694 .0013 • service@revoace .com
8:00 am to 4:00 pm central time, Monday to Friday .
Page 2
.
GBC1916W-OM-E-F100
Advertisement
Related Manuals for RevoAce EXPERT GRILL XG19-101-002-01
Summary of Contents for RevoAce EXPERT GRILL XG19-101-002-01
-
Page 1: Table Of Contents
Failure to follow these instructions could result in fire or explosion Manufactured in China for: RevoAce Inc . Limited Hong Kong, China which could cause property damage, 1 .800 .694 .0013 • service@revoace .com personal injury or death. -
Page 2: Important Safeguards
FOR YOUR SAFETY W WARNINGS: 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment. 3. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death. - Page 3 IMPORTANT SAFEGUARDS W Never use an LP gas cylinder with a damaged body, valve, collar or footing. W Dented or rusted LP gas cylinders may be hazardous and should be checked by your LP gas supplier prior to use. W The LP gas cylinder should not be dropped or handled roughly. W LP gas cylinders must be stored outdoors out of the reach of children and must not be stored in a building, garage or any other enclosed area.
- Page 4 IMPORTANT SAFEGUARDS W It is essential to keep the grill’s valve compartment, burners and circulating air passages clean. W Inspect grill before each use. W Do NOT alter grill in any manner. Any alteration will void your warranty. W Do NOT use the grill unless it is COMPLETELY assembled and all parts are securely fastened and tightened. W Do NOT build this model of grill in any built-in or slide-in construction.
-
Page 5: Limited Warranty
W Deaths, serious injury or damage to property may occur if the above is not followed exactly. Limited Warranty RevoAce Inc . Limited (“RA”) warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled, maintained, and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year for all remaining parts from the date of purchase, all parts in such product shall be free from defects in material and workmanship . -
Page 6: Expanded View & Hardware
Expanded View... - Page 7 Parts List Handle G1916-010 LP Gas Tank Retainer Wire G1716-100 G1716-010 Black Front Panel G1716-110 Lid* G1716-020 Red Upper Cart Frame (2) G1716-130 Brand Plate* B0109-LBD Cart Frame Support A - G1816-180 Heat Plate (3) G1716-080 Longer Top Hinge (2)* G1916-020 Cart Frame Support B G1716-120...
-
Page 8: Assembly Instructions
Assembly Instructions Assemble Cart Frames and Side Shelves DO NOT RETURN TO PLACE OF PURCHASE. Please have your owner’s manual and model number available for reference . Note: The model number is printed on a label which can be found on the inside door, back or side of the cart assembly . Assembly Tips: 1 . - Page 9 Attach Front Panel and Cart Frame Support A - Attach Cart Frame Support B & Cart Frame Longer Support C - Shorter Attach LP Gas Tank Retainer Wire, LP Gas Tank Attach Grill Body Assembly Blocking Wire, Axle and Wheels Note: Match up with the firebowl holes and upper cart frame holes first .
- Page 10 Attach Hanlde, Heat Shield and Control Knobs Insert Warming Rack Note: Attach the warming rack end per 4 sequence . Insert Heat Plates and Cooking Grid Insert Grease Cup Fully Tighten All Hardwares...
-
Page 11: Installing Lp Gas Tank
Operating Instructions To operate, you will need one precision-filled standard grill LP gas tank with external valve threads . CAUTION 20 lb W LP gas tank must be properly disconnected and removed prior to moving this grill. 9 Kg 12.2 in. / 31 cm Inserting LP Gas Tank Securing LP Gas Tank Place precision-filled LP gas tank upright into the notches in the right... - Page 12 Operating Instructions Figure 1 Checking for Leaks Burner Connections Make sure the regulator hose and valve connections are securely fastened to the burner and the tank . Visually check the connection between the burner/venturi tube and orifice . Make sure the burner/venturi tube fits over the orifice . W WARNING: Failure to inspect this connection or follow these instructions could cause a fire or an explosion which can cause death, serious bodily injury or damage to property.
-
Page 13: Cleaning And Care
Operating Instructions (Continued) W CAUTION: If burner flame goes out during operation, immediately turn the control knobs to the “ OFF” position, LP gas tank valve “CLOSED” and open lid to let the gas clear for 5 minutes before re-lighting. Turning Off Turn LP gas tank valve to “CLOSED .”... - Page 14 Cleaning and Care (Continued) Cleaning Surfaces Figure 6 Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water . Burner Flame Conditions For stubborn surfaces, use a citrus-based degreaser and a nylon scrubbing brush . Use this chart to see if your burners Rinse clean with water .
-
Page 15: Troubleshooting
Troubleshooting Problem Possible Cause Prevention/Cure • Make sure regulator is securely attached to the LP gas tank • LP gas tank valve is closed per “Installing LP Gas Tank,” then turn LP gas tank valve to “OPEN” • LP gas tank is low or empty •... - Page 16 Troubleshooting • Remove and clean all grill parts per “Cleaning and Care” • Grease buildup section Flare-up • Excess fat in meat • Trim fat from meat before grilling • Excessive cooking temperature • Adjust to lower cooking temperature • Turn control knobs to “ OFF” •...
